TSSK Parallel Twin Screw Extruder pelletizing line

This Co-rotation Parallel Twin-Screw Extruder pelletizing line can be extensively used in many fields,such as polymer blending,homogeneity,plasticization,filling modification and granulation,engineering polymer and glass fiber reinforcement, master batch, functional parent granule,special material,power coating material and cable material reactive extrusion, degassing and devolatilization, etc.
The twin screw extruder with good physical properties,dispersibility,stability,and does not affect the precision of the processing machine screw.This kind of masterbatch can be widely used in PE,PP,PS,ABS and other plastic products, such as:PE plastic bags,injection molding,extrusion and other products,especially environmentally friendly plastic products that can be incinerated,so as to achieve cost reduction purpose.

Application Field:
1. Biodegradable material: PE/PLA/PBAT+starch/additives etc.;
2. Thick masterbatch: PE, ABS, PS, PP+ pigment, additives;
3. Flame retardant masterbatch: PP, PA, ABS+ flame retardant, additives, etc.;
4. Filling modification: PE/EVA+ CaCO3, talc powder,TiO2,carbon black, etc.;
5. Enhanced modification: PP,PA,PBT, ABS, AS, PC, POM, PPS, PET +glass fiber, carbon fiber;
6. Blending alloy: PC+ABS, PA+ABS, CPE+ABS, PP+EPDM, PA+EPDM, PP+SBS etc.;
7. Cable material: PVC、PE、low smoke and halogen free etc.;
8. Engineering plastics: ABS、PEEK、PC etc.;
9. Thermoplastic elastomer:TPU、TPE etc.;
10. Color masterbatch: PE, ABS, PS, EVA, PET, PP+pigment, auxiliaries;
11. Flame retardant color mother: PP, PA, ABS, EVA, PBT+flame retardant.

Technical Parameters

Model TSSK-50 TSSK-65 TSSK-75 TSSK-95
Screw Diameter(mm) 50.5 63 75 95
Main motor Power(KW) 37/45 55/75 110/140 240
L/D 32-48 32-48 32-48 32-40
Capacity(kg/h) 50-200 150-375 200-600 800-1000

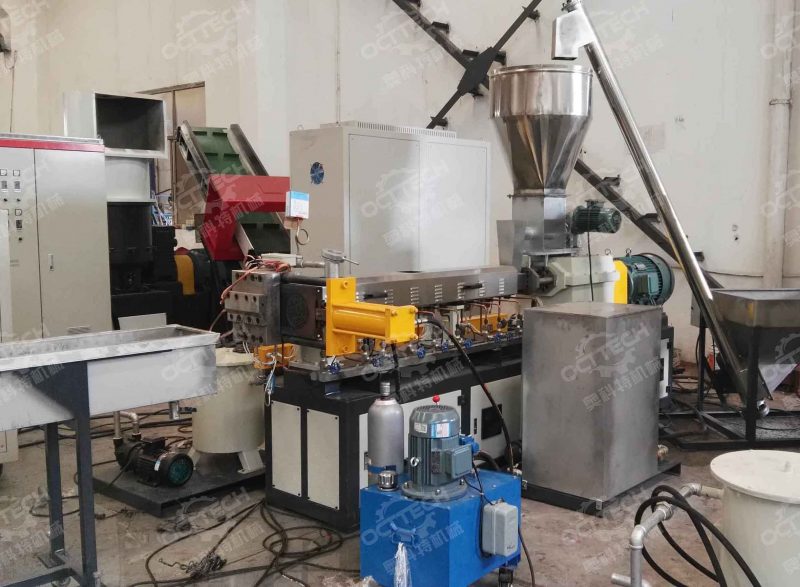

TSSK Parallel Twin-Screw Extruder pelletizing line Working Flow

Screw loader→Parallel Twin-Screw Extruder→Hydraulic filter→Mould→Water tank→Blower dryer →Pelletizing system→Blower→Storage silo→Electric control cabinet

TSSK Parallel Twin-Screw Extruder pelletizing line Detail

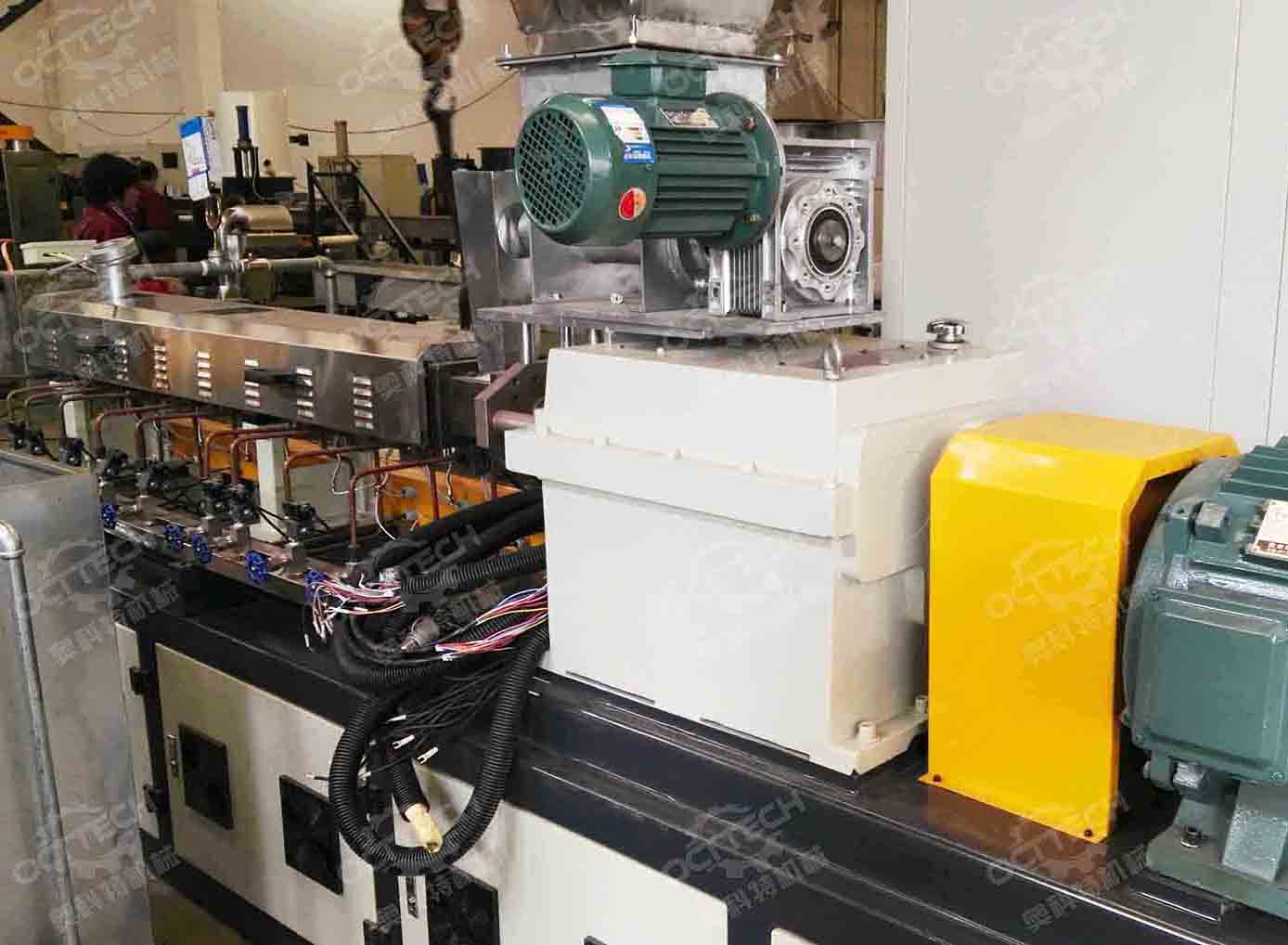

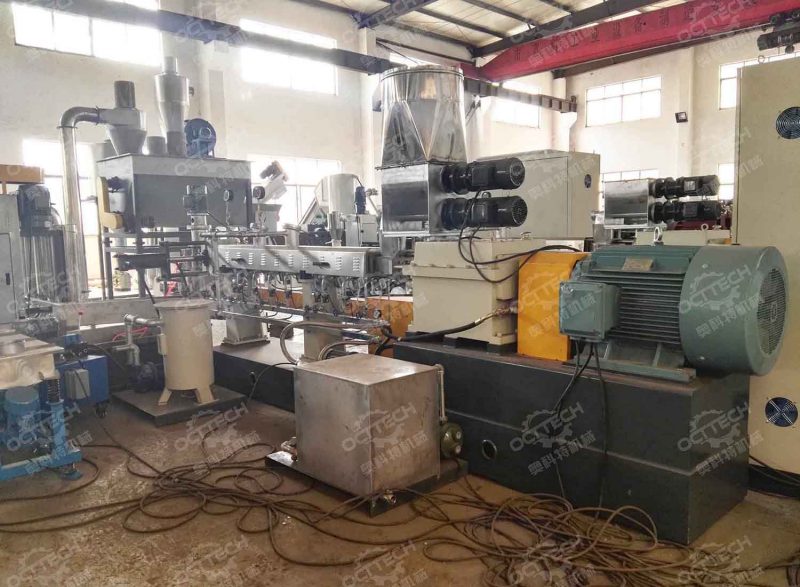

PARALLEL TWIN SCREW EXTRUDER
New designed gear box and transmission system for high torque
Screw design: parallel double-screw
Automatic temperature control
Non-pollution

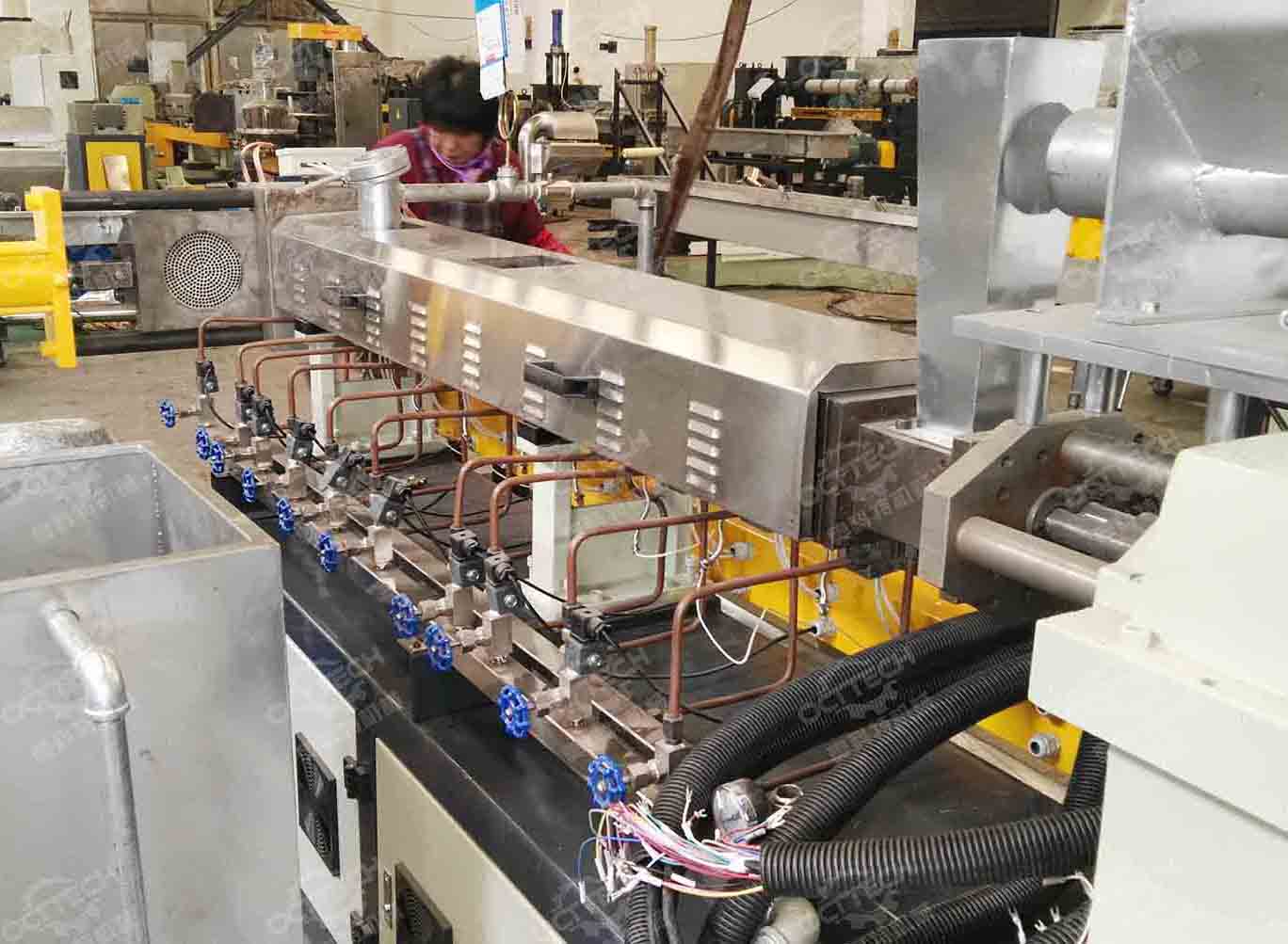

SOFT WATER COOLING SYSTEM
Material of input and output pipes is stainless steel.
Manual valves to adjust flowing rate of cooling water; solenoid valves are to control opening and closing of cooling water flowing in.

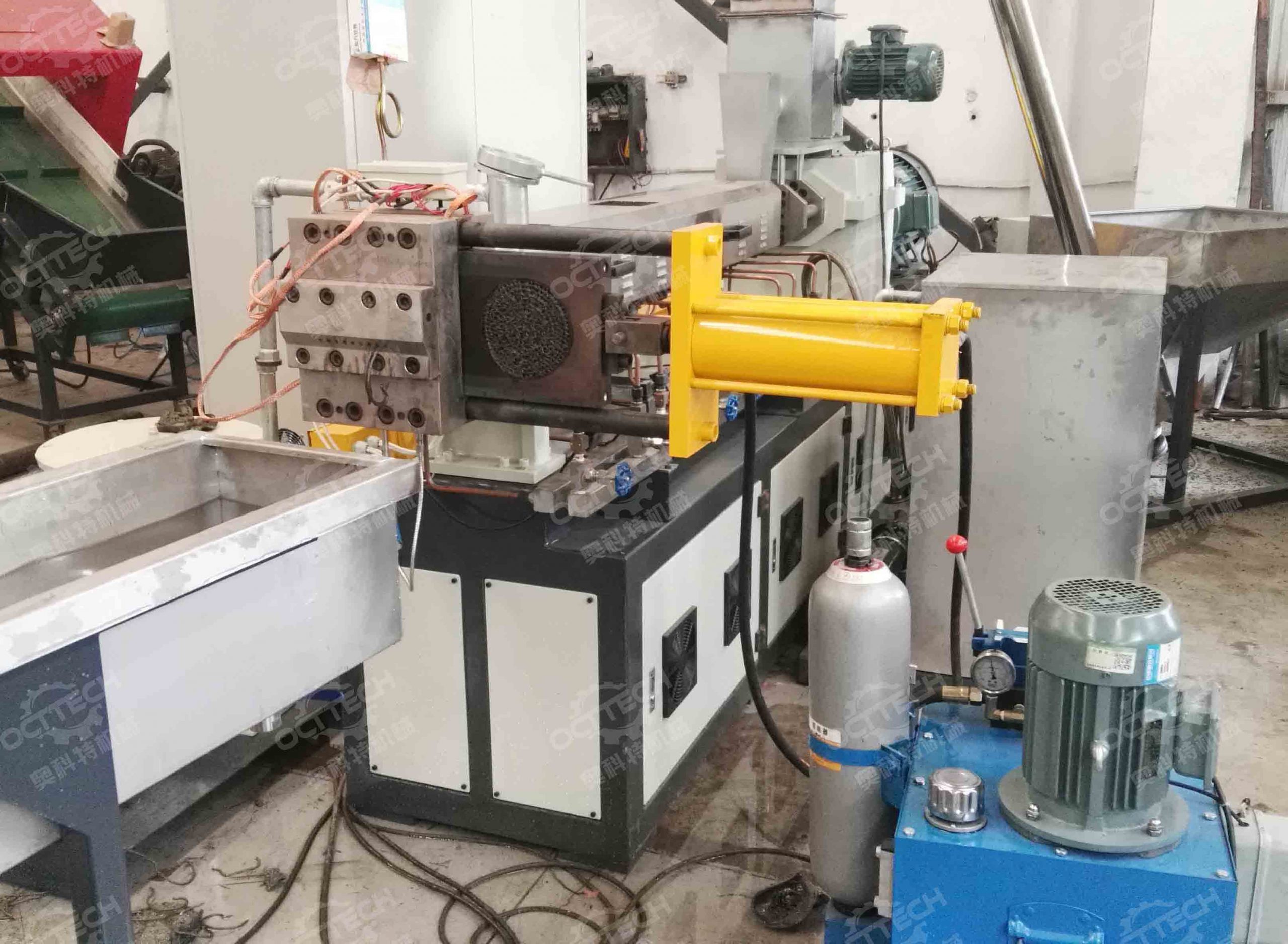

HYDRAULIC FILTER & MOULD
Non-stop change screen, time≤1 second
screen change and die head material is 40Cr.
Melt filter pump can be optional.

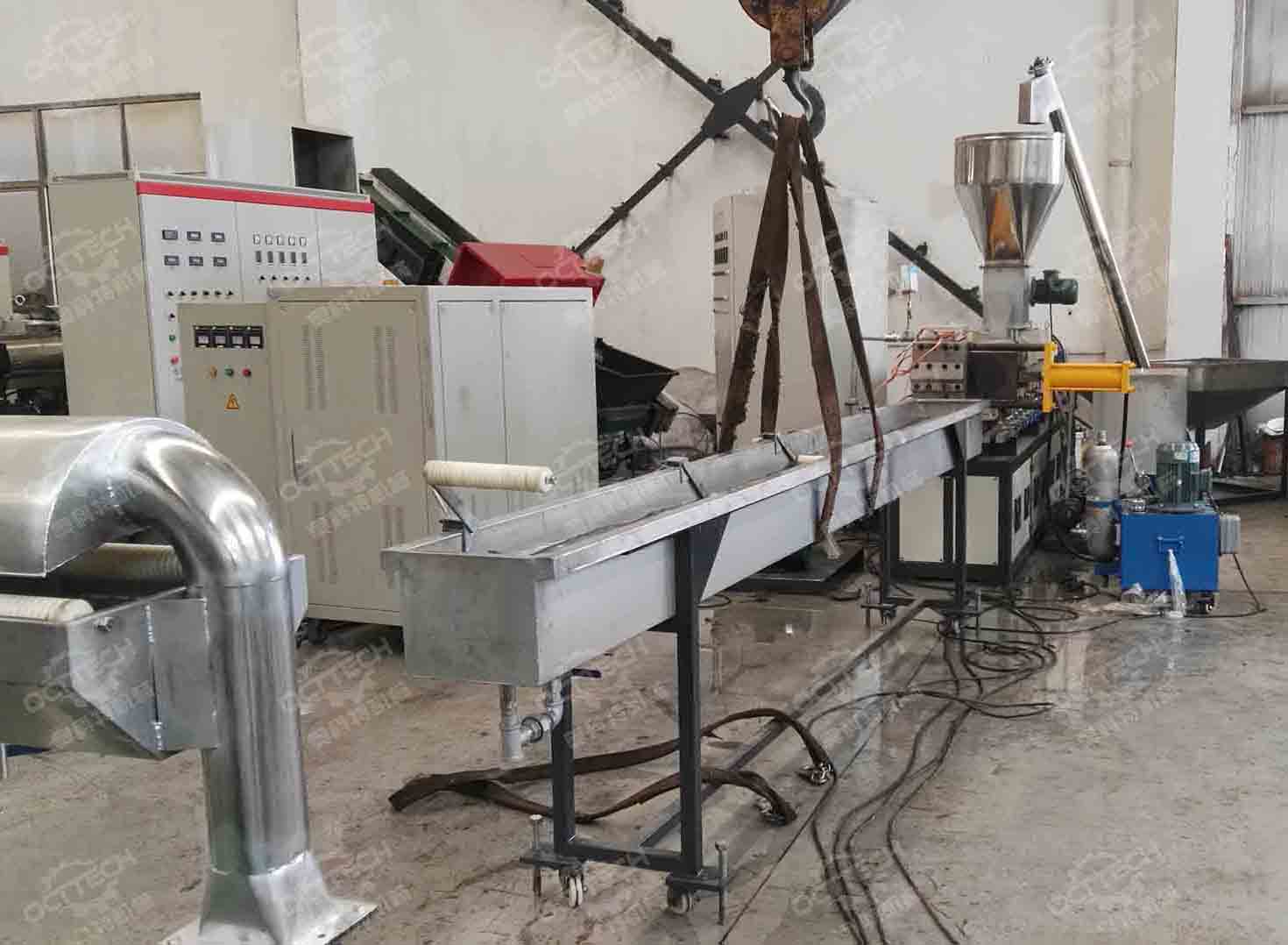

WATER COOLING TANK
Length:5m
Material:Stainless steel

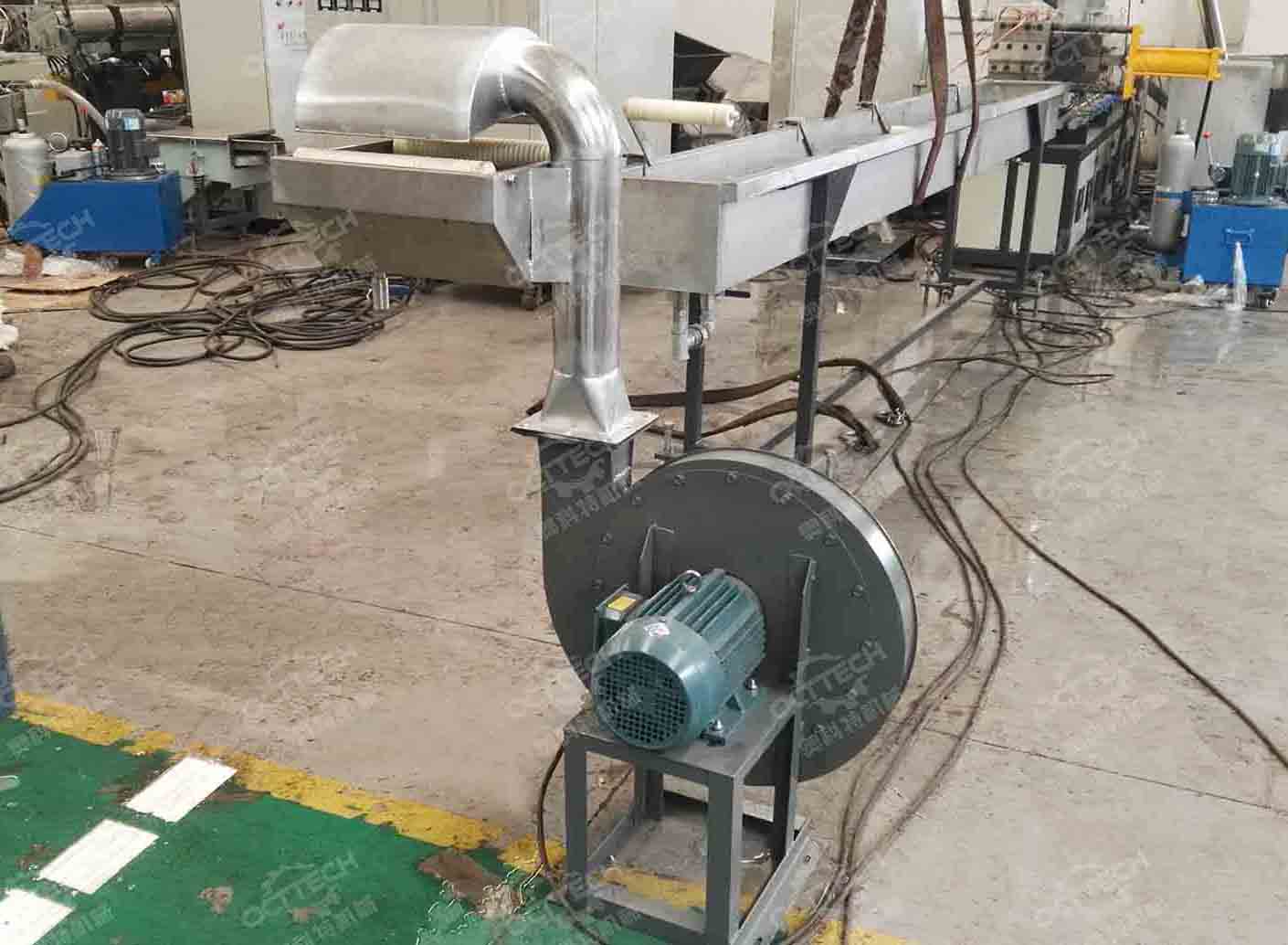

AIR BLOWER DRYER
Air blade and pipe material is stainless steel.

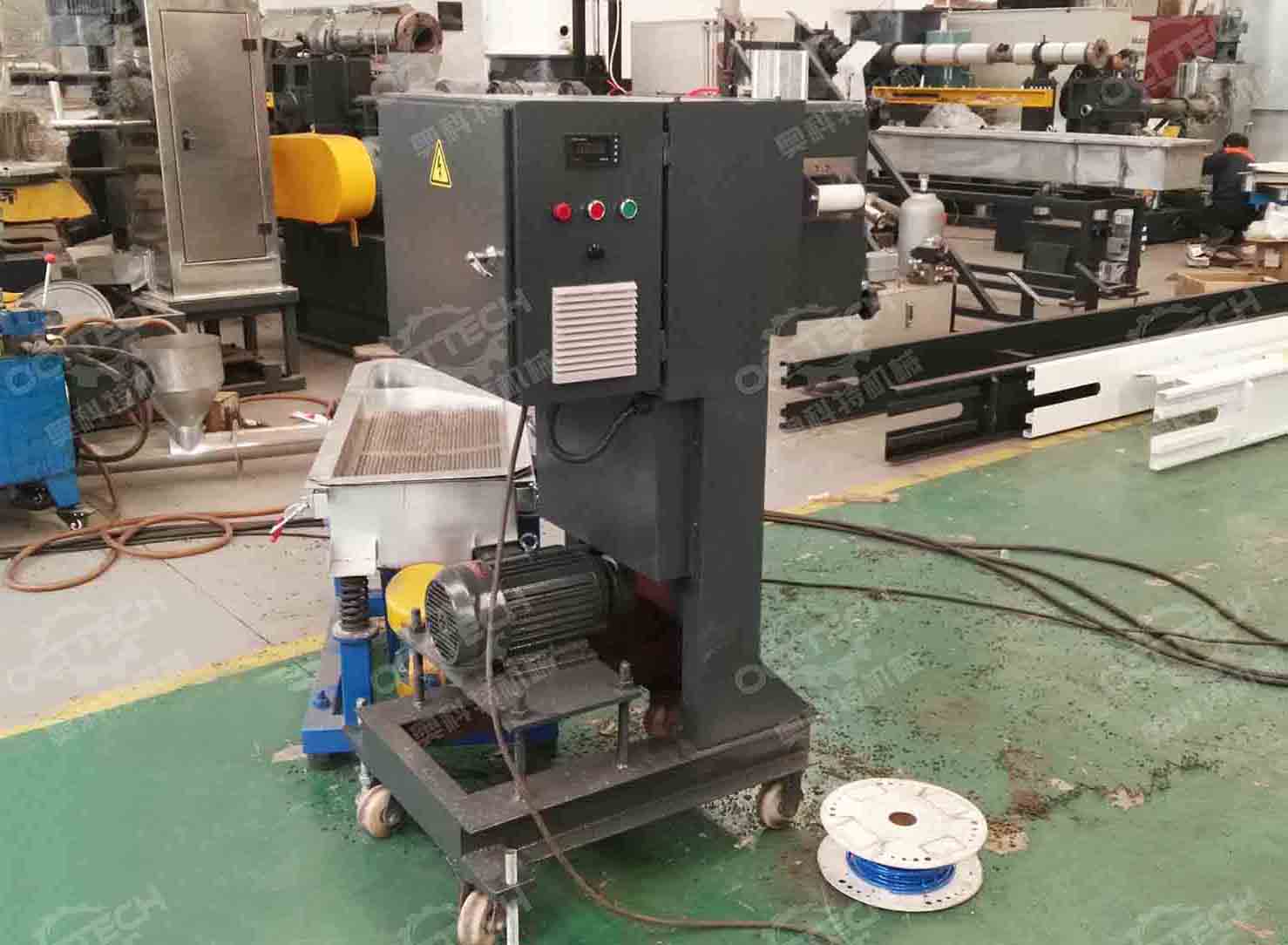

PELLETIZING MACHINE
Cantilever cutter
Strip diameter:2-4mm
Cutting length:3-5mm
Speed control method:frequency control

BLOWER AND STROAGE SILO
Blower remove the moisture further and send granules to the silo.
Silo Made of SUS304 stainless steel

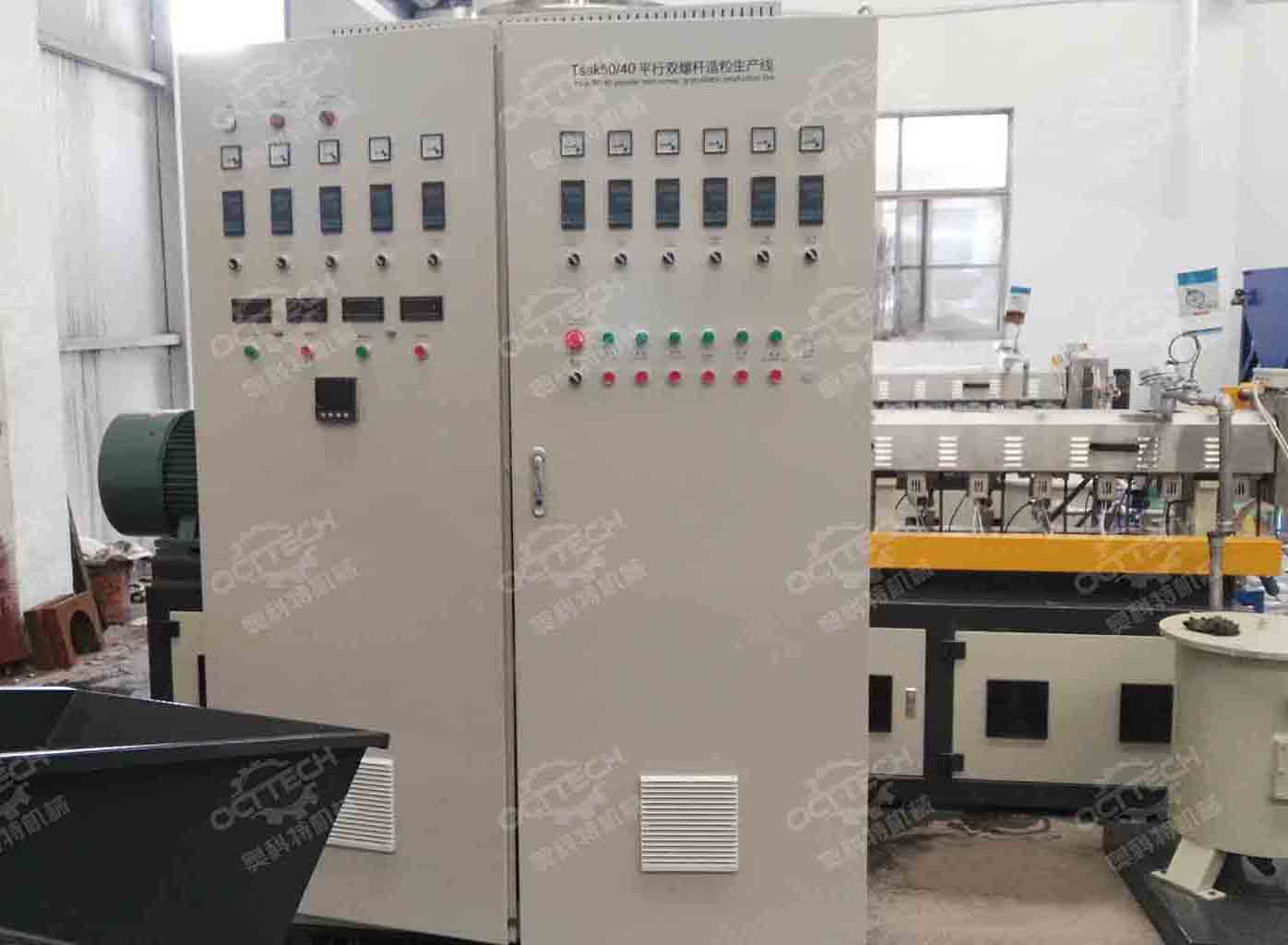

Control cabinet
For electrical controlling of the entire system.
Safety interlock principle.
All electrical units: Schneider, ABB,Omron

service advantage

professional installation

Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.

Quick response

The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.

user training

Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
