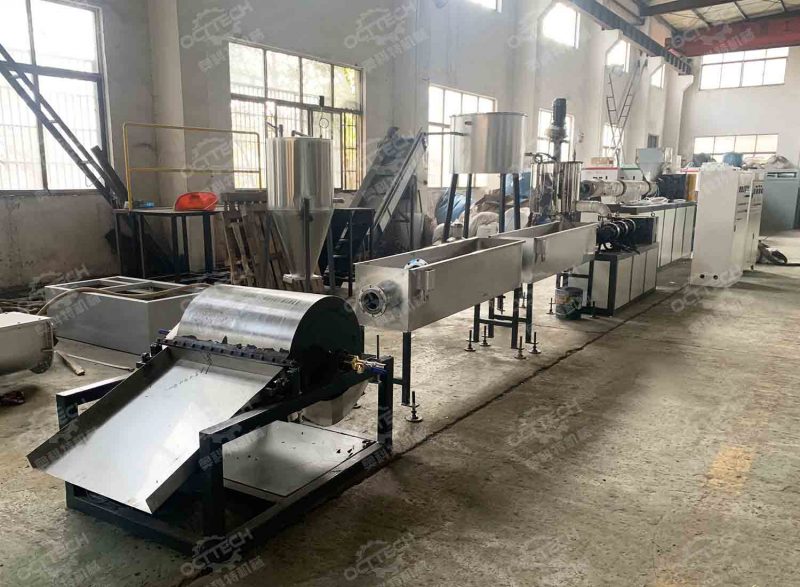

The PE wax flakes extrusion machine

The PE wax extruder machine for flake is for extruding PE wax from PE waste like waste pe wires,pe films,pe sheets,board etc.The PE wax extruder unit can get a very high temperature and melt the waste pe meterial entirely into PE liquid.Finally, the PE wax can making PE granules.
It is a kind of PE waste recycling machine

Application of PE wax:
1.As dispersing agent in the master-batch processing.
2.As external lubricant on the processing of PVC profile/pipe fittings/plastic molding. Can improve the plastic toughness, make products smooth surface, faster and higher degree of plasticizing, ensure high pass rate.
3.As dispersant in ink/paint, good anti-settling effect, the prints products has good glossy and three dimensional.
4.For variety of hot melt production.
5.Widely used in floor wax,car wax,polish,wax candles and other products,increase the softening point of the wax,increase wax products strength/surface gloss.

Technical Parameters

Model SJ-120 SJ-140 SJ-160 SJ-180
Main extruder screw Dia. 120 140 160 180
Capacity(kg/h) 100-120 200-250 300-350 400-500
Main motor power (kw) 37 55 55 75

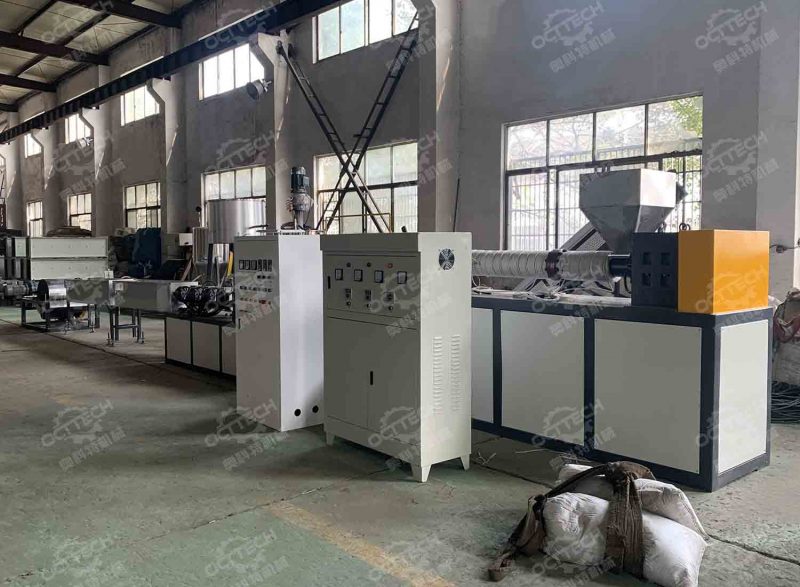

The PE wax flakes extrusion machine Working Flow

Main extruder machine → Accumulator → Water tank → Flaker → Control cabinet

The PE wax flakes extrusion machine Detail

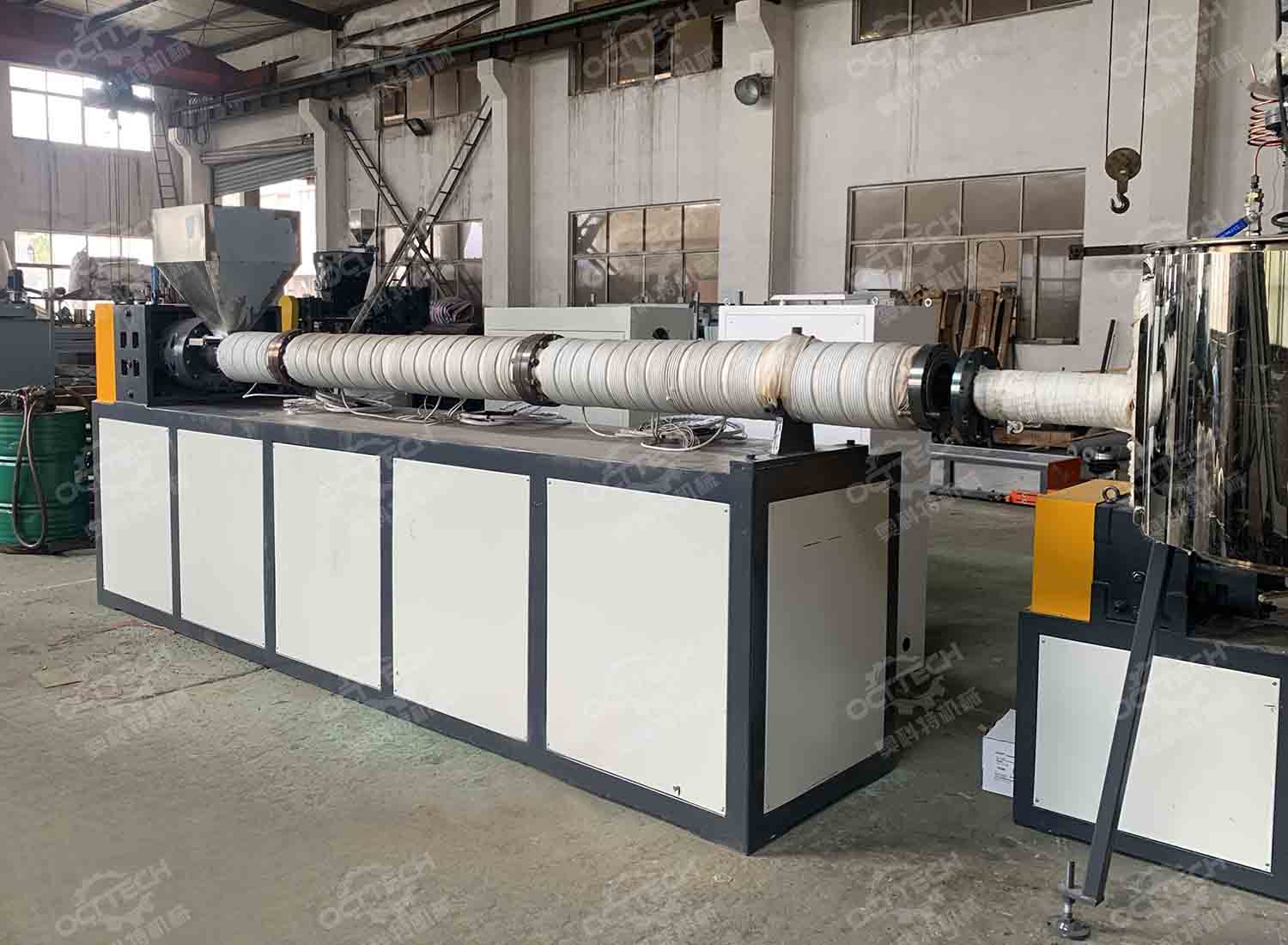

MAIN EXTRUDER
Material of screw and machine barrel: 38CrMoALA
Heating method:Electromagnetism heater

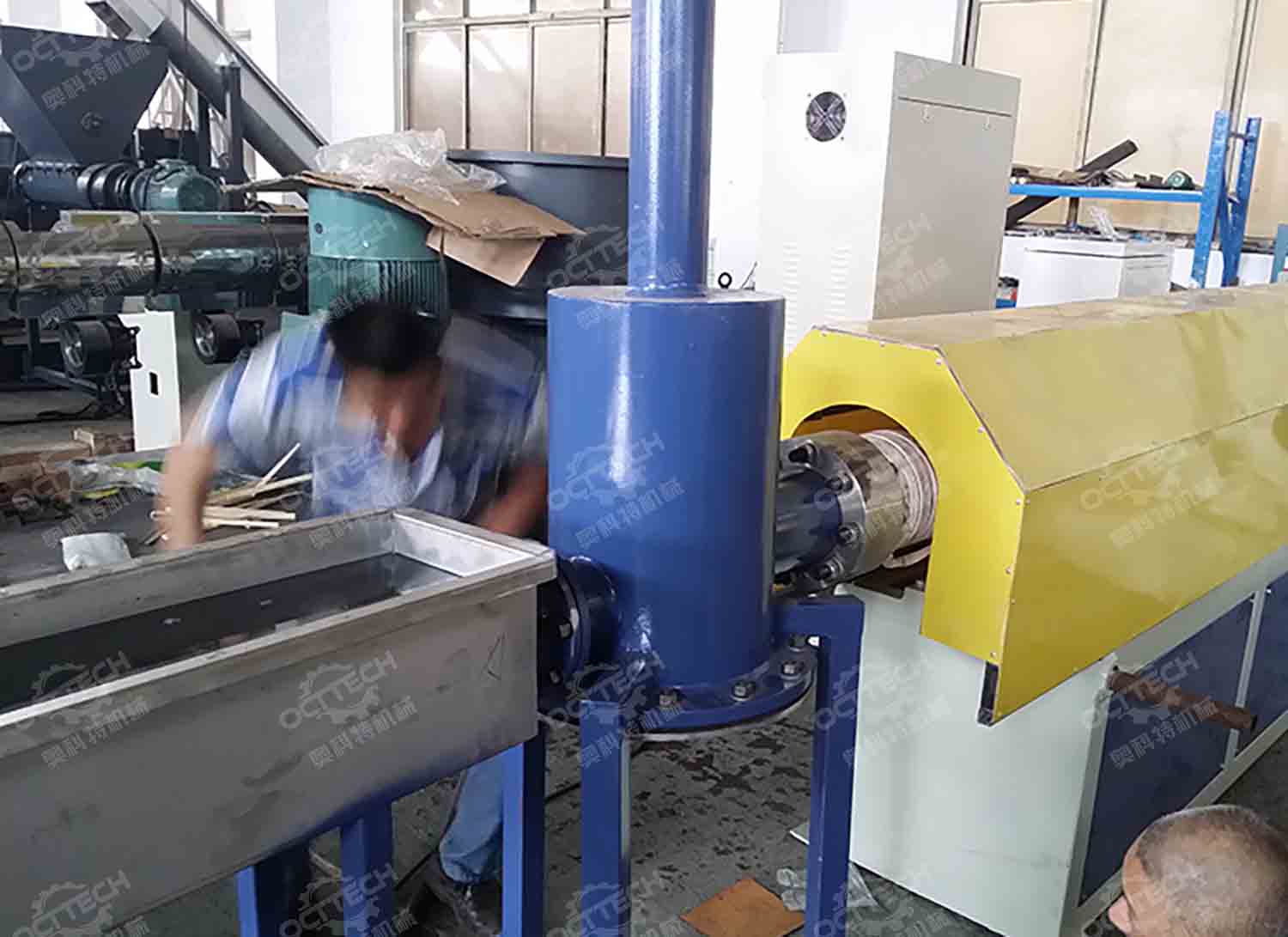

LAMPBLACK SEPARATION BARRELS
Diameter:350mm

Stainless steel (double-deck)
Nitrogen Filled Feed

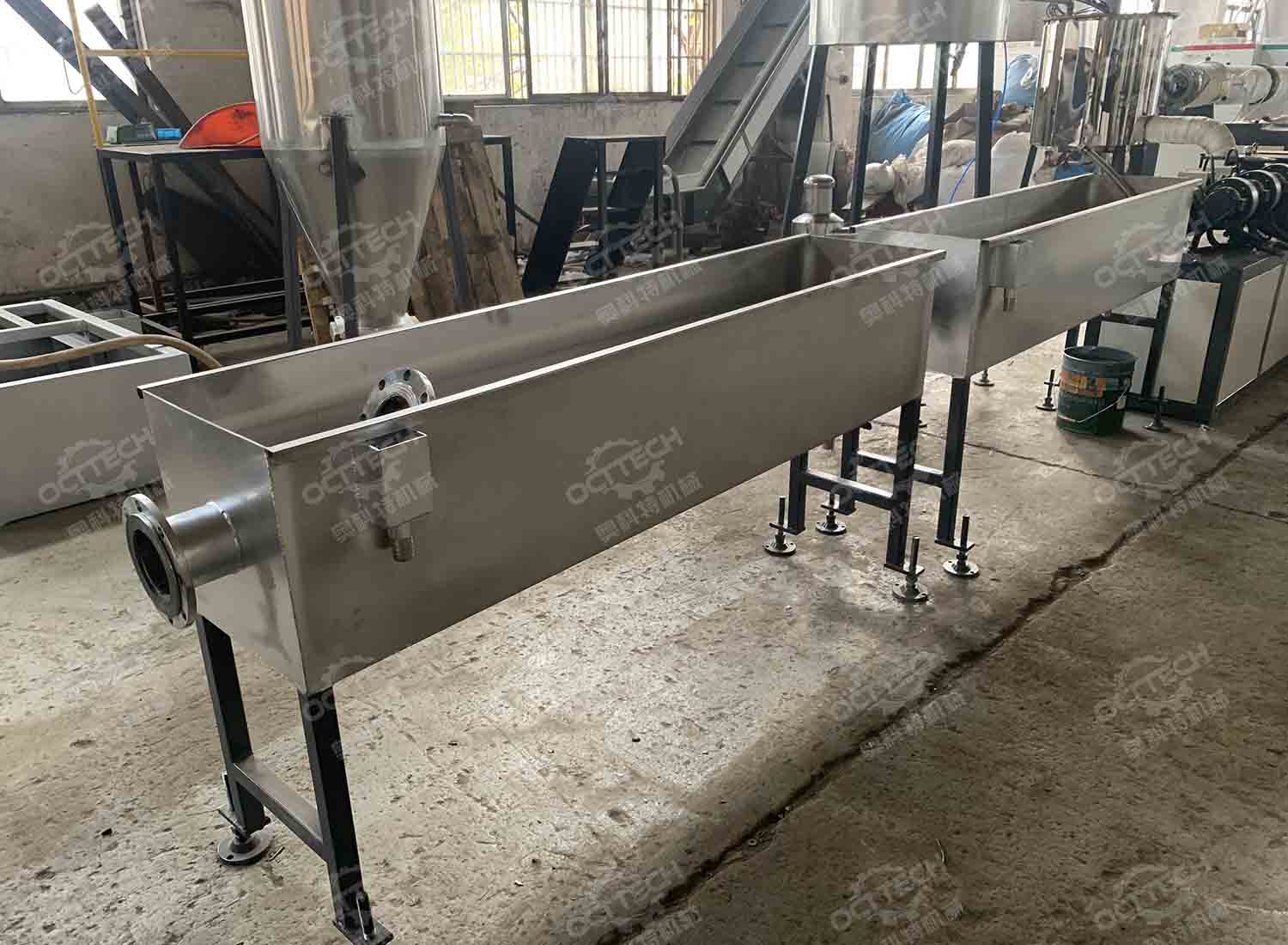

WATER COOLING TANK
Length:8m
Material :SUS304 stainless steel

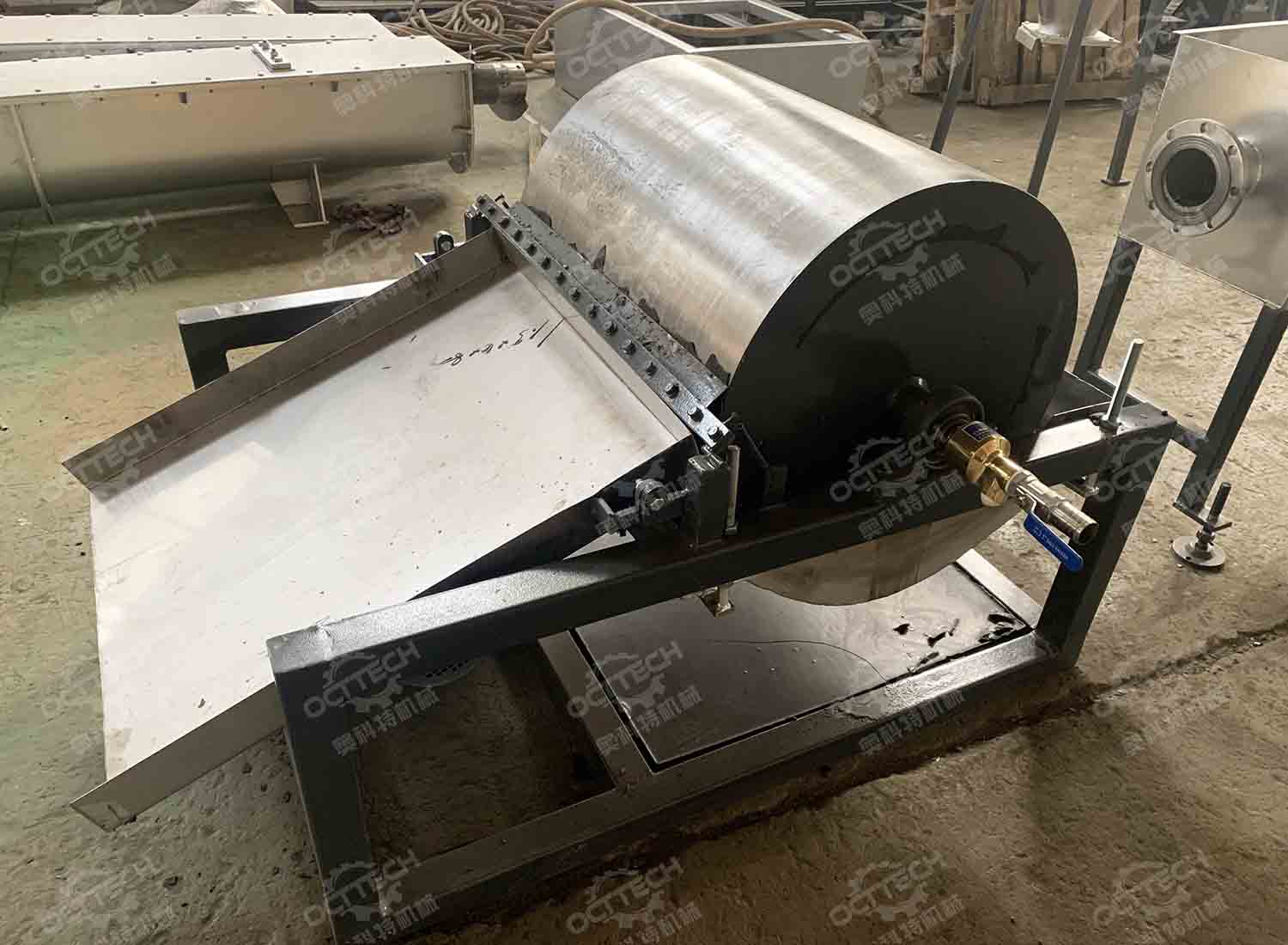

FLAKER
Motor power:2.2kw
Diameter:800mm
Length:1000mm

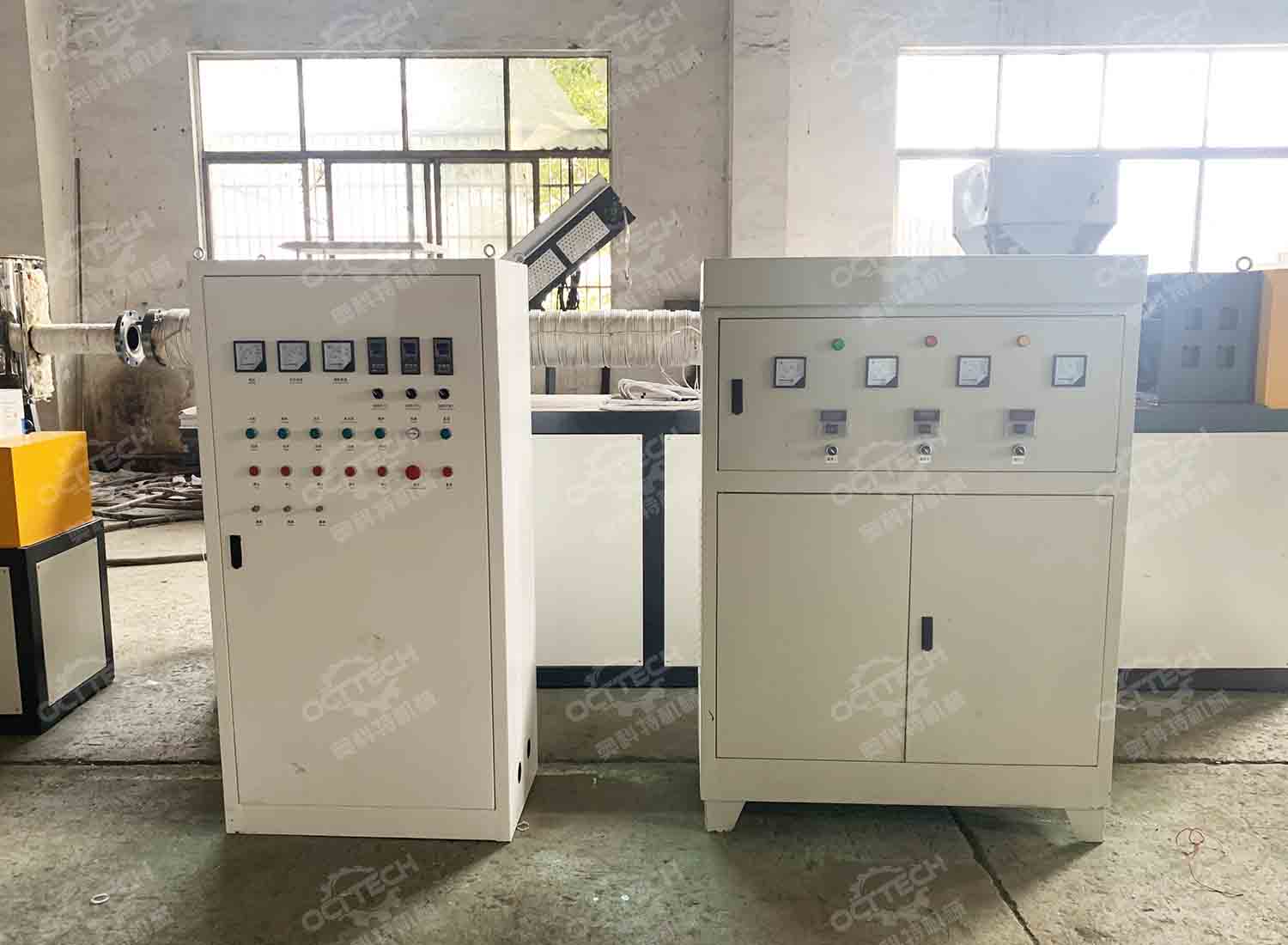

ELECTRIC CONTROL CABINET
Main low voltage electric:Schneicer
Temperature controller:Omron

FINAL PE WAX FLAKES
PE wax flakes after machine

service advantage

professional installation

Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.

Quick response

The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.

user training

Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.

excellent product
