SRL Serial high speed mixer unit
SRL Serial high speed mixer unit is mainly used to mix,stir,dry and color for plastic material,rubber,pharmacy,dye,food and commodity industries.
This unit puts the hot mixer and cold mixer together making the mixed hot material enter into the cooling mixer automatically and exhaust the left gas in the material in case the material agglomeration.
Technical Parameters
| Model | SRL-Z100/200 Hot/Cold mixing |
SRL-Z200/500 Hot/Cold mixing |
SRL-Z300/600 Hot/Cold mixing |
SRL-Z500/1000 Hot/Cold mixing |
SRL-Z800/1600 Hot/Cold mixing |
|---|---|---|---|---|---|
| Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective volume(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
| Stirring speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
| Heating/Cooling | Electric heating self-friction/water cooling | ||||
| Mixing time(min) | 8-12 | 8-12 | 8-12 | 8-12 | 8-15 |
| Motor power(KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
| Overall dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 4600*3000*4050 | 5170*3200*4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
| Model | SRL-W500/1600 Hot/Cold mixing |
SRL-W800/2000 Hot/Cold mixing |
SRL-W800/2500 Hot/Cold mixing |
SRL-W800*2/4000 Hot/Cold mixing |
SRL-W1000/2500 Hot/Cold mixing |
|---|---|---|---|---|---|
| Total volume(L) | 500/1600 | 800/2000 | 800/2500 | 1600/4000 | 1000/2500 |
| Effective volume(L) | 330/1000 | 560/1400 | 600/1500 | 1120/2700 | 700/1750 |
| Stirring speed(r/min) | 430/860/70 | 330/660/55 | 330/660/60 | 350/700/65 | 350/700/50 |
| Heating/Cooling | Electric heating self-friction/water cooling | ||||
| Mixing time(min) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Motor power(KW) | 47/67/15 | 60/90/18.5 | 83/110/22 | 83/110*2/45 | 83/110/22 |
| Discharge method | Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic |

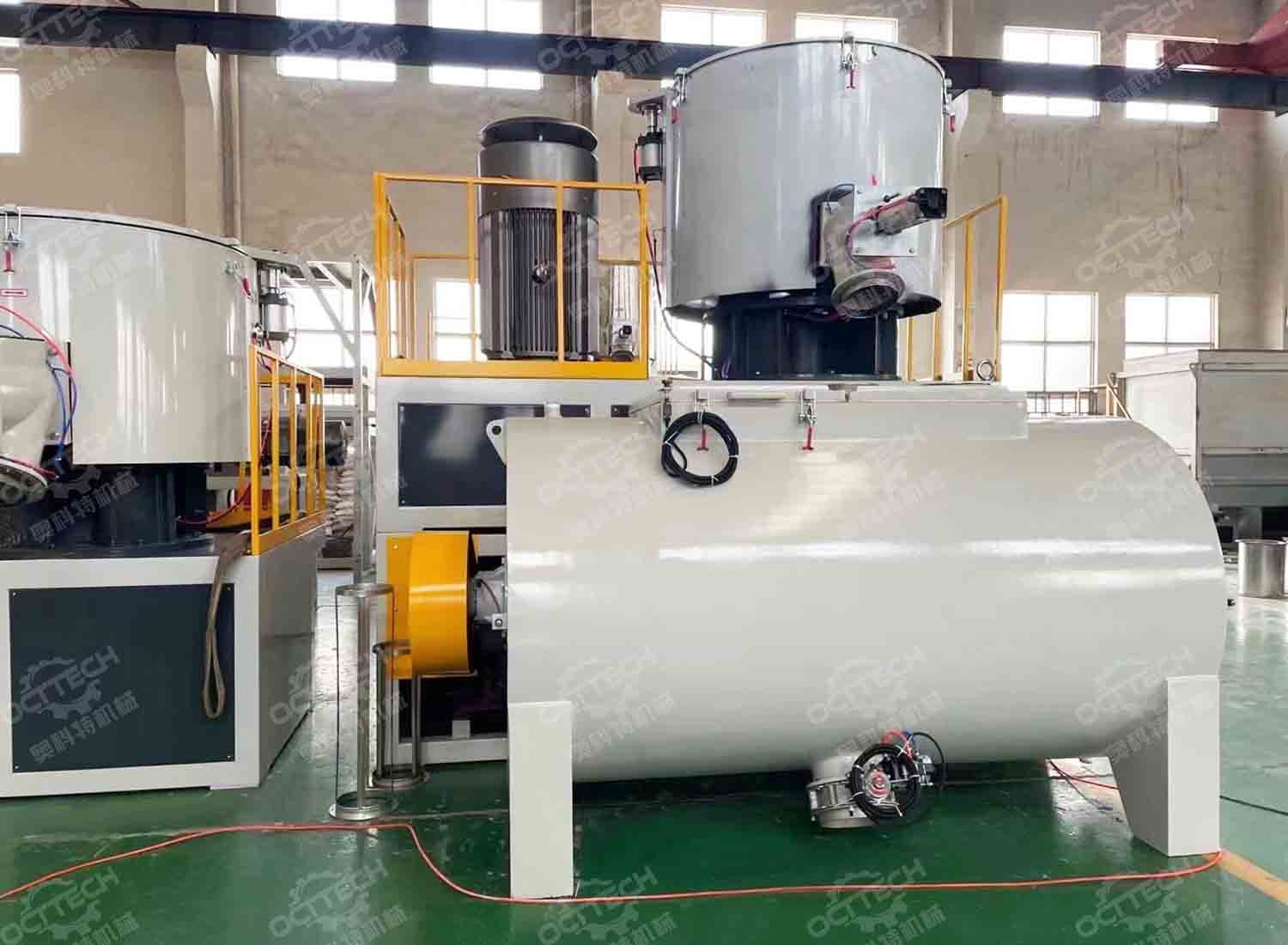

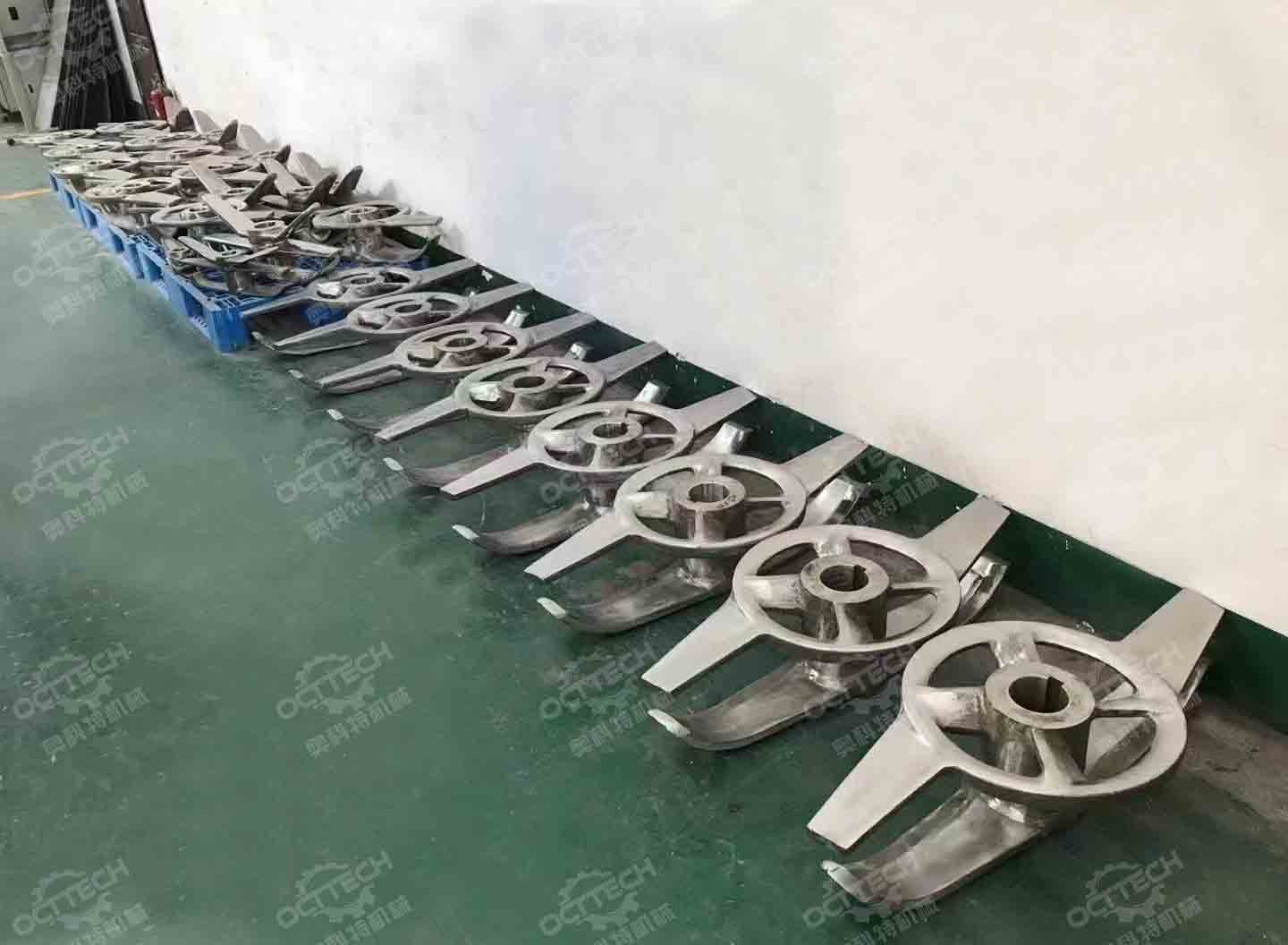

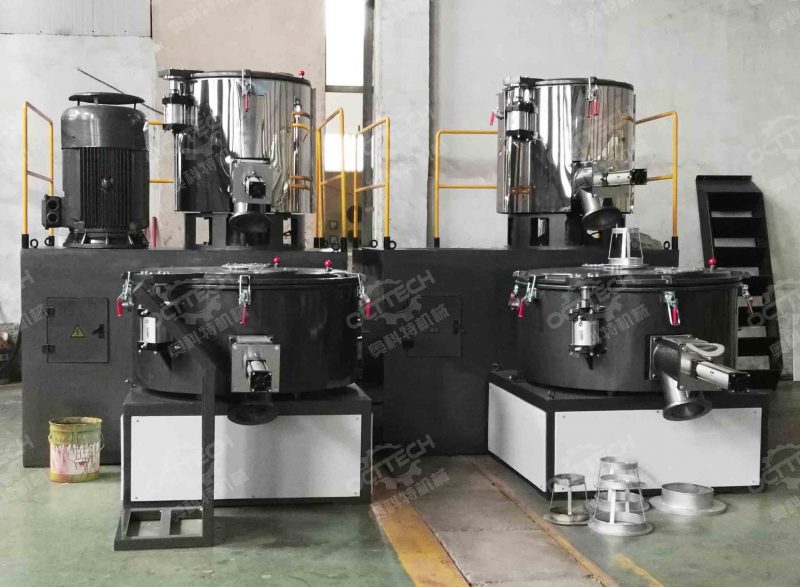

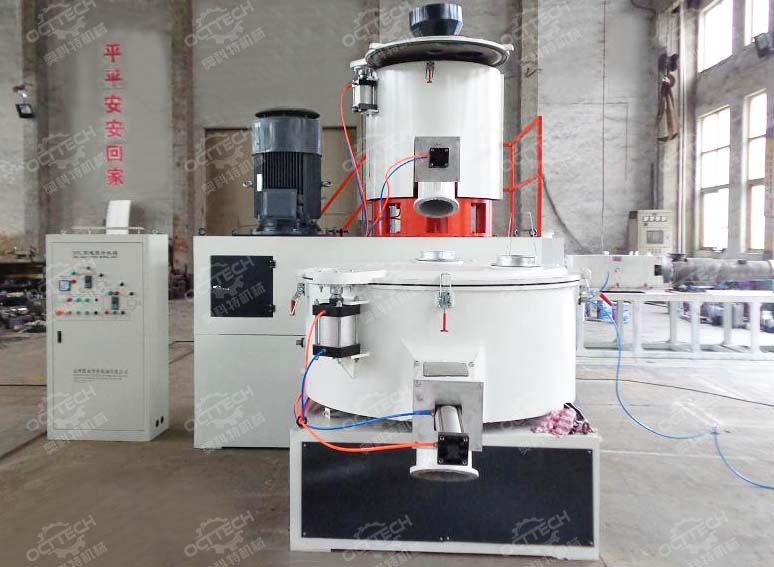

More machine photos
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
