SJZ series conical twin screw extruder machine
SJZ series twin conical screw extruder is a kind of special equipment for extruding PVC powder.With different sorts of molds and auxiliary machines,it can produce all sorts of PVC plastic pipe material,profiled material,board material,sheet material,bar material and granulation.
Technical Parameters
| Model | SJZ45 | SJZ51 | SJZ55 | SJZ65 | SJZ80 | SJZ92 |
|---|---|---|---|---|---|---|
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 110 |
| Capacity(kg/h) | 60 | 100 | 120 | 250 | 400 | 500-600 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 |
| Net weight(kg) | 2800 | 3000 | 3500 | 4000 | 5000 | 10000 |
| Dimension(m) | 3.3*1.2*2.1 | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.7*2.4 | 7*1.6*2.5 |

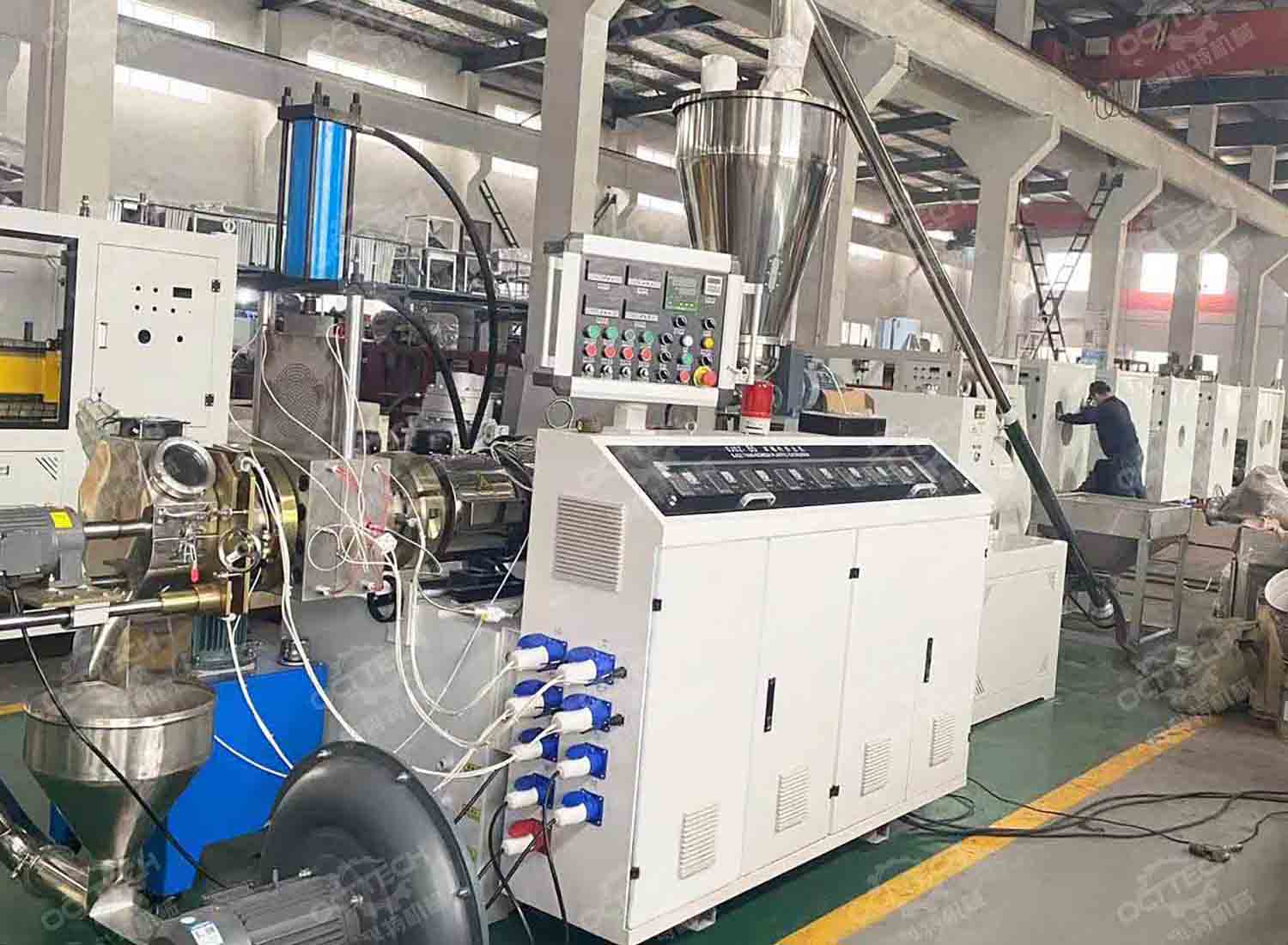

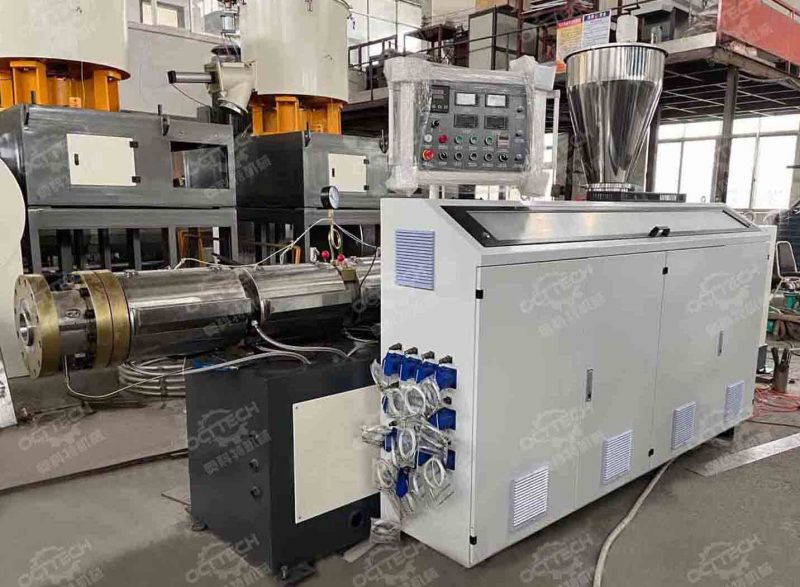

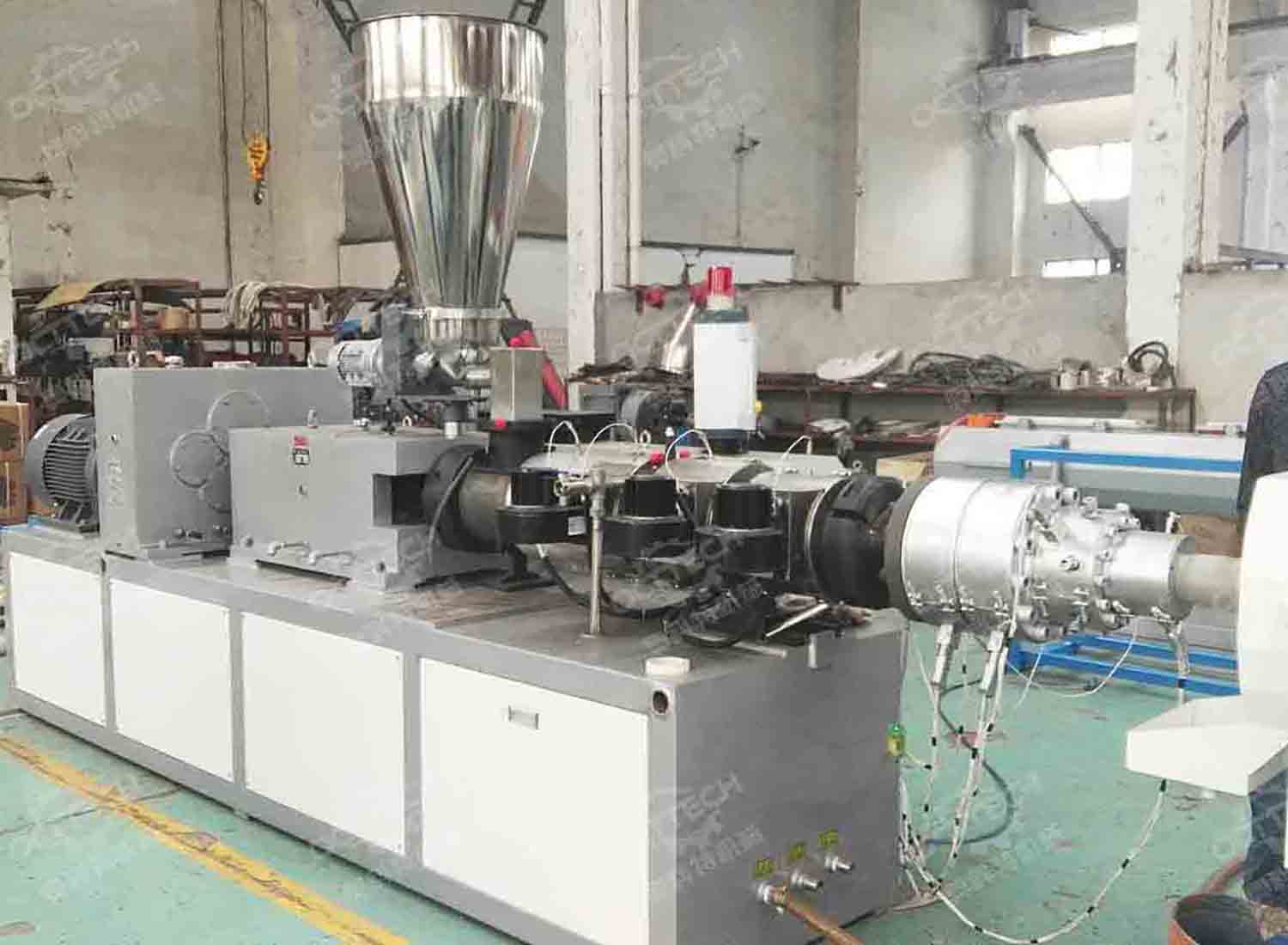

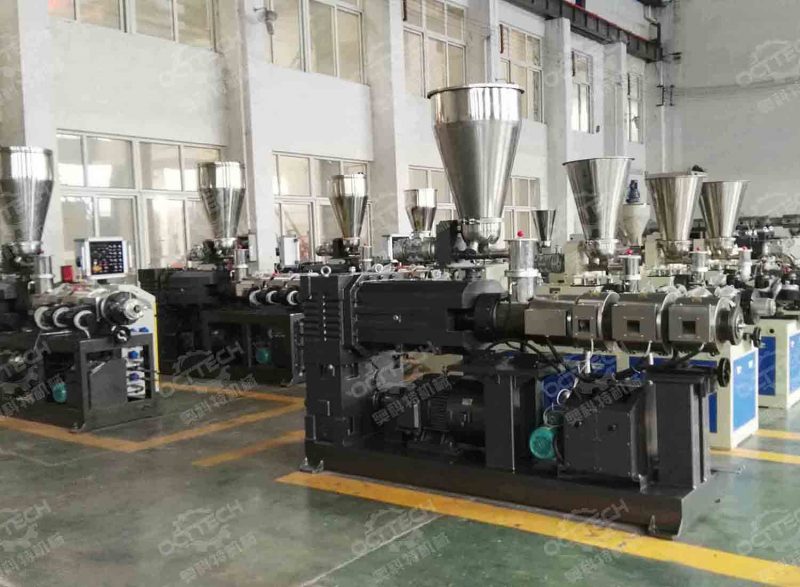

More machine photos
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
excellent product
