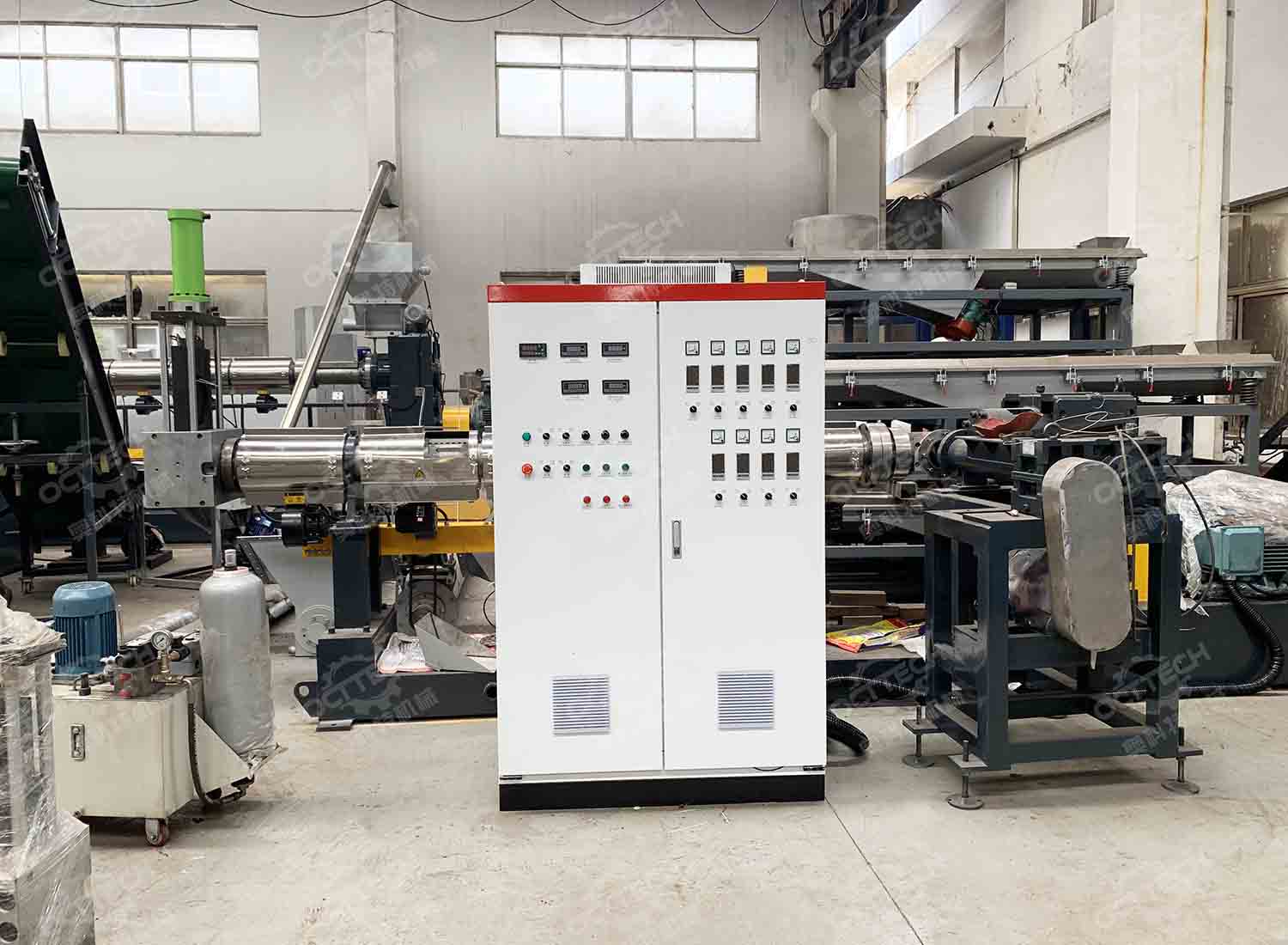

SJ Single stage pelletizer line
The SJ series pelletizer line is a specialized and reliable system for recycling and pelletizing the film bags flakes or rigid plastic scraps.It is an efficiency and continuous system that makes rigid plastics or soft flakes,such as PP/PE/ABS/PS/PA flakes,crushed plastics into granules with melting,plasticization,vacuum degassing and filtration and pelletizing.The machine adopts natural degassing or vaccum degassing adopting for moisture.Pelletizing method:water-ring cutting or pulls strand cutting.
Application:
1.HDPE LDPE LLDPE film bags flakes,PP woven bags flakes
2.PE,PP bucket,bottles,milk bottles flakes,pipe flakes
3.EPS,PS,ABS,PA rigid flakes
Technical Parameters
| Model | SJ85 | SJ100 | SJ120 | SJ150 | SJ180 |
|---|---|---|---|---|---|
| Screw Diameter(mm) | 85 | 100 | 120 | 130 | 180 |
| L/D | 25-33 | 25-33 | 25-33 | 25-33 | 25-33 |
| Capacity(kg/h) | 80-100 | 100-150 | 250-300 | 450-500 | 800-1000 |
| Cutting Method | Water ring cutting or Strand Cutting | ||||
| Note | The capacity is based on the raw material.The output for rigid flake and film flake are different. | ||||
SJ single stage pelletizer line Working Flow
Side force feeder→Main extruder→Hydraulic filtration→Pelletizing system→Dewatering machine→Vibration screen→Air blower system→Storage Silo→Electric cabinet control system
SJ single stage pelletizer machine Detail
Plastic flakes conveyed into the hopper by the screw loader or belt conveyor for optional

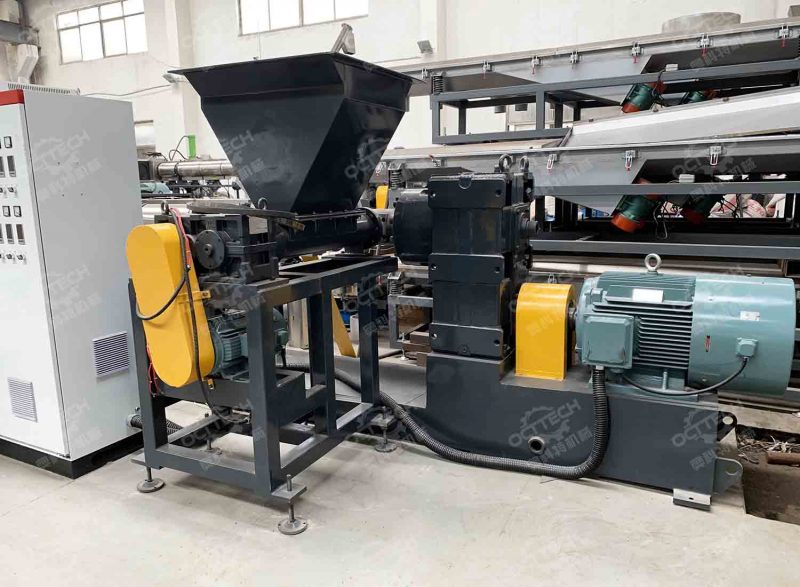

Extrusion part include high torque gear-box,motor,screw&barrel,degassing system;
Degassing system:Natural degassing or vacuum degassing for option.
Special design (no-stopping screen change, no leak);

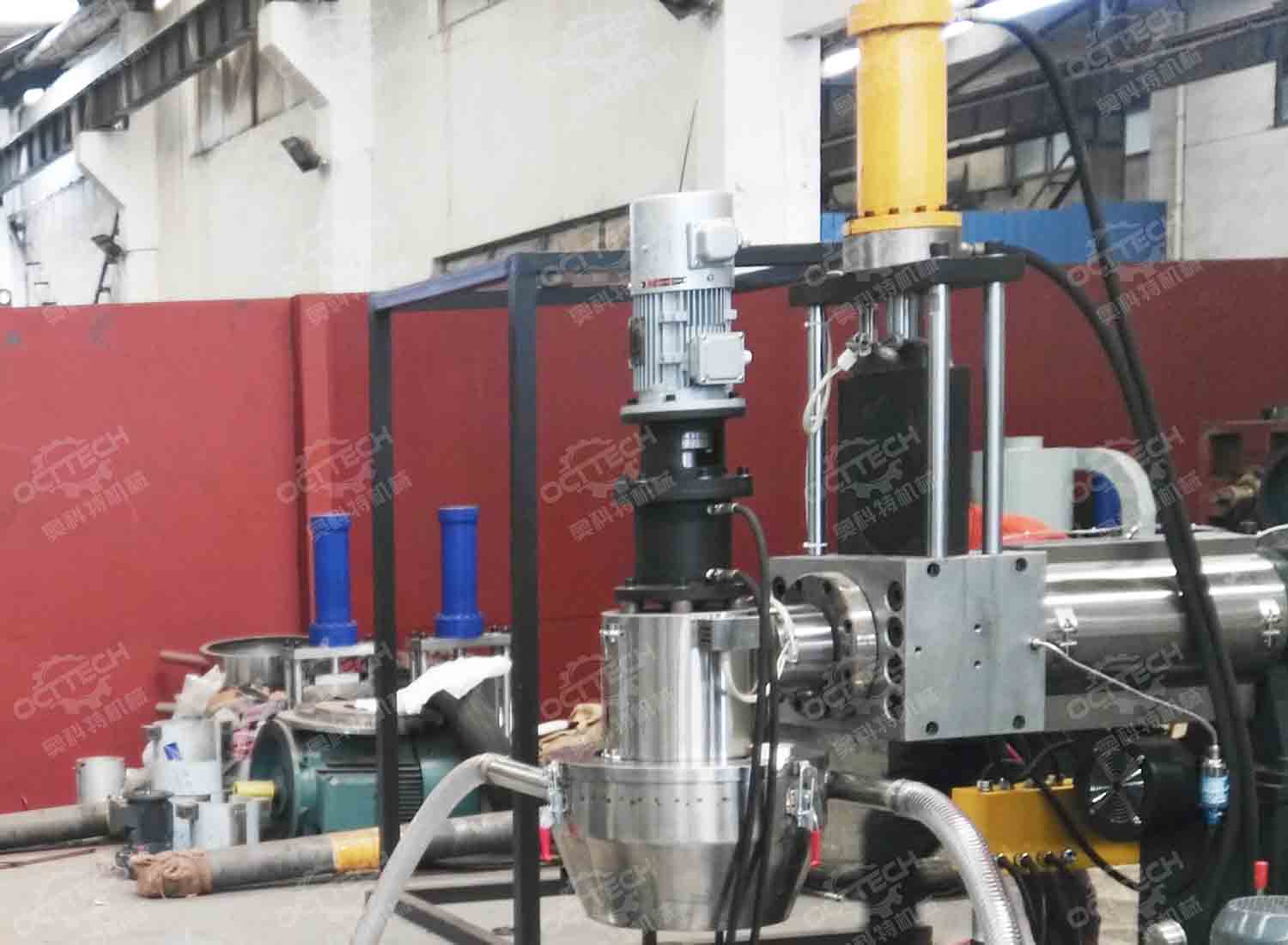

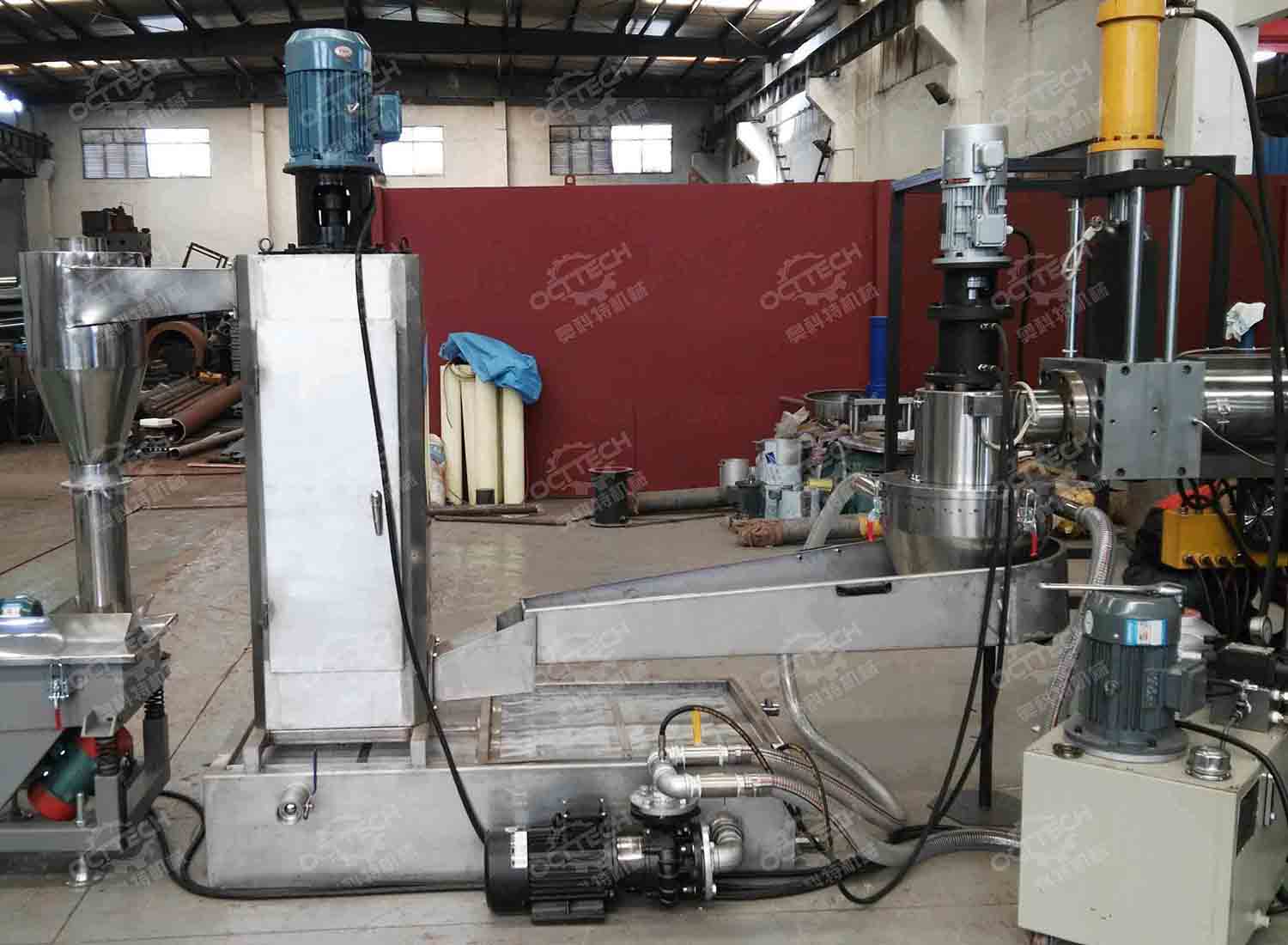

Different pelletizing systems for choice:Water-ring pelletizing system or Strand pelletizing system.
Made of SUS304 stainless steel.

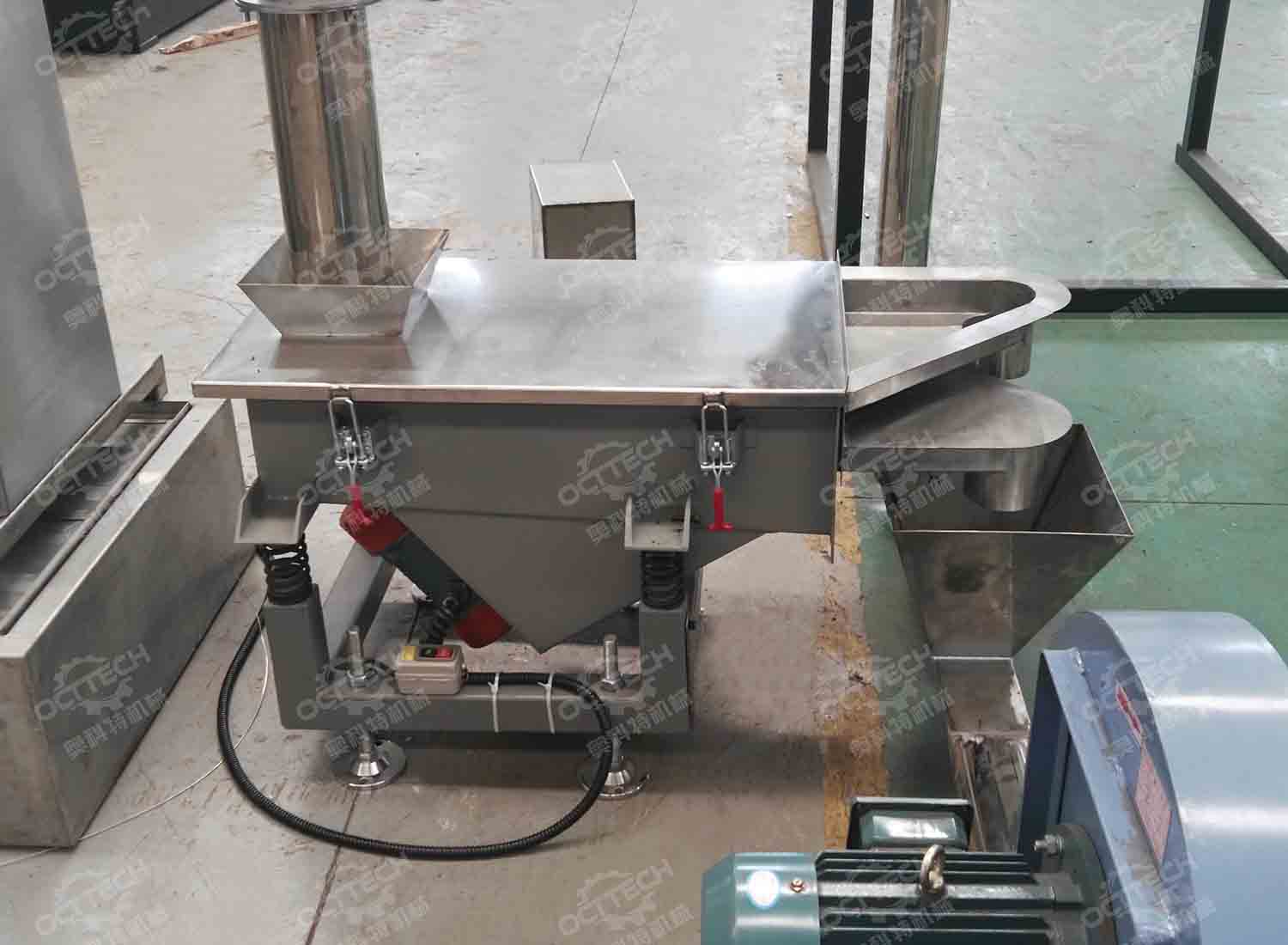

selecting size of the granules.

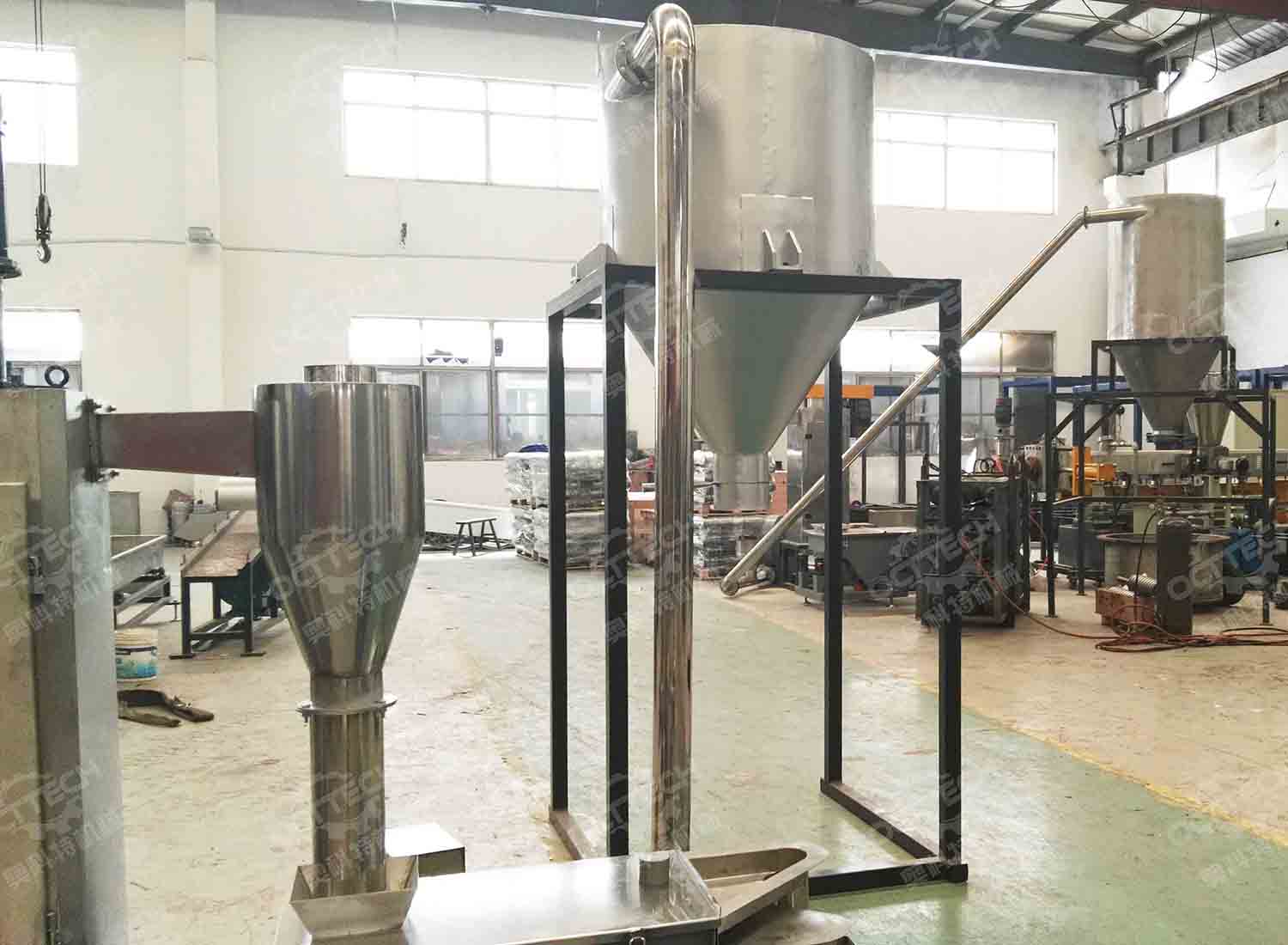

Silo Made of SUS304 stainless steel

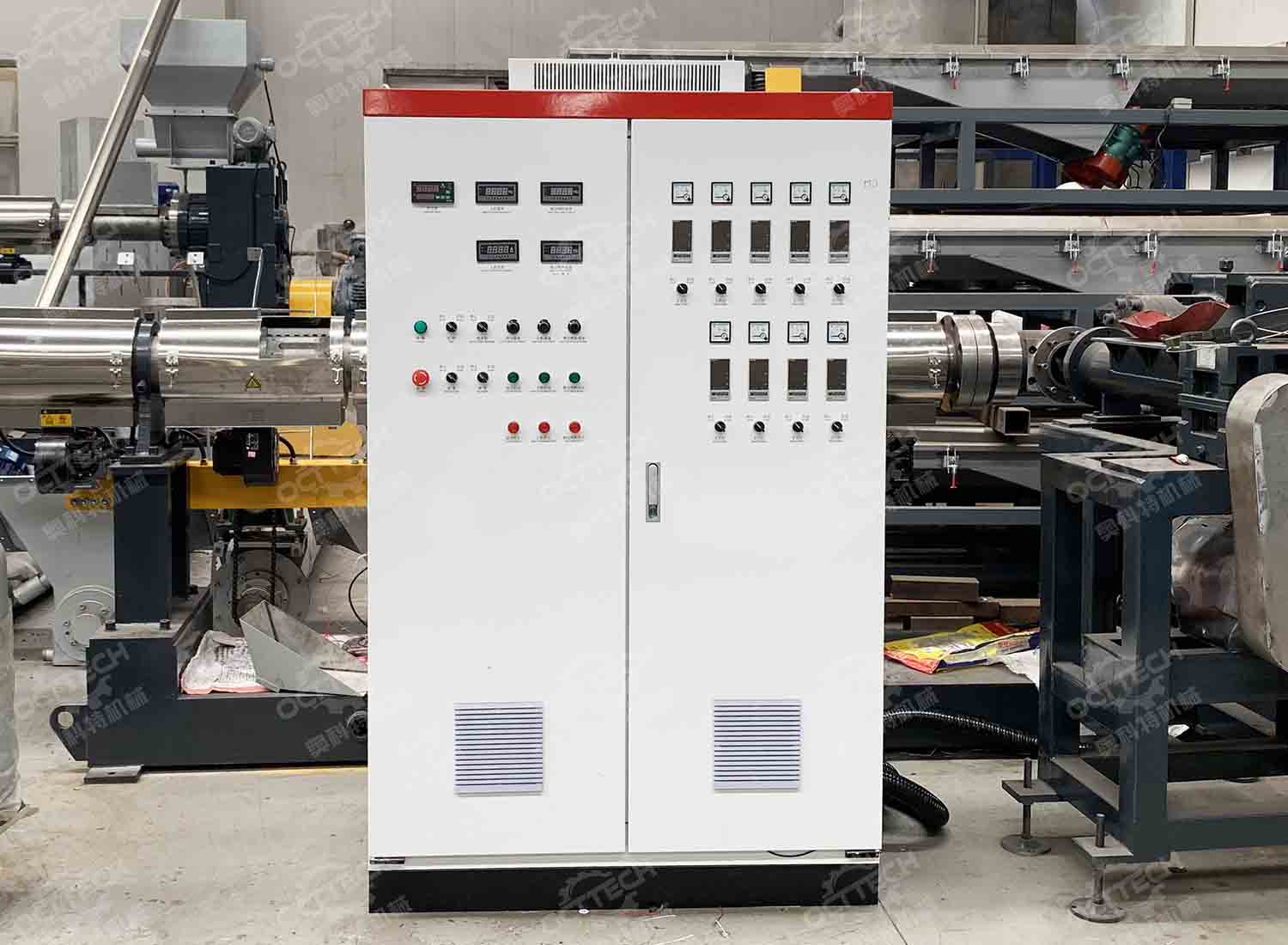

Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
excellent product
