PVC plastic pipe extrusion line
PVC plastic pipe extrusion line is mainly used in the area of agricultural water supply system, architectural water supply drainage system, pavement of cables and all sorts of PVC pipe with different diameter and wall thickness.

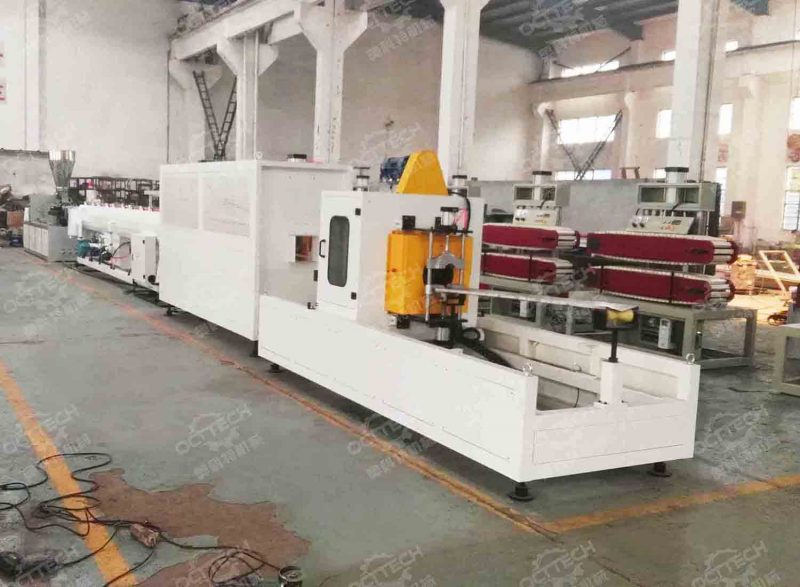

This machine line consists twin conical Screw extruder, vacuum calibration tank, haul-off unit, cutting machine and stacker.
The Screw extruder and haul-off unit have applied imported A/C inverter; both vacuum pump and driving motor have applied excellent products.
The drawing machine includes two-claw type,three-claw type,four-claw type, six-claw type,eight-claw type…etc..

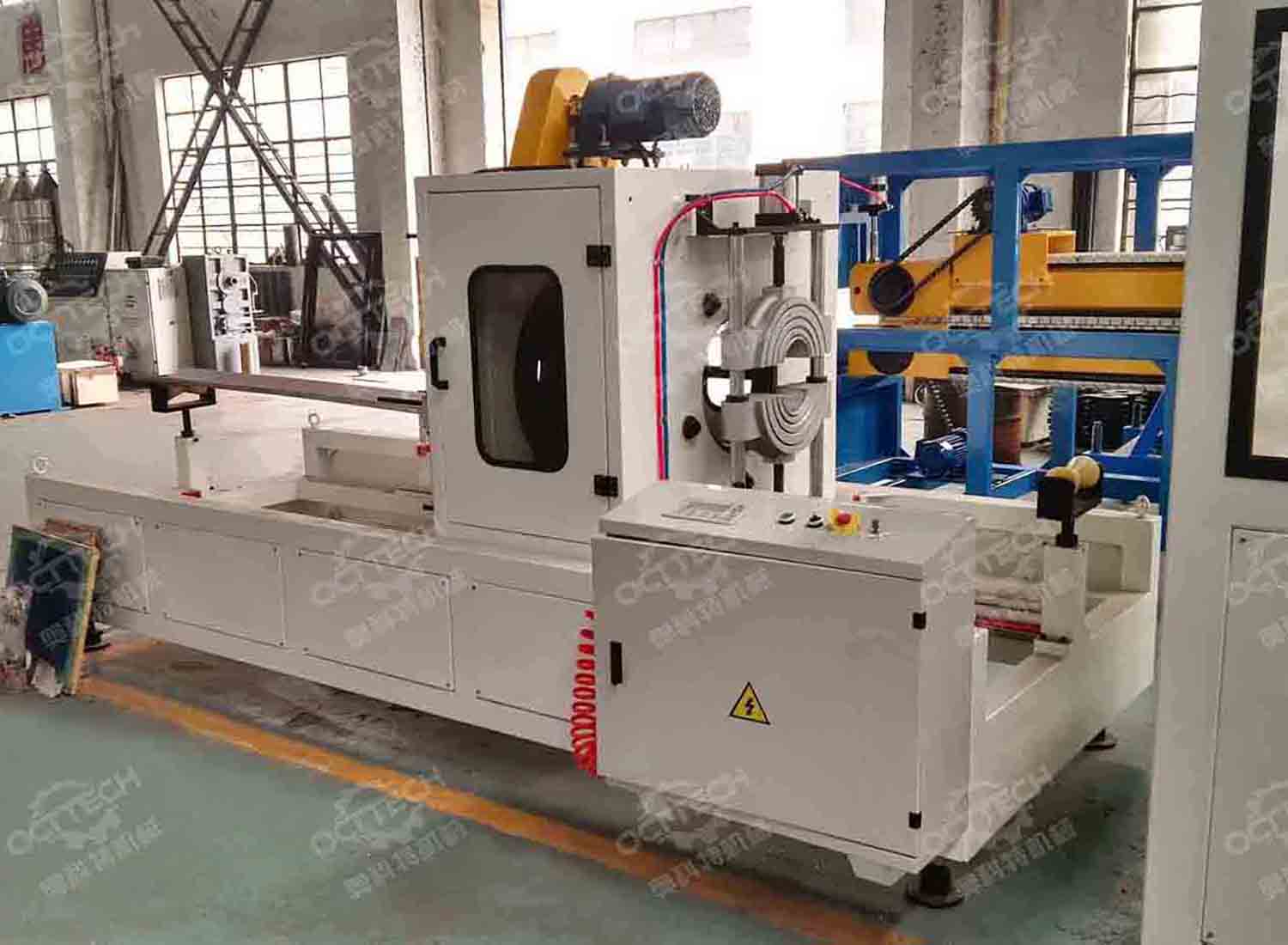

Sawing cutting or planet cutting can be applied,it is additionally applied with length measuring meter and thickness increasing device,the property of machine group is reliable,the production efficiency is high.The planetary cutting machine is fully automatic computer digital control;it has such advantages of simple operation, reliable property, etc.
Technical Parameters
| Model | Pipe diameter(mm) | Extruder | Capacity(kg/h) | Main power(kw) | Total power(kw) | Line length(m) |
|---|---|---|---|---|---|---|
| UPVC63 | 16-63 | SJZ51/105 | 80-120 | 18.5 | 50 | 22 |
| UPVC160 | 75-160 | SJZ65/132 | 200-250 | 37 | 100 | 22 |
| UPVC250 | 110-250 | SJZ65/132 | 200-250 | 37 | 120 | 30 |
| UPVC315 | 160-315 | SJZ80/156 | 300-400 | 55 | 200 | 30 |
| UPVC450 | 200-450 | SJZ80/156 | 300-400 | 55 | 220 | 36 |
| UPVC630 | 315-630 | SJZ92/188 | 400-800 | 90 | 350 | 42 |

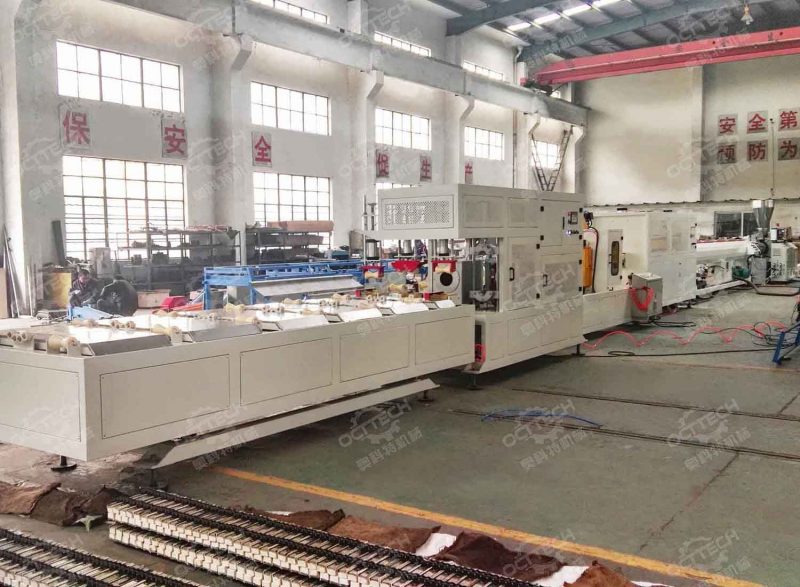

PVC plastic pipe extrusion line Working Flow
Screw loader→Conical twin screw extruder→Mould→Vacuum calibration tank→Haul off machine→Cutter machine→Stacker→Electric control cabinet
PVC plastic pipe extrusion line Detail

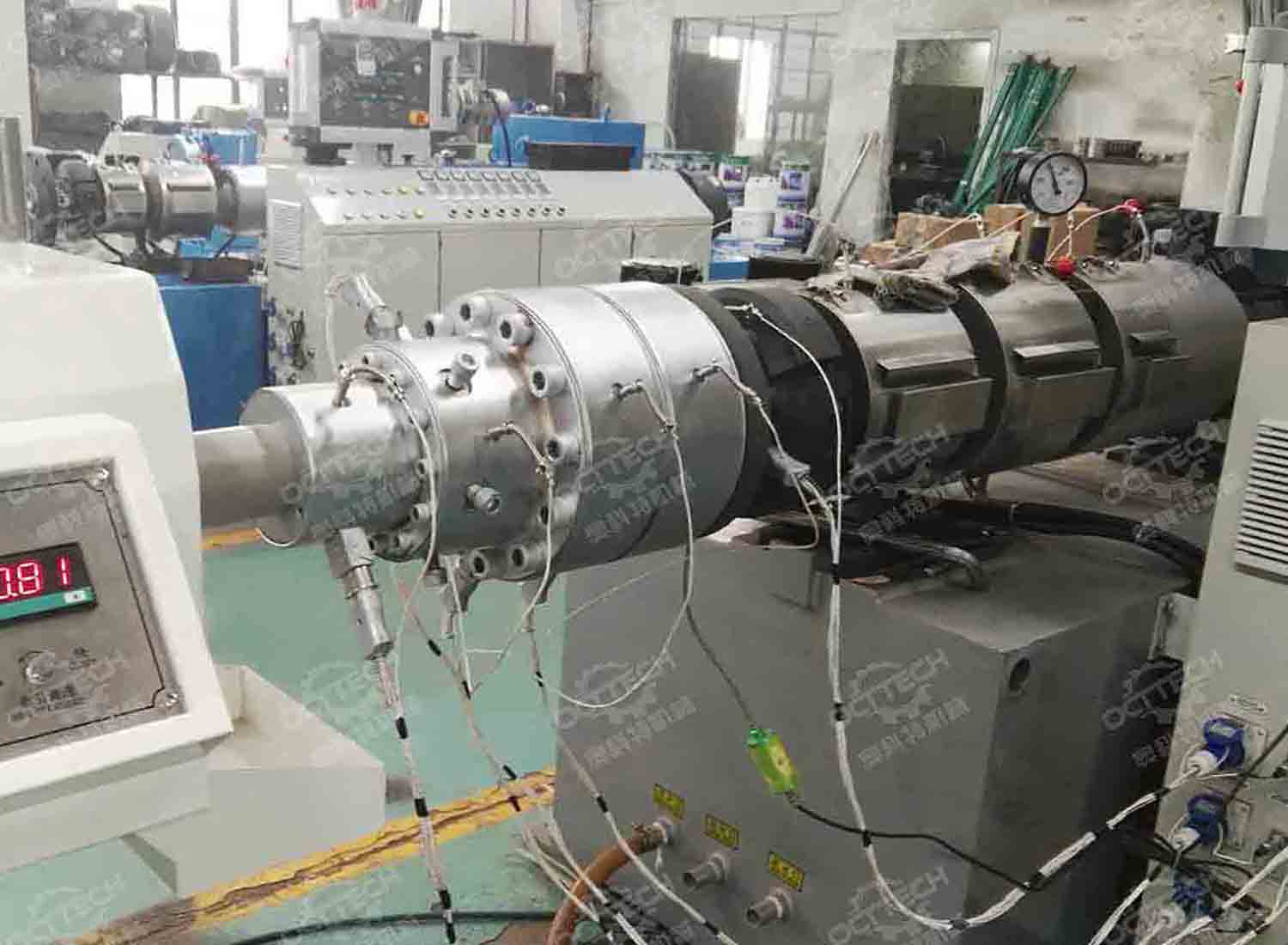

Heating ring material:Cast aluminum
Die mouth , mandril :40Cr

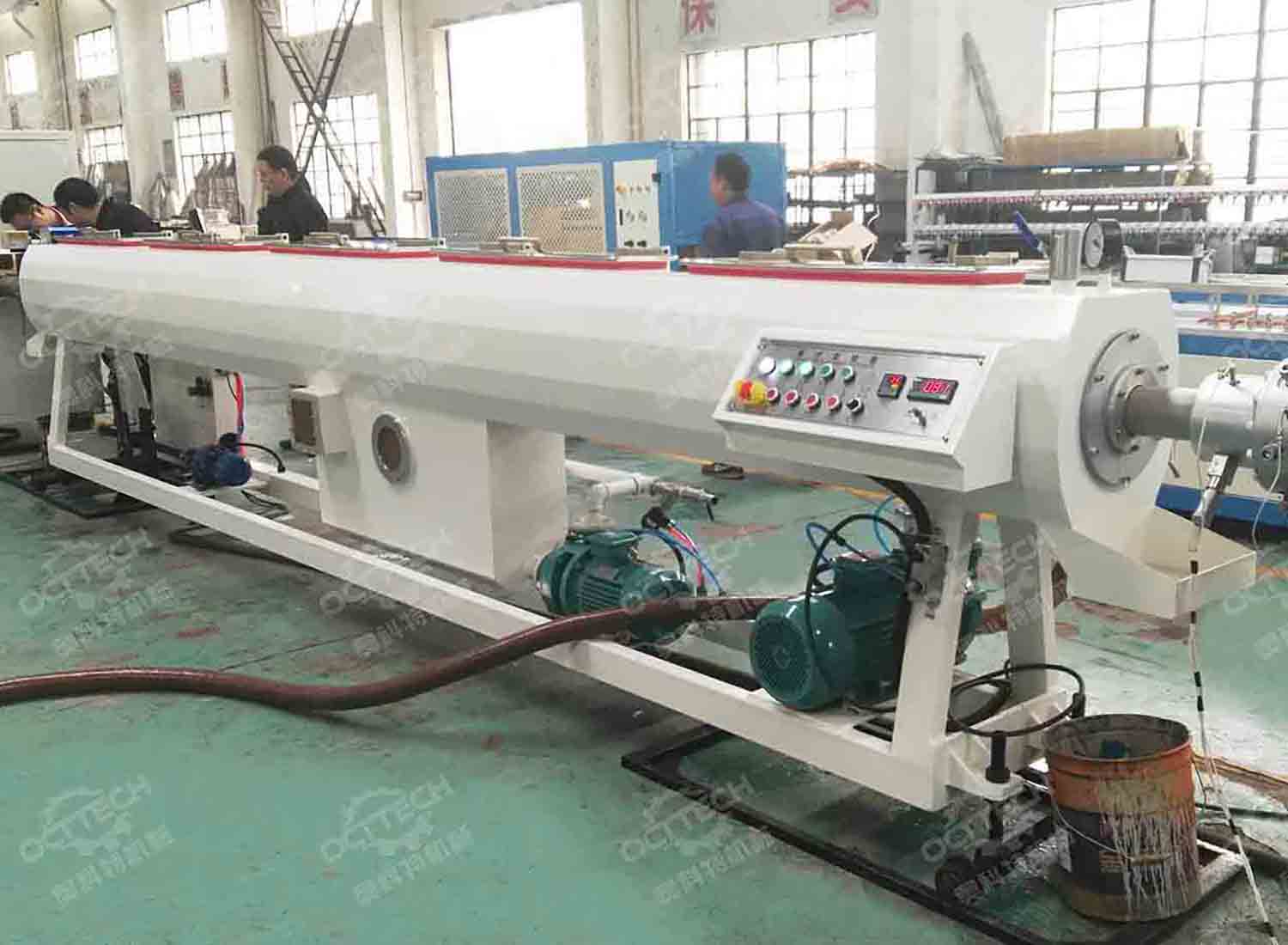

Calibration copper sleeve :Tin bronze
Equipped with water temperature and water level controlled by Floating ball switch.
Spray water cooling

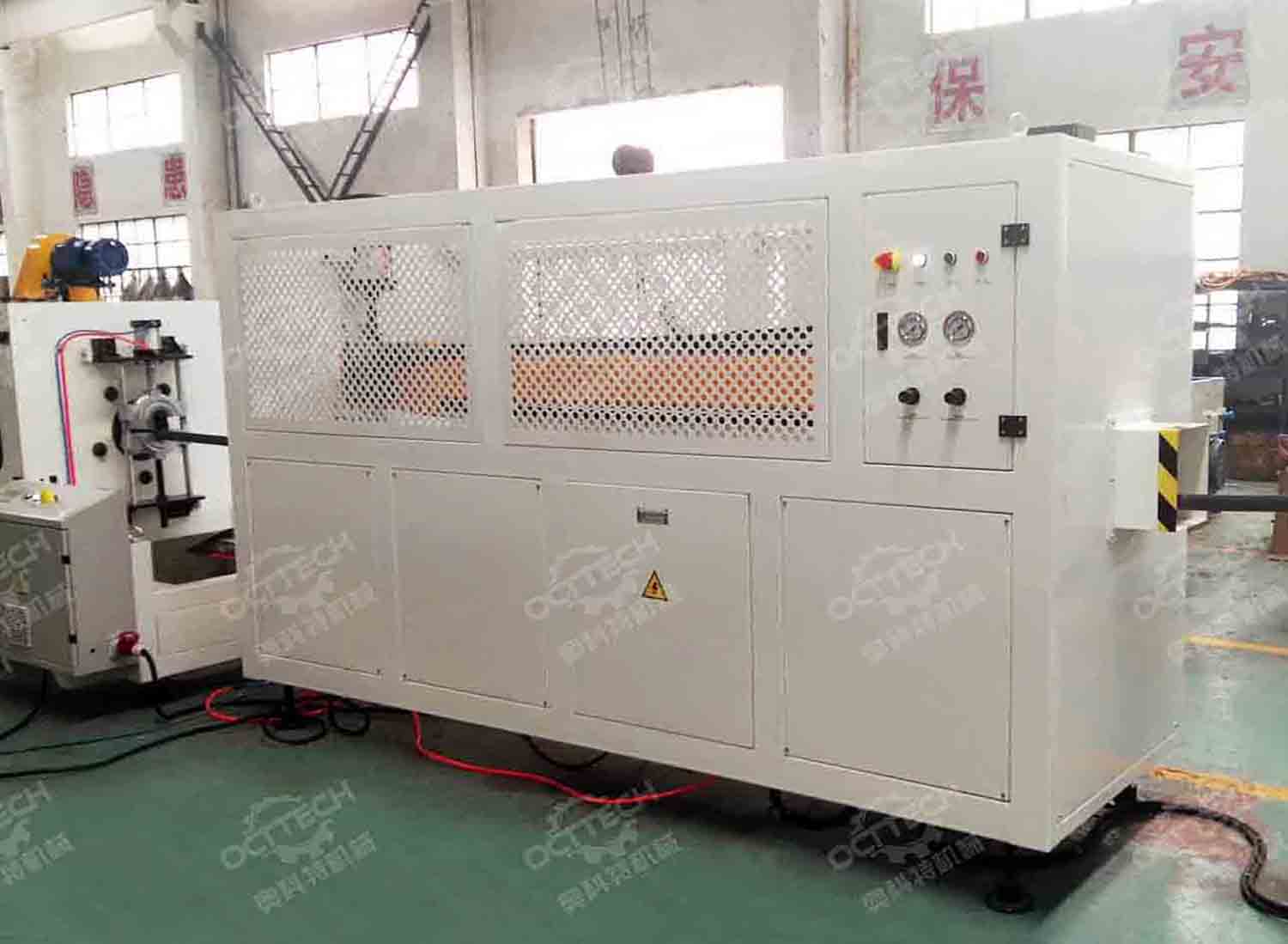

Belt type:Rubber block
Inventer control the speed,and equip with two worm gear reducer
Control method:PLC control
Cutter Motor:2.2kw
Planetary Rotary motor:1.5kw
Dust collect motor:2.2kw
Forming method:Air or water cooling
Working pipe length:3-6m
Compressed air pressure:0.4-0.6Mpa
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
