PVC four pipe extrusion line
PVC double pipe and four pipe line is mainly used to make PVC water supply pipe ,drainage pipe,Conduit Pipe and other area.The production line equipped with high efficient& energy saving twin conical screws extruder,produces PVC pipe two or four outlet at once by specially designed die mould.
Technical Parameters
| Model | Pipe diameter(mm) | Extruder | Die head | Capacity(kg/h) | Main power(kw) | Total power(kw) | Line length(m) |
|---|---|---|---|---|---|---|---|
| UPVC40 | 16-40 | SJZ51/105 | Double outlet | 80-120 | 18.5 | 50 | 22 |
| UPVC63 | 16-63 | SJZ65/132 | Double outlet | 120-250 | 37 | 100 | 25 |
| UPVC32 | 16-32 | SJZ65/132 | Four outlet | 120-250 | 37 | 100 | 22 |
PVC four pipe extrusion line Working Flow

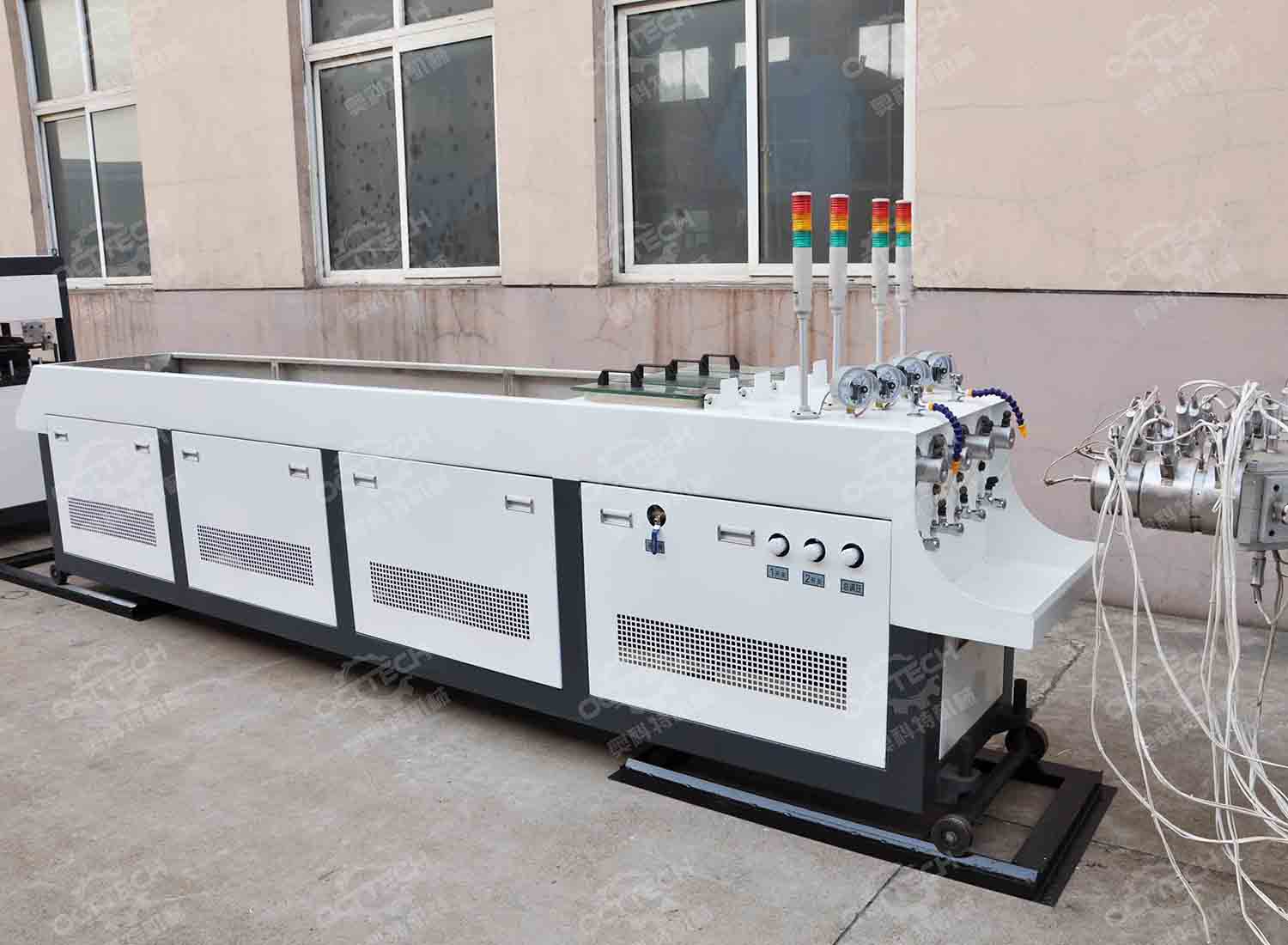

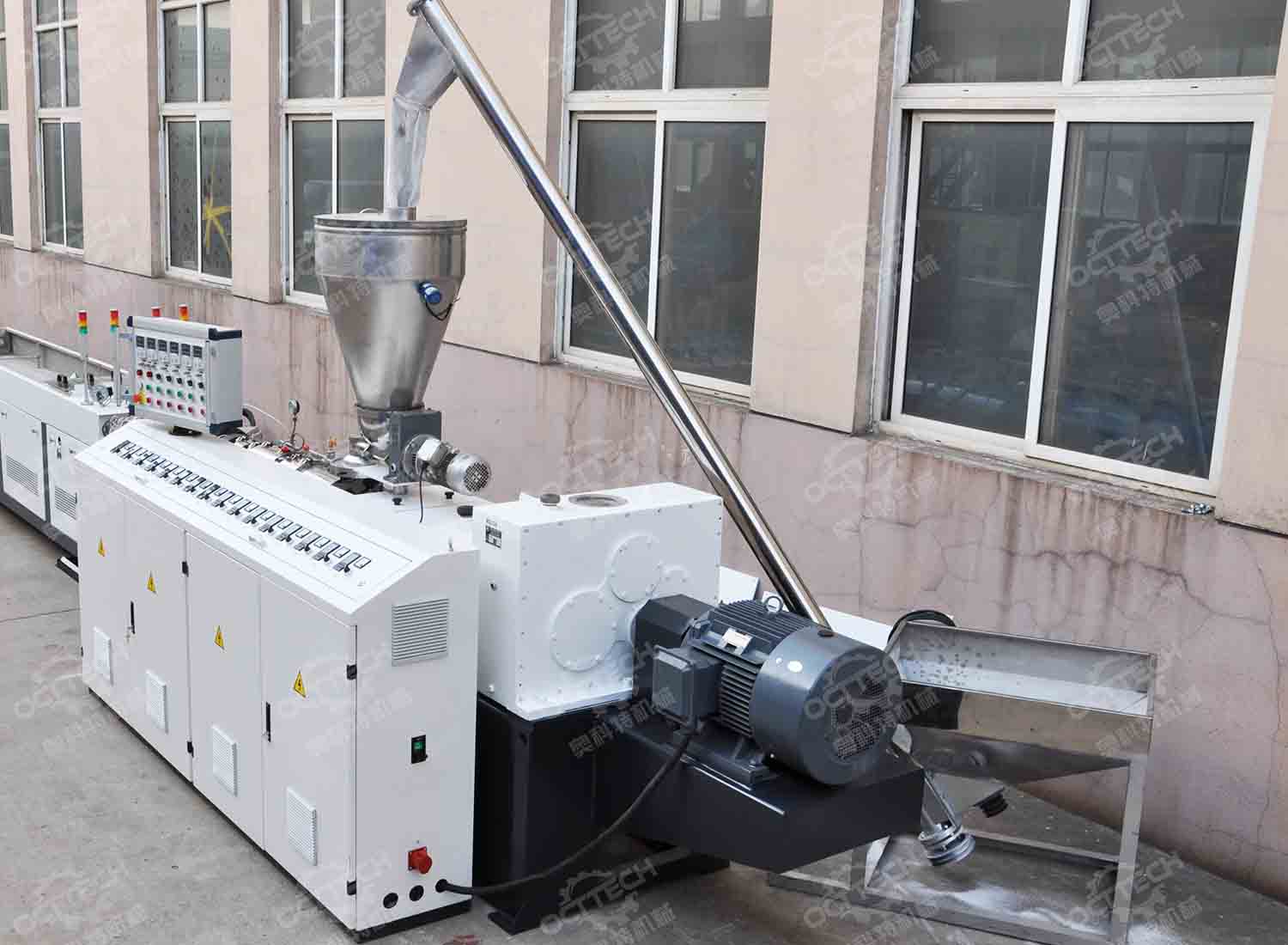

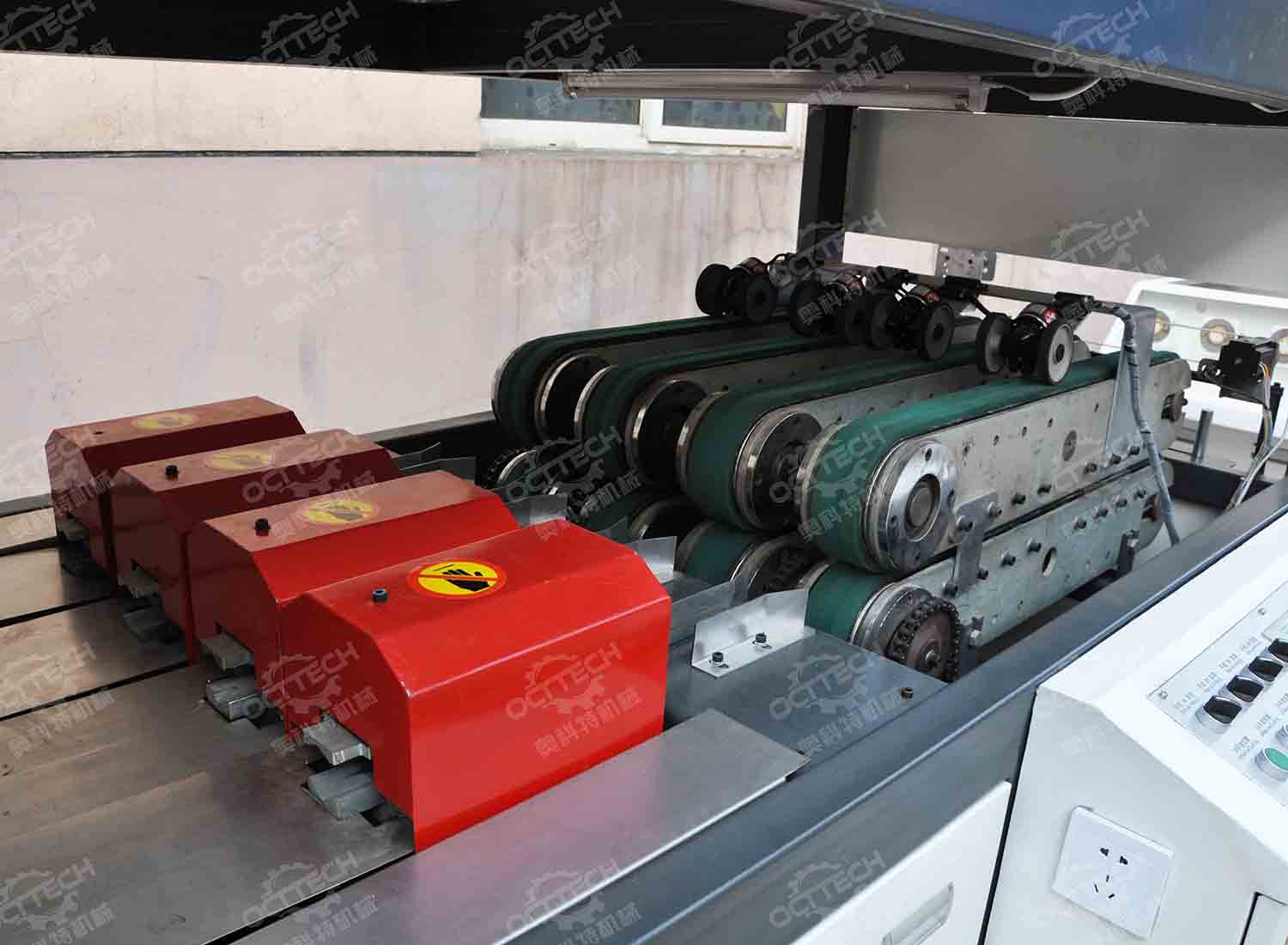

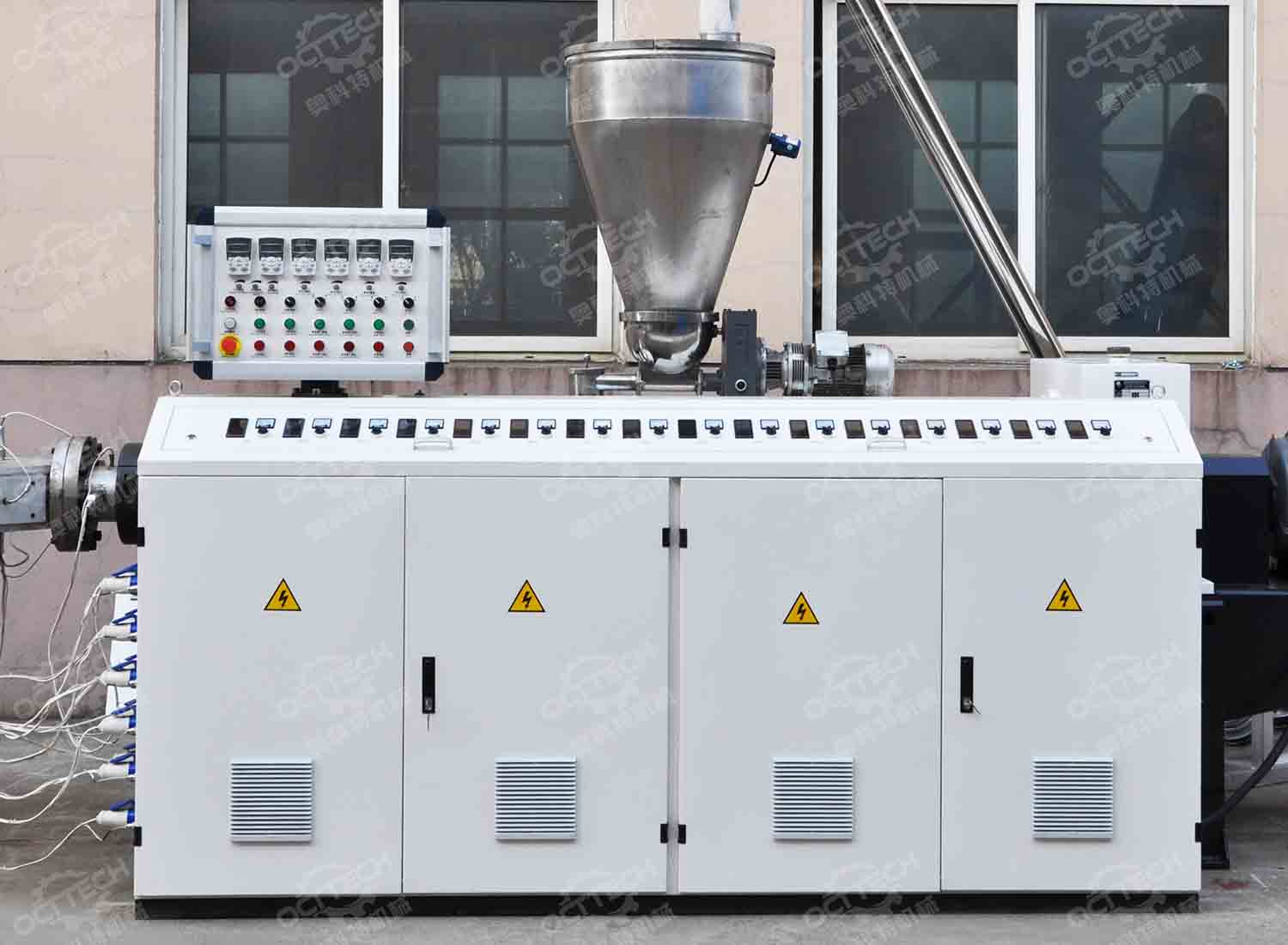

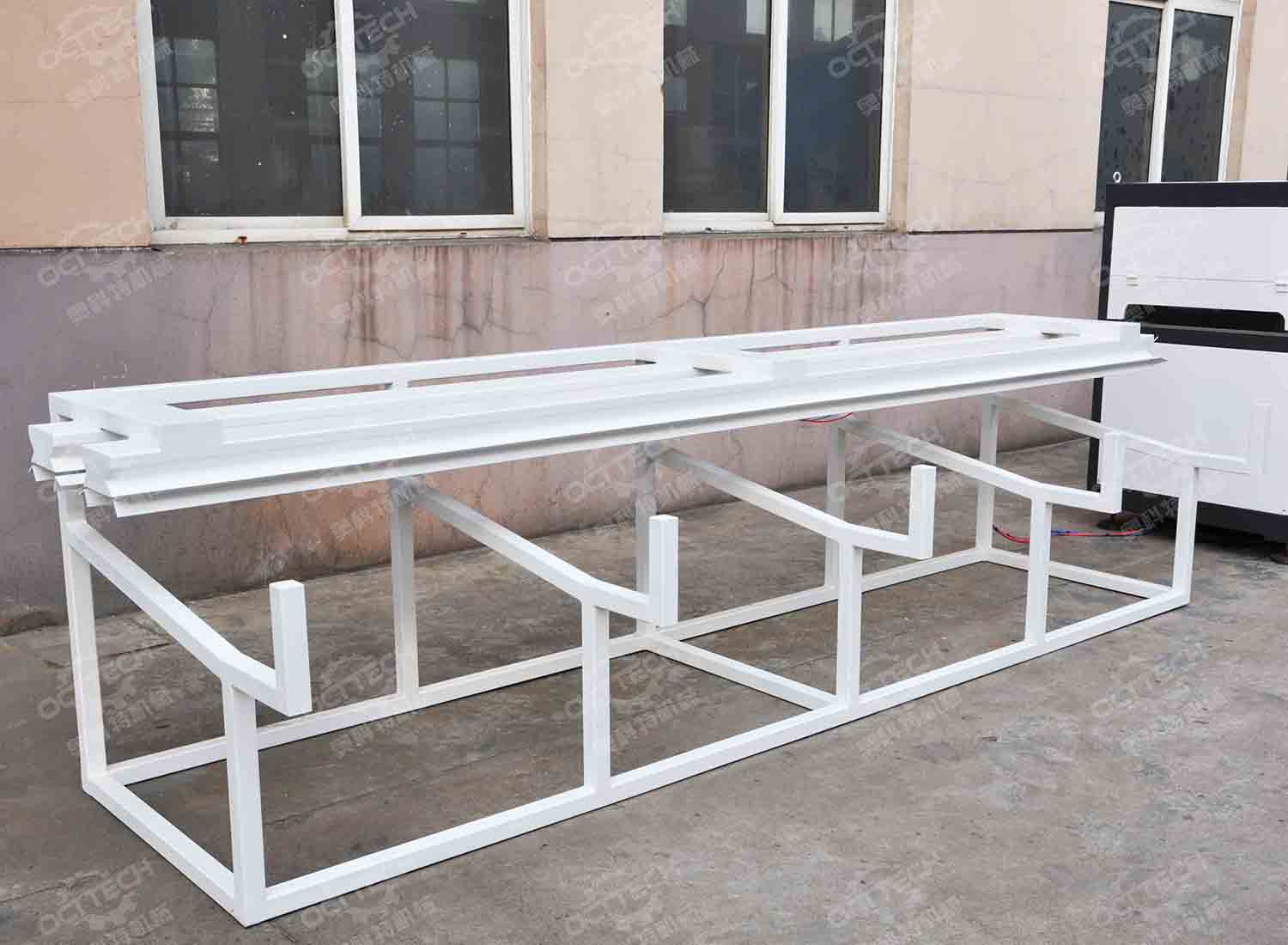

Screw loader→Conical twin screw extruder→Mould→Vacuum calibration tank→Haul off and Cutter machine→Stacker→Electric control cabinet

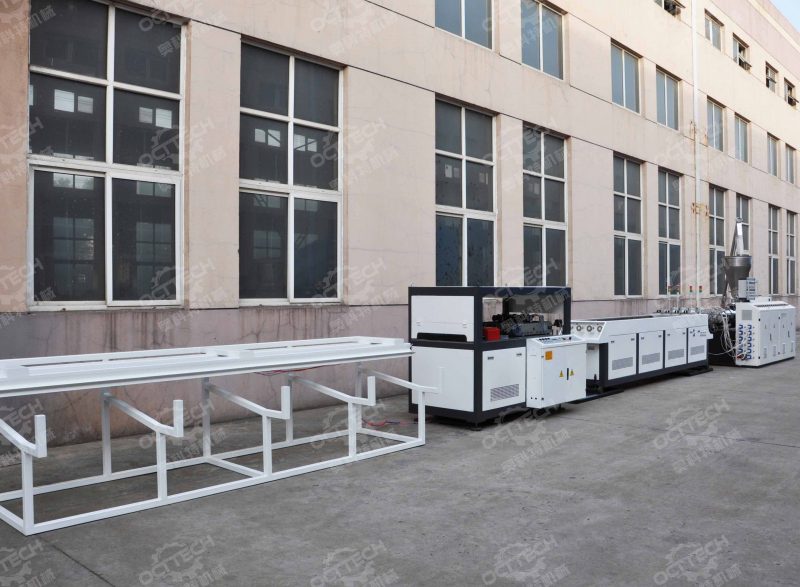

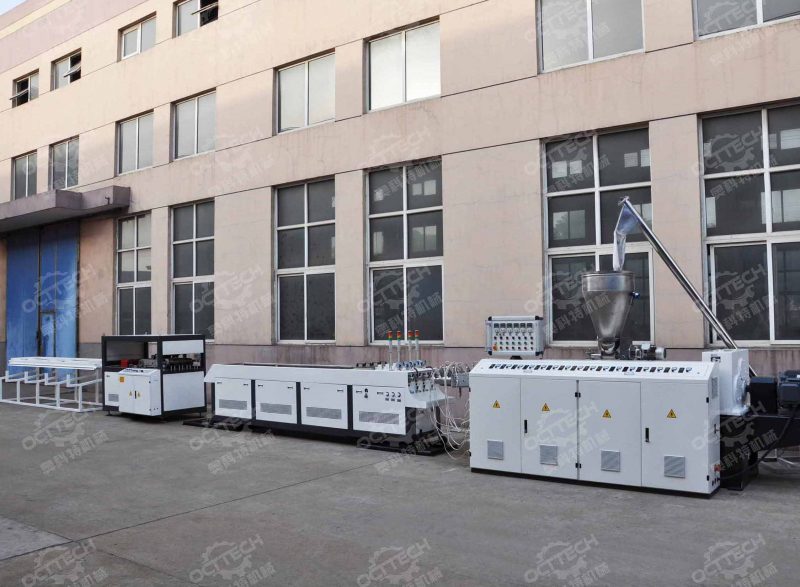

PVC four pipe extrusion line Detail
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
