PPR PP PE PB pipe extrusion machine

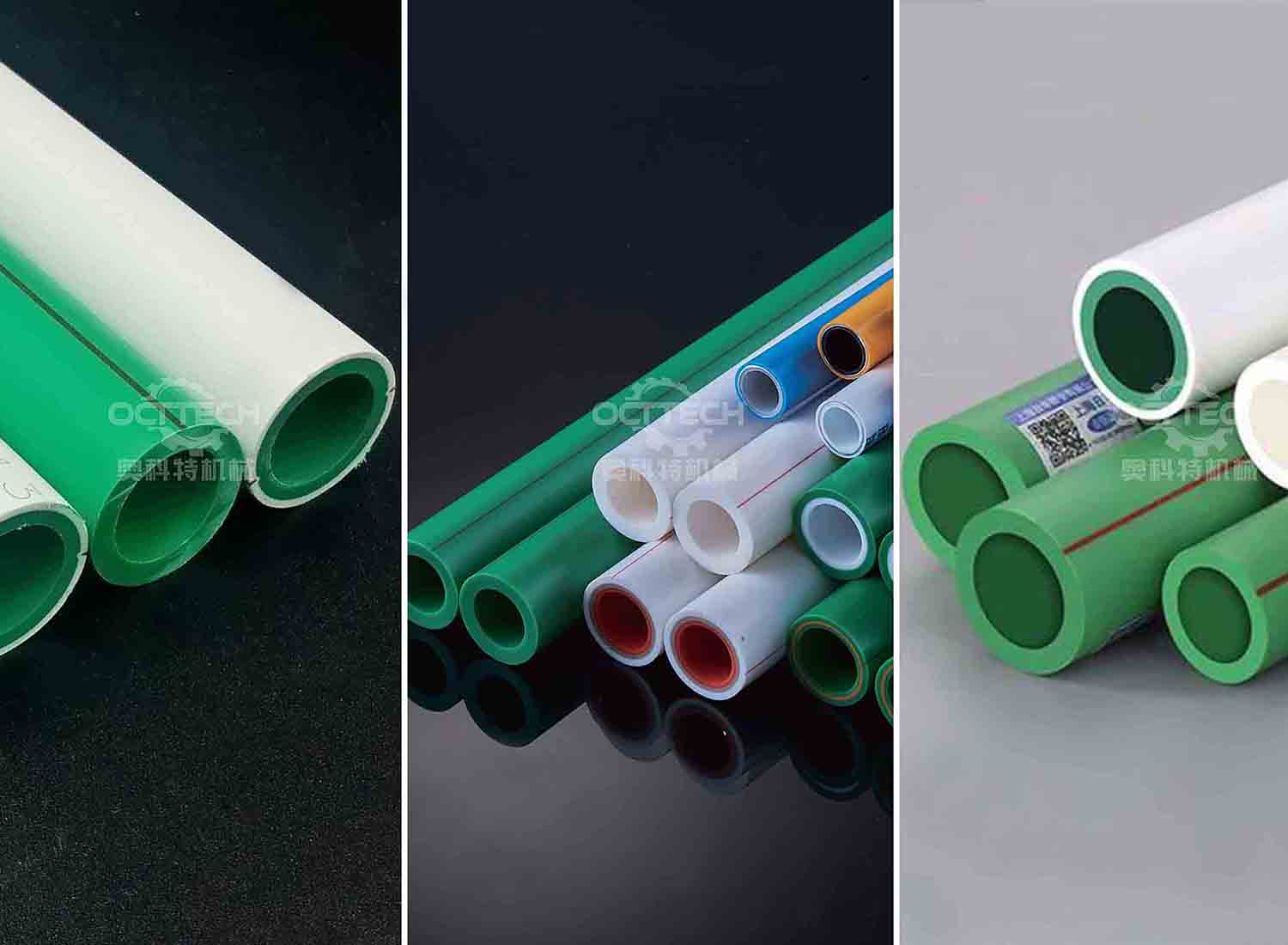

The extrusion line is designed for making PPR,PP pipe, as well as to make PB,ABS,PERT,PEX pipe.It can also make multi-layer PPR pipe.
Technical Parameters
| Model | Pipe diameter(mm) | Extruder | Capacity(kg/h) | Main power(kw) | Total power(kw) | Line length(m) |
|---|---|---|---|---|---|---|
| PPR63 | 20-63 | SJ65/33 | 70-110 | 45 | 90 | 24 |
| PPR110A | 20-110 | SJ75/33 | 100-150 | 55 | 100 | 30 |
| PPR110B | 75-110 | SJ75/33 | 110-200 | 90 | 150 | 30 |
| PPR160 | 110-160 | SJ90/33 | 200-300 | 110 | 180 | 32 |

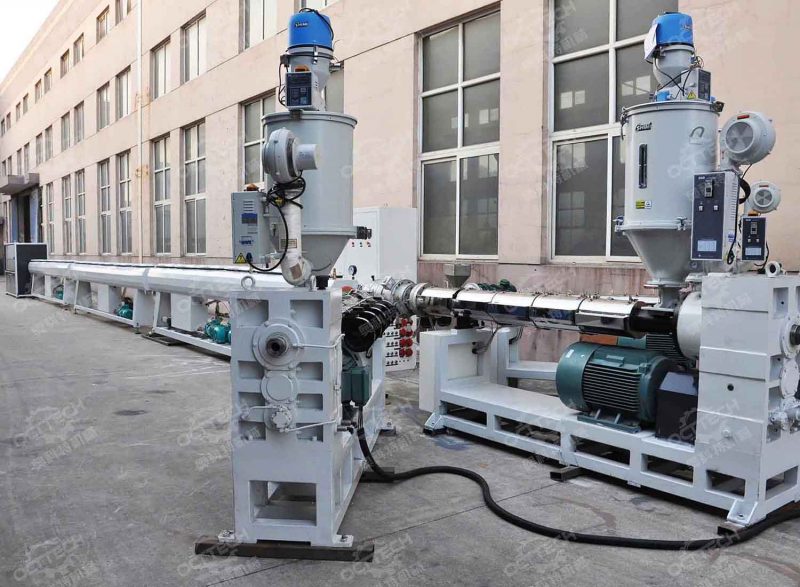

PPR PP PE PB pipe extrusion machine Working Flow

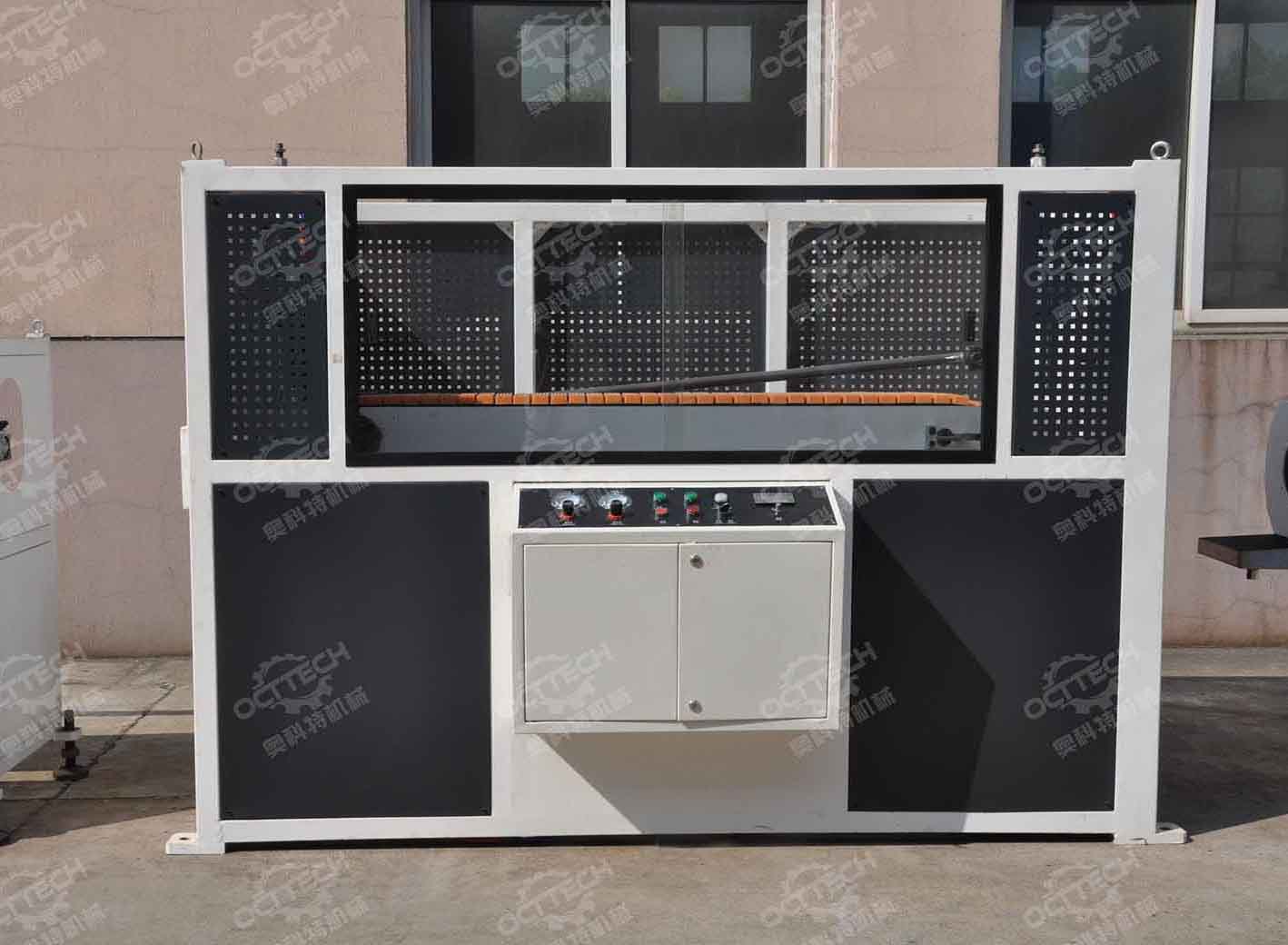

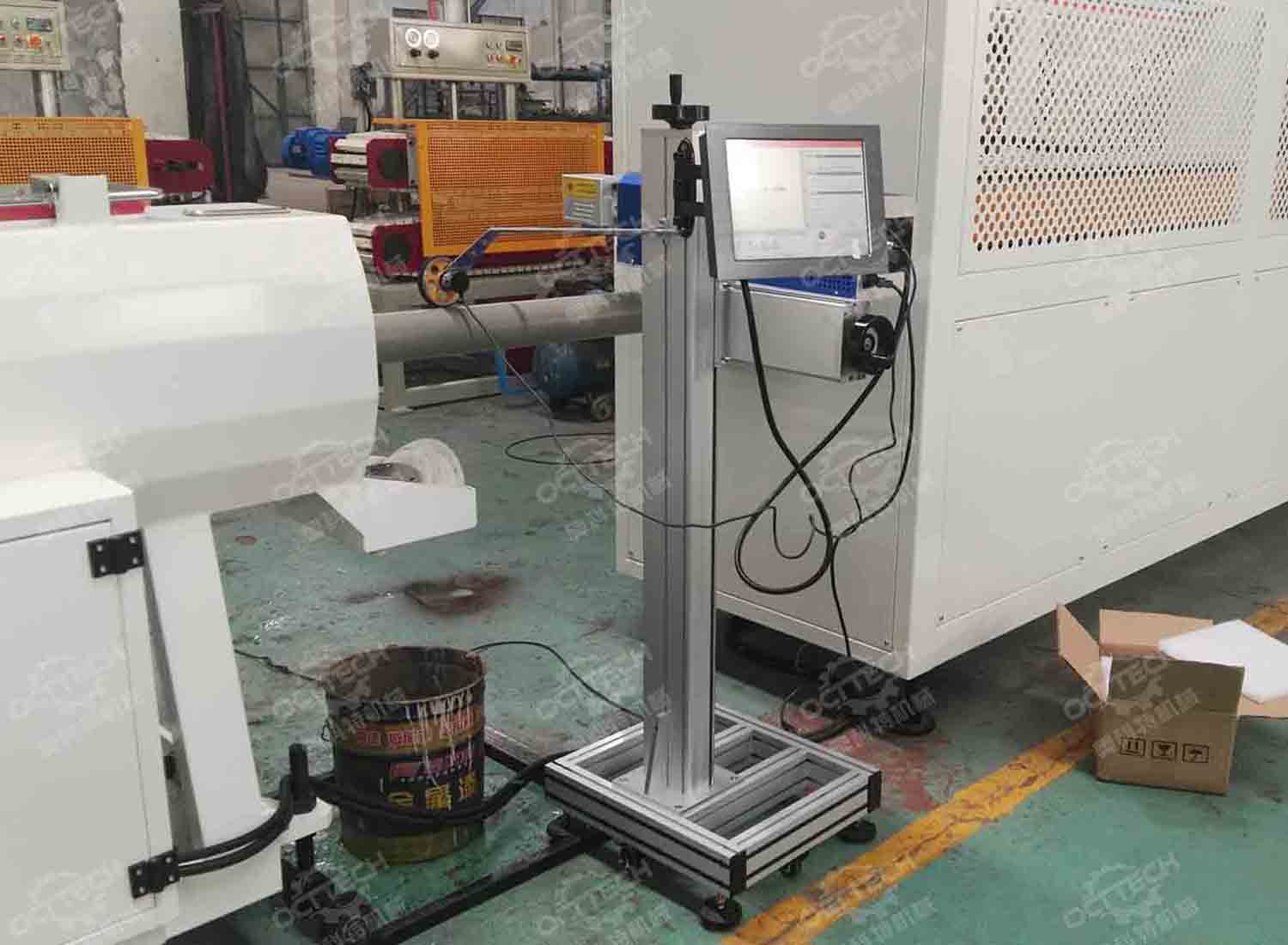

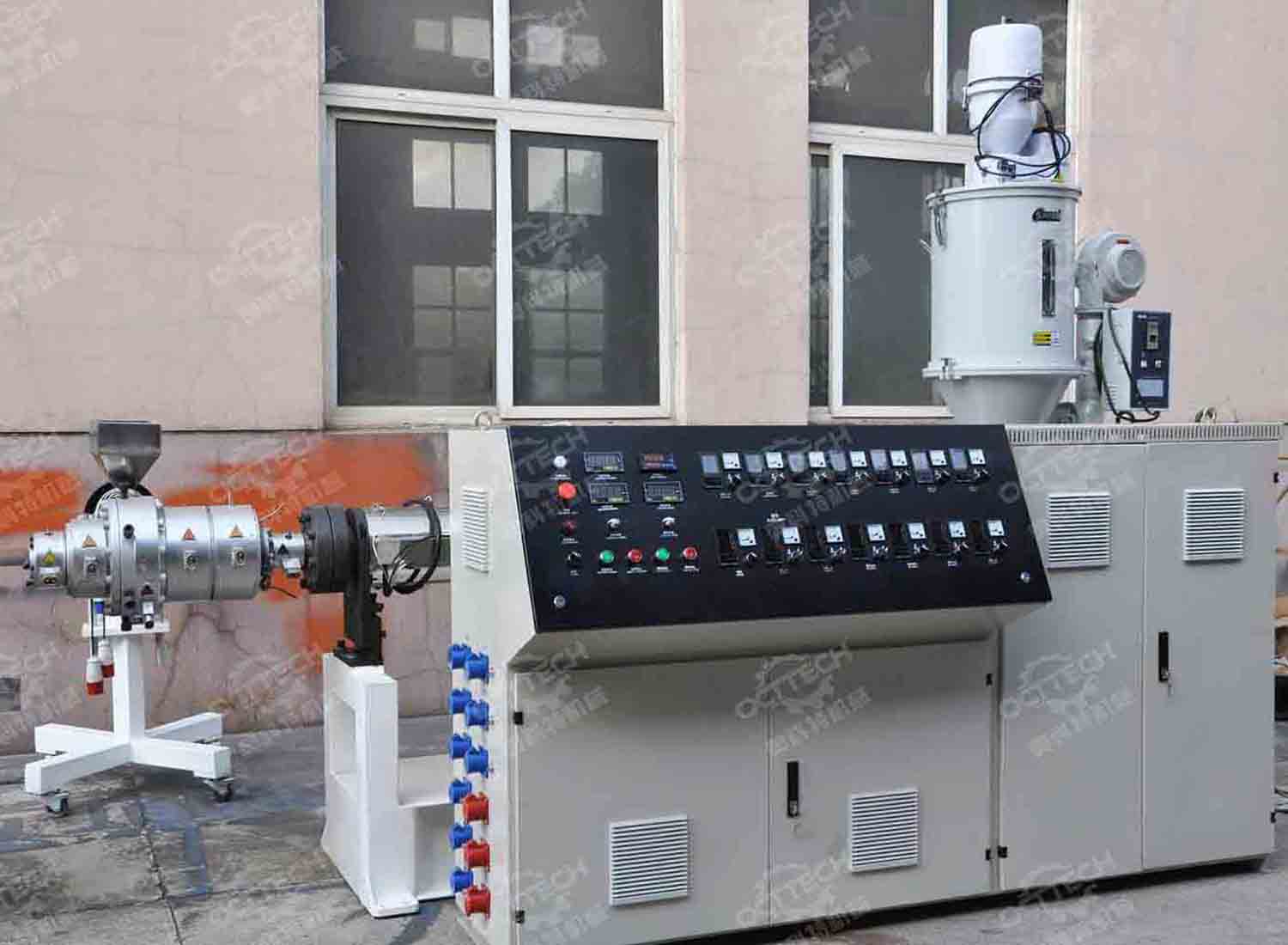

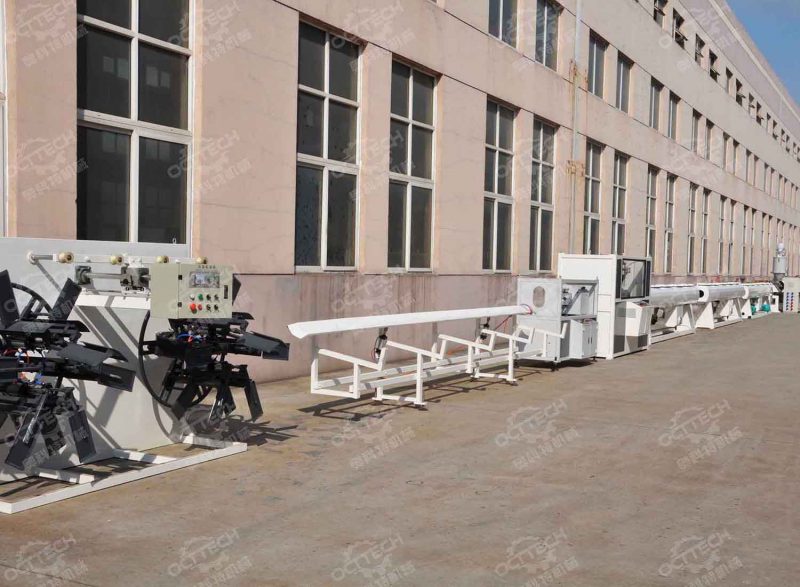

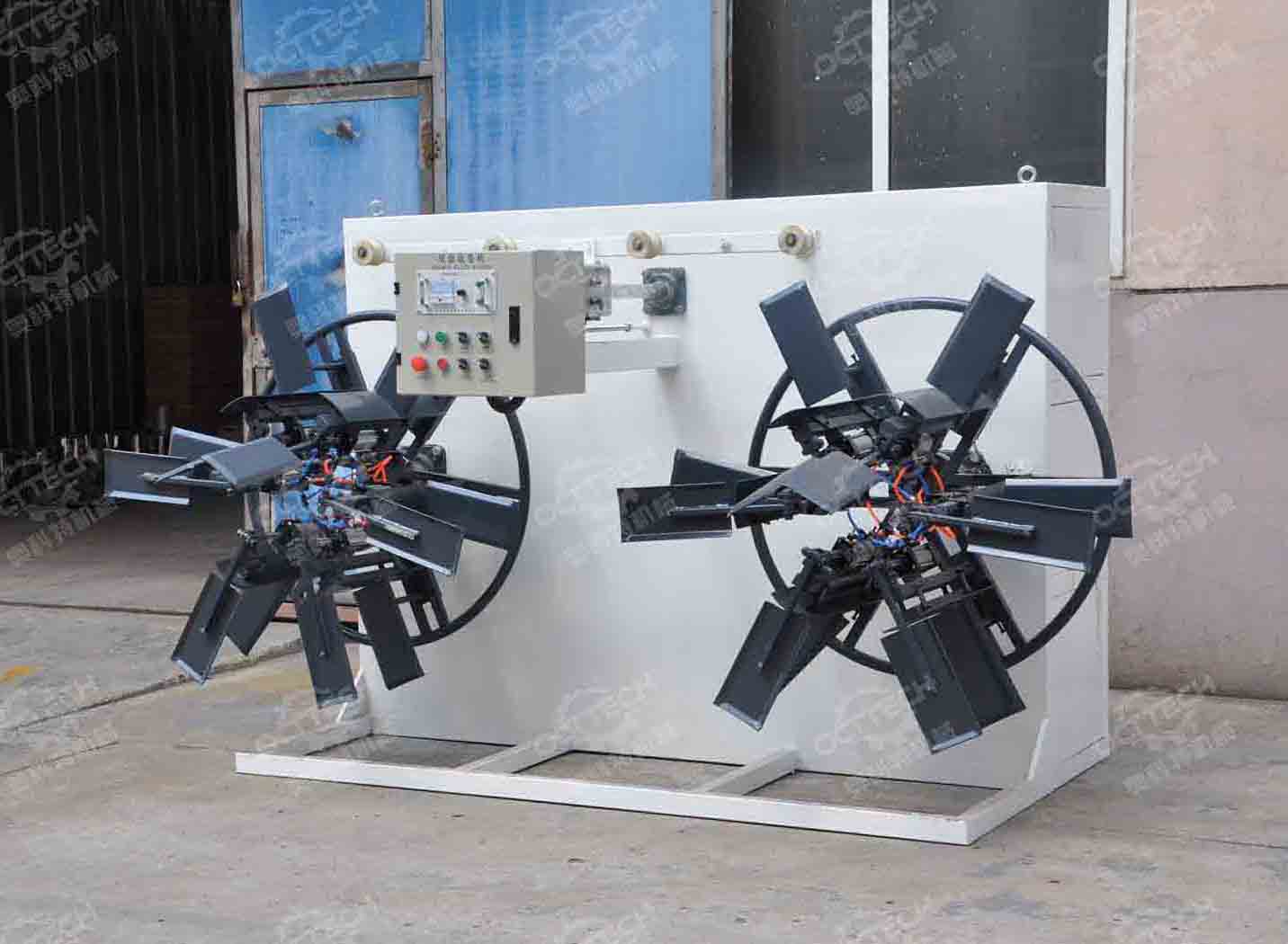

Material Vacuum feeding → Hopper dryer → Main extruder → Color extruder →Mould→ Vaccum calibration tank → Spray cooling tank → Meter-measure printer →Haul off machine → Cutting machine(or pipe winder machine)→ Stacker→Electric control cabinet

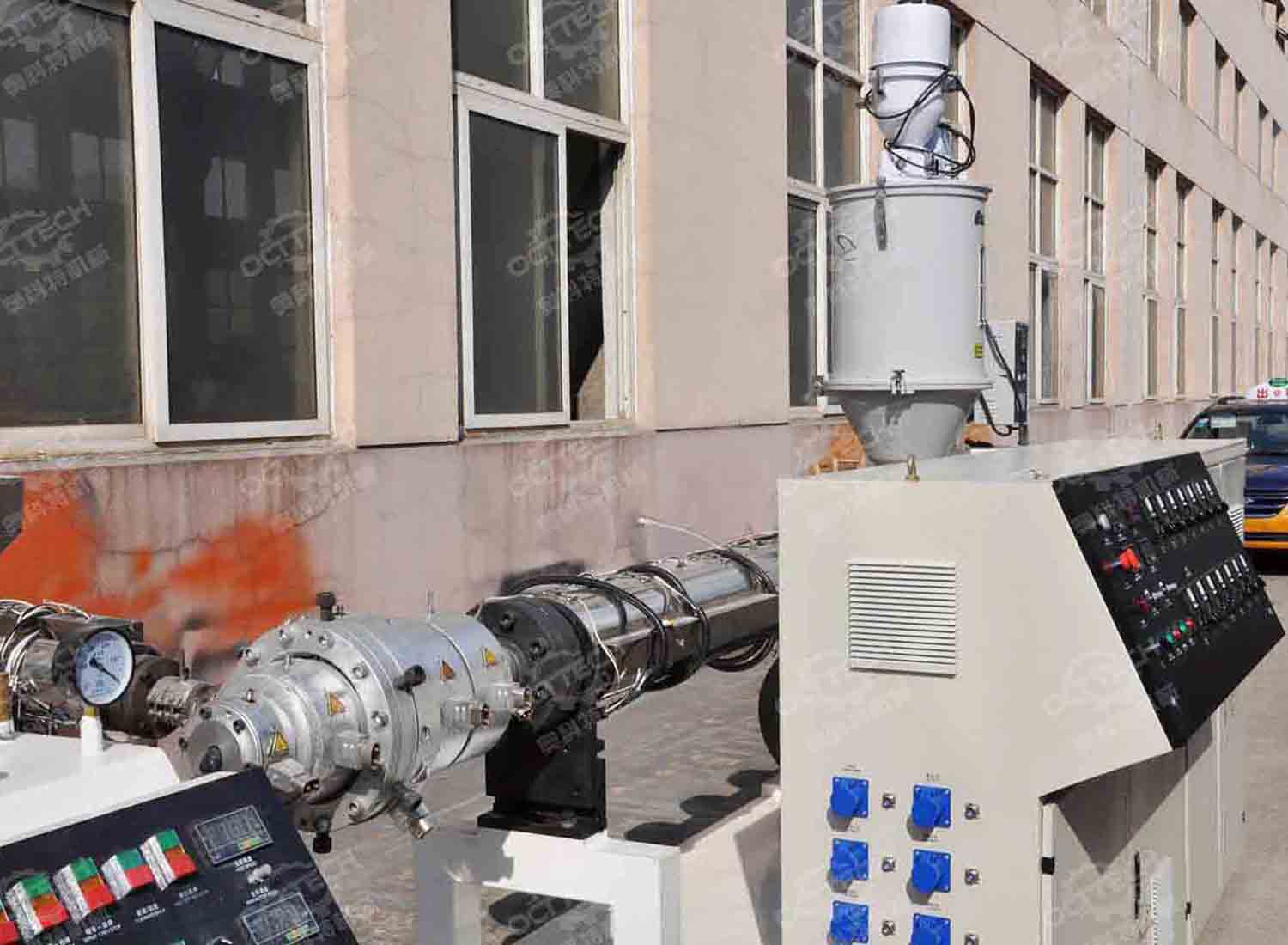

PPR PP PE PB pipe extrusion machine Detail
Heating ring material:Cast aluminum

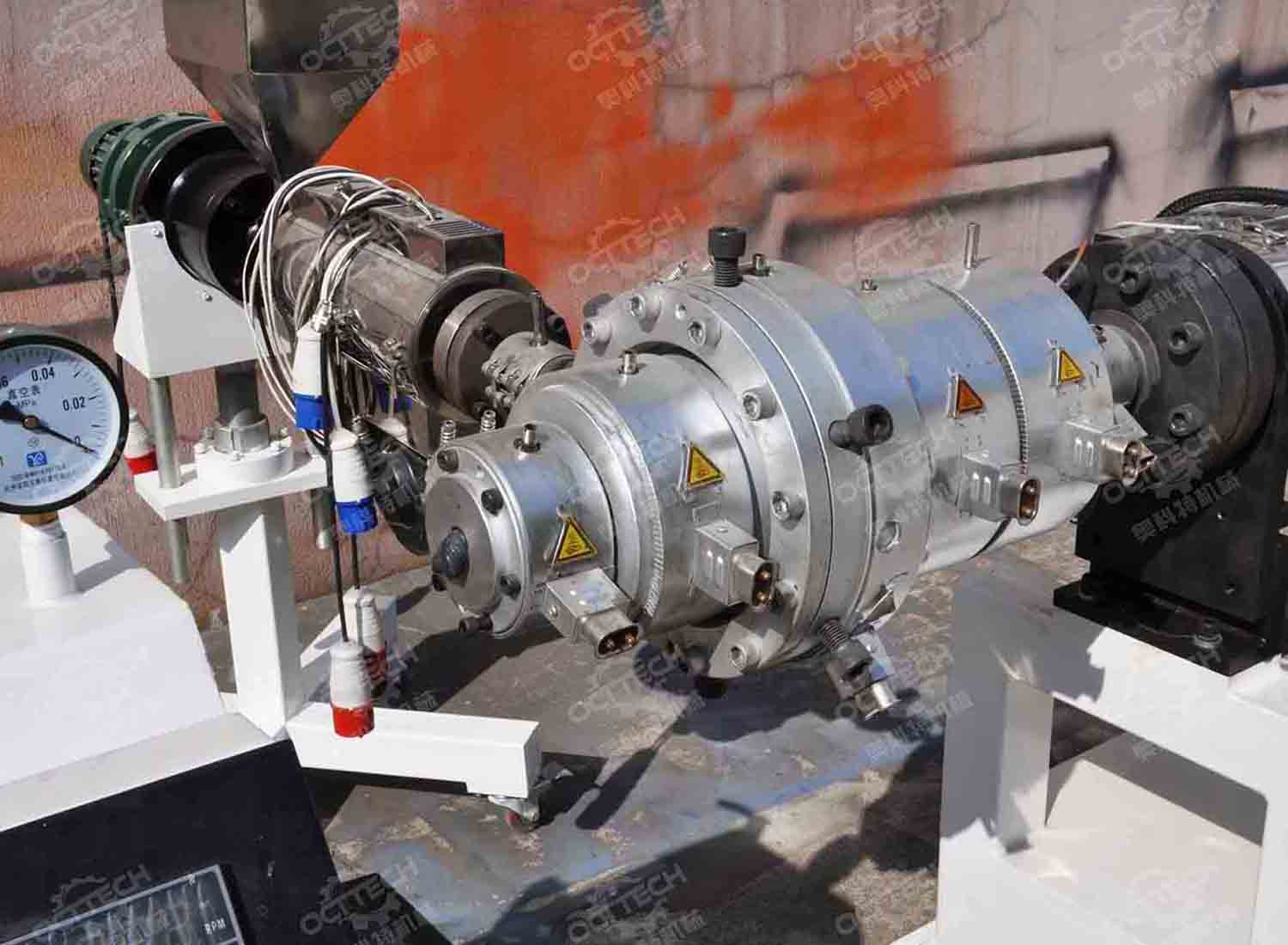

Die mouth , mandril :40Cr

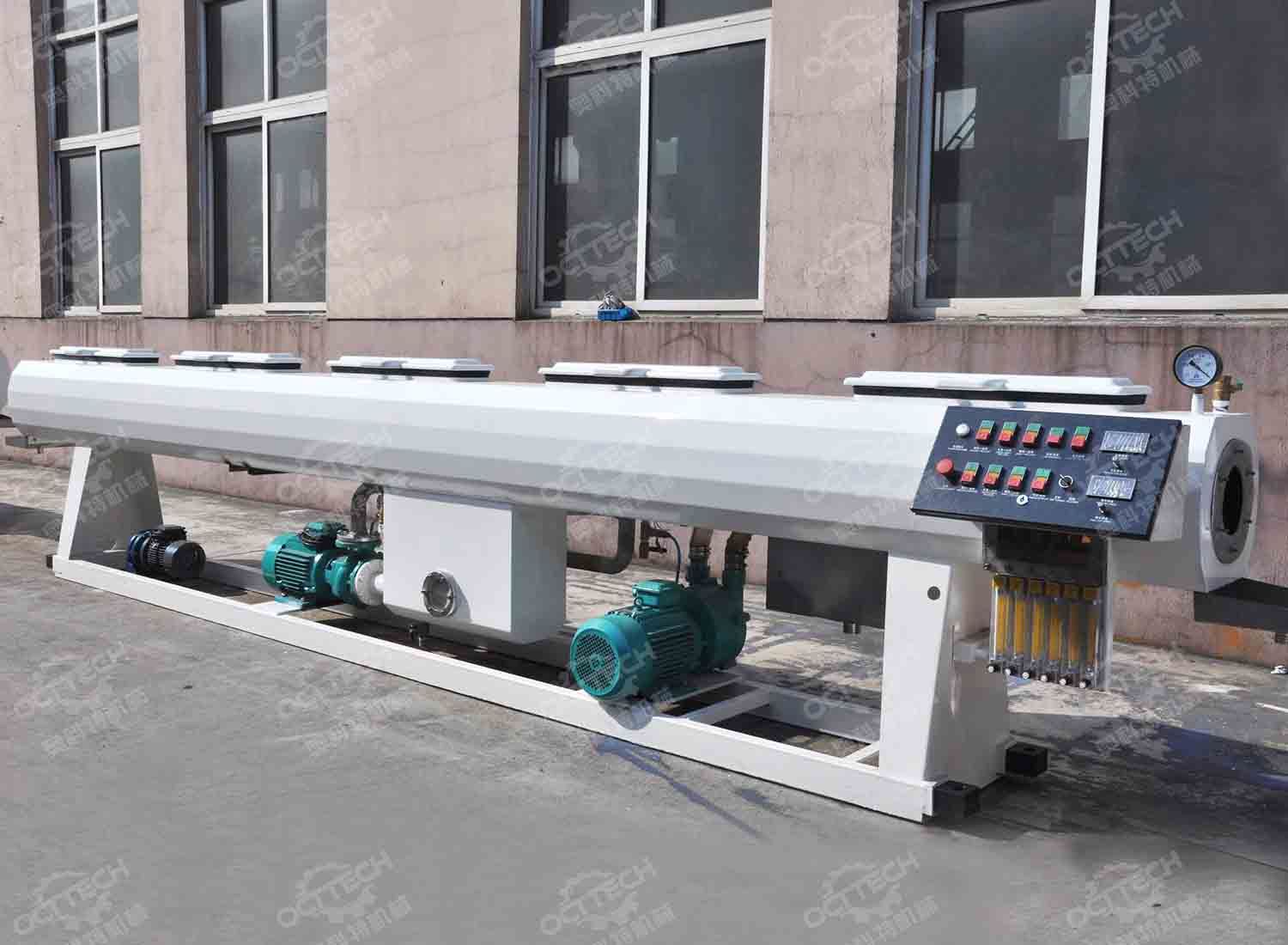

Calibration copper sleeve :Tin bronze
Length: 6000mm
Spray water cooling
Inventer control the speed,and equip with two worm gear reducer

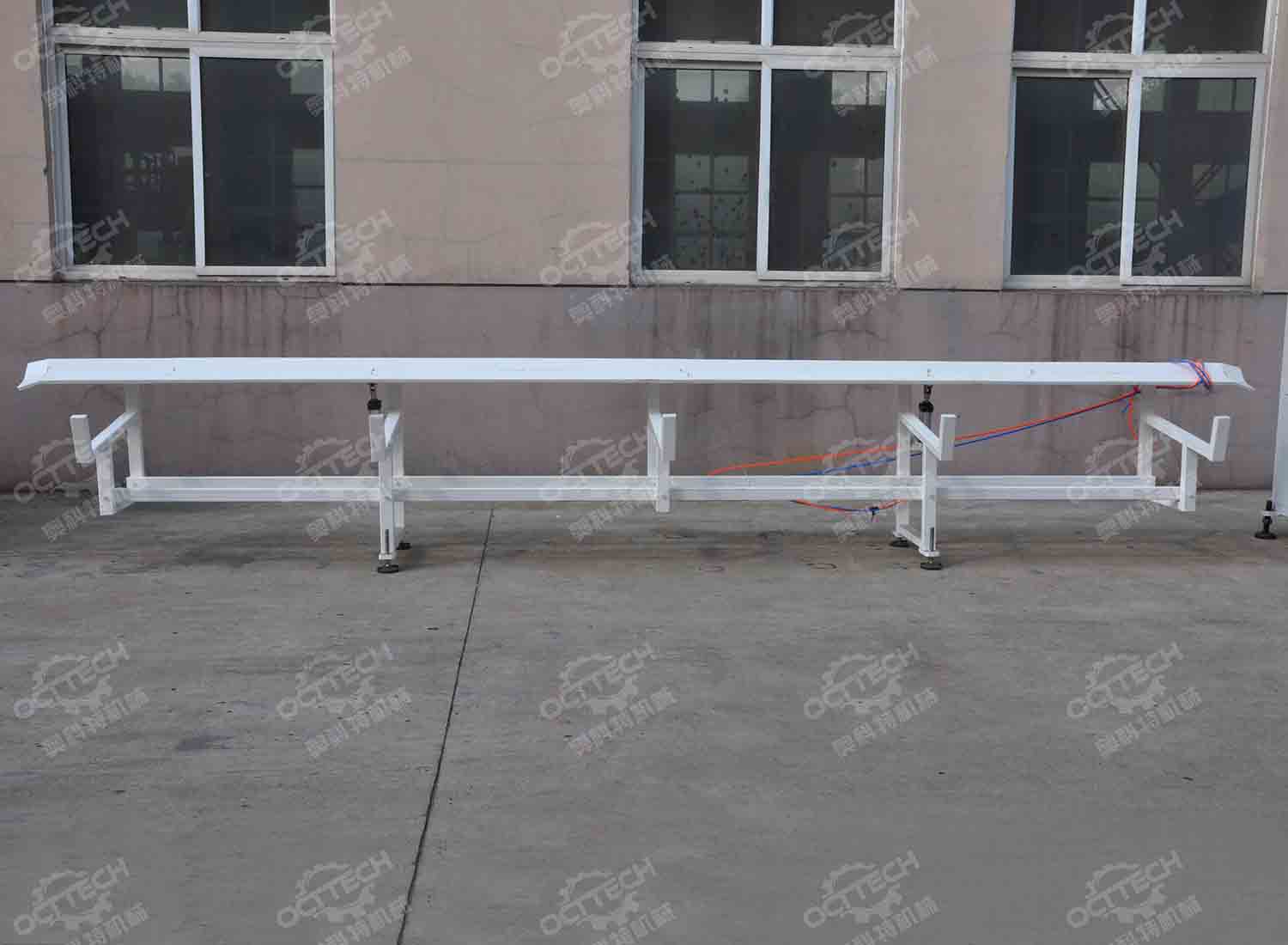

Discharging by cylinder
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
excellent product
