Plastic pipe belling machine

SGK fully automatic pipe belling machine is used to expand PVC pipe Φ63-Φ630mm,adopt PLC control the production,belling type includes U type,R type and square type.This belling machine is designed to
equip with PVC pipe production line,cooling type use air cooling or water cooling,guarantee the high efficiency.

Technical Parameters

Model	SGK160	SGK200	SGK250	SGK315	SGK400	SGK500	SGK630
Pipe diameter(mm)	50-160	63-200	63-250	110-315	160-400	250-500	315-630
Heater(pcs)	1	1	1	1	1	1	1
Heating power(kw)	9.75	11.25	11.25	14.25	24	24	30.4
Total power(kw)	14	15	15	18.5	30	30	38
Pipe length(m)	3-8	3-8	3-8	3-8	3-8	3-8	3-8
Cooling method	Air cooling or water cooling
Compressed air(Mpa)	0.6	0.6	0.6	0.6	0.6	0.6	0.6
Water pressure(Mpa)	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Hydraulic oil	46# wear resistance hydraulic oil

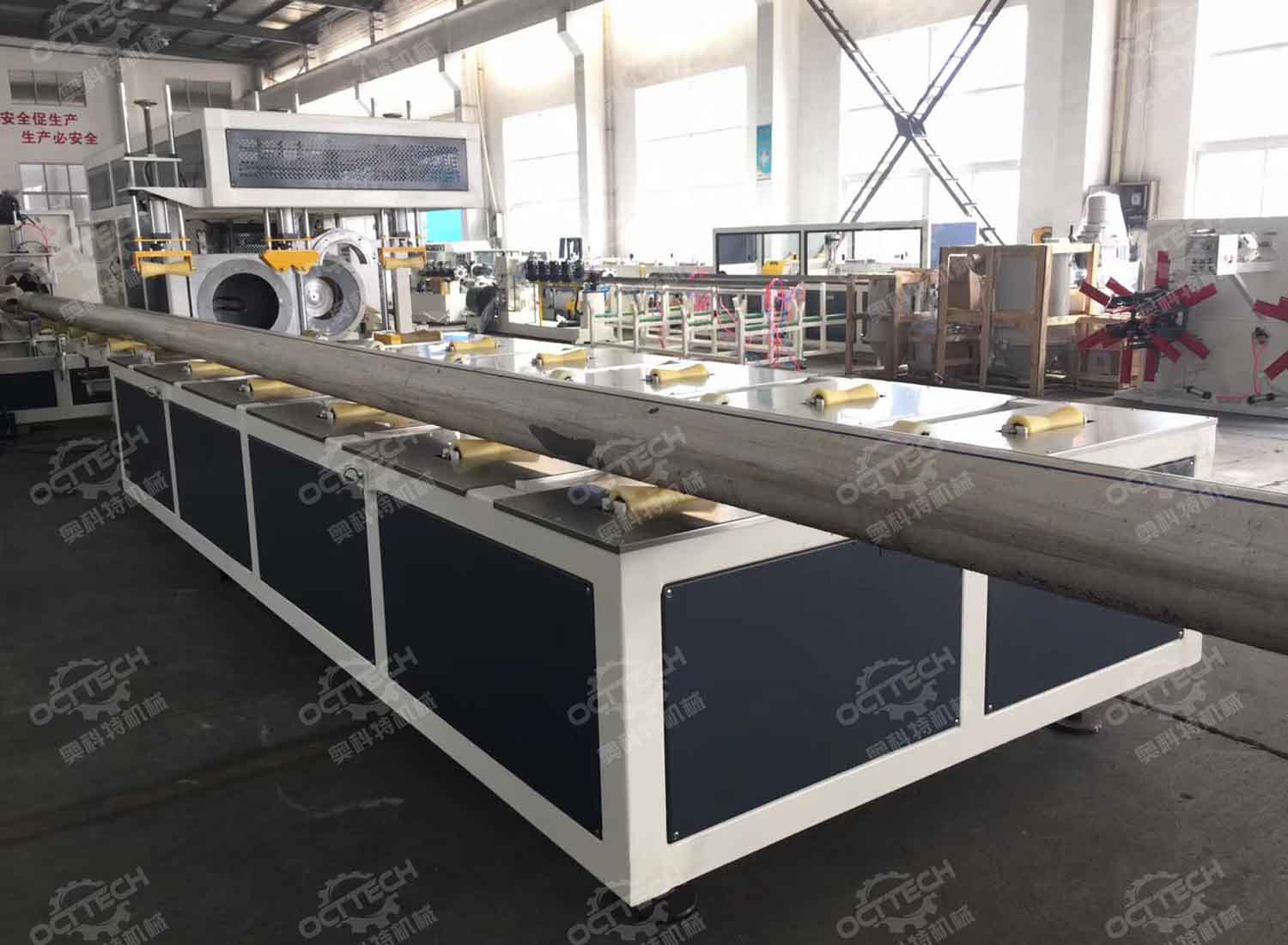

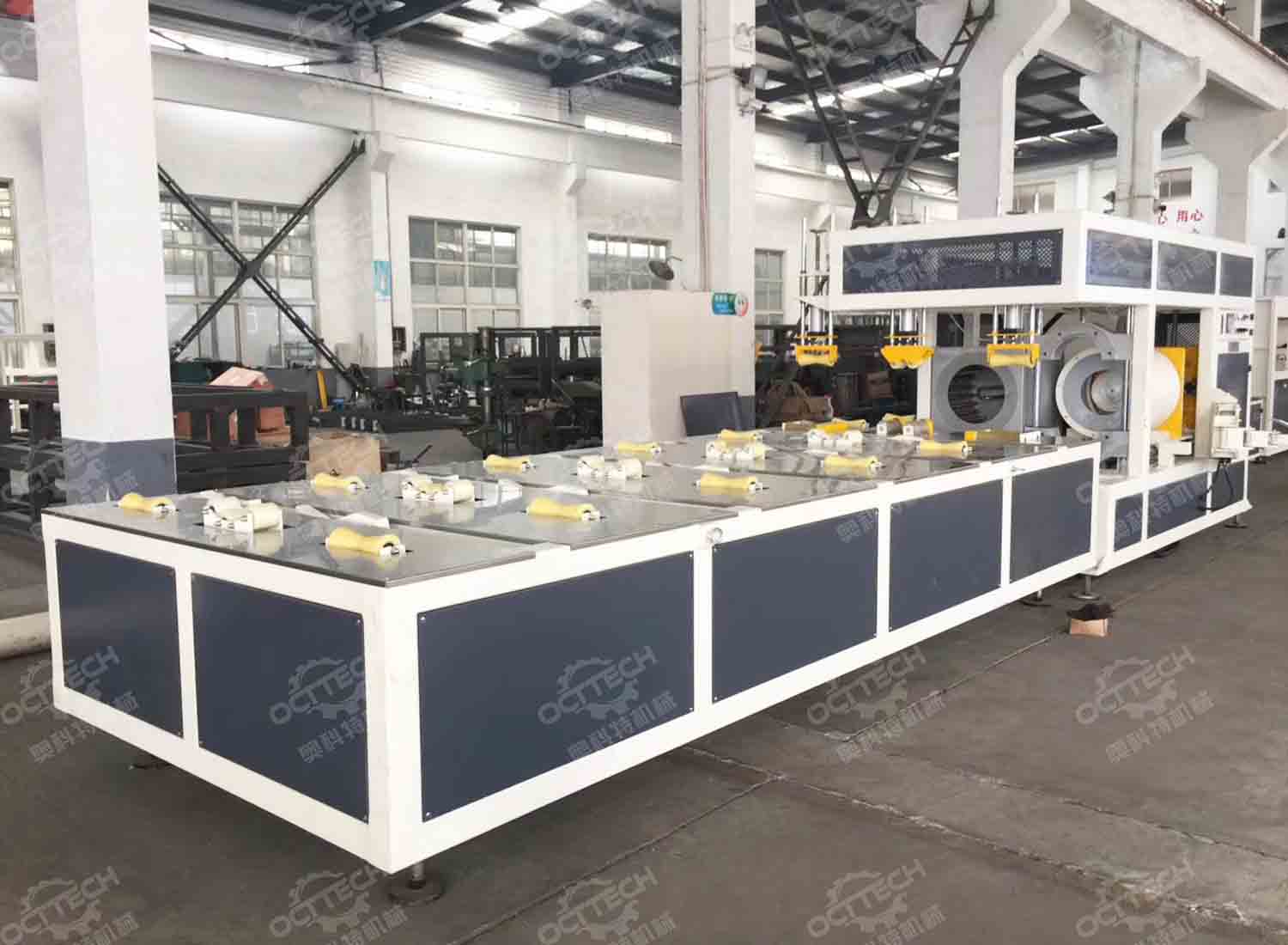

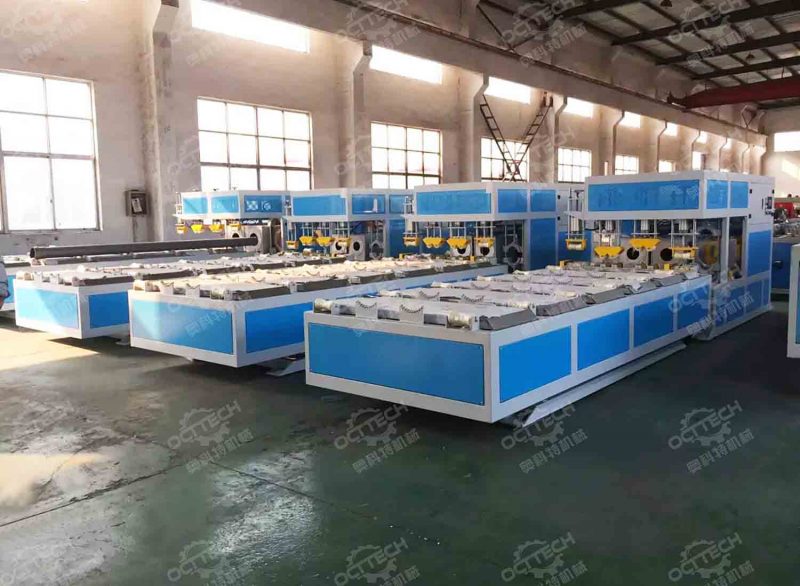

More machine photos
