Plastic agglomerator machine
This plastic agglomerator machine is mainly used for waste thermoplastic thin films, soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other plastic material within 2mm thickness.
The particles can be used for extrusion or injection mould machine directly. It can also be further pelletizied for some special requirements.
Technical Parameters
| Model | GHX-100 | GHX-200 | GHX-300 | GHX-500 | GHX-600 | GHX-800 |
|---|---|---|---|---|---|---|
| Volume(L) | 100 | 200 | 300 | 500 | 600 | 800 |
| Effective Volume(L) | 75 | 150 | 225 | 375 | 450 | 600 |
| Spindle speed(r/min) | 1050 | 1000 | 950 | 750 | 750 | 750 |
| Motor power(kW) | 22kw,37KW | 55kw | 75kw | 90kw | 90kw,110kw | 110kw |
| Machine Weight(kg) | 1000 | 1200 | 1800 | 2500 | 2700 | 3000 |
| Outline dimensions(meter) | 1.7*0.75*1.5 | 1.7*0.85*1.5 | 2*0.85*1.6 | 2.3*0.95*1.7 | 2.3*1.1*1.75 | 2.5*1.25*1.8 |
| Qty. of moving blade(pcs) | 2 | 2 | 2 | 4 | 4 | 4 |
| Qty. of fixed blade | 6 | 6 | 8 | 8 | 8 | 8 |
| Output(kg/h) | 100 | 150 | 200 | 300 | 400 | 550 |

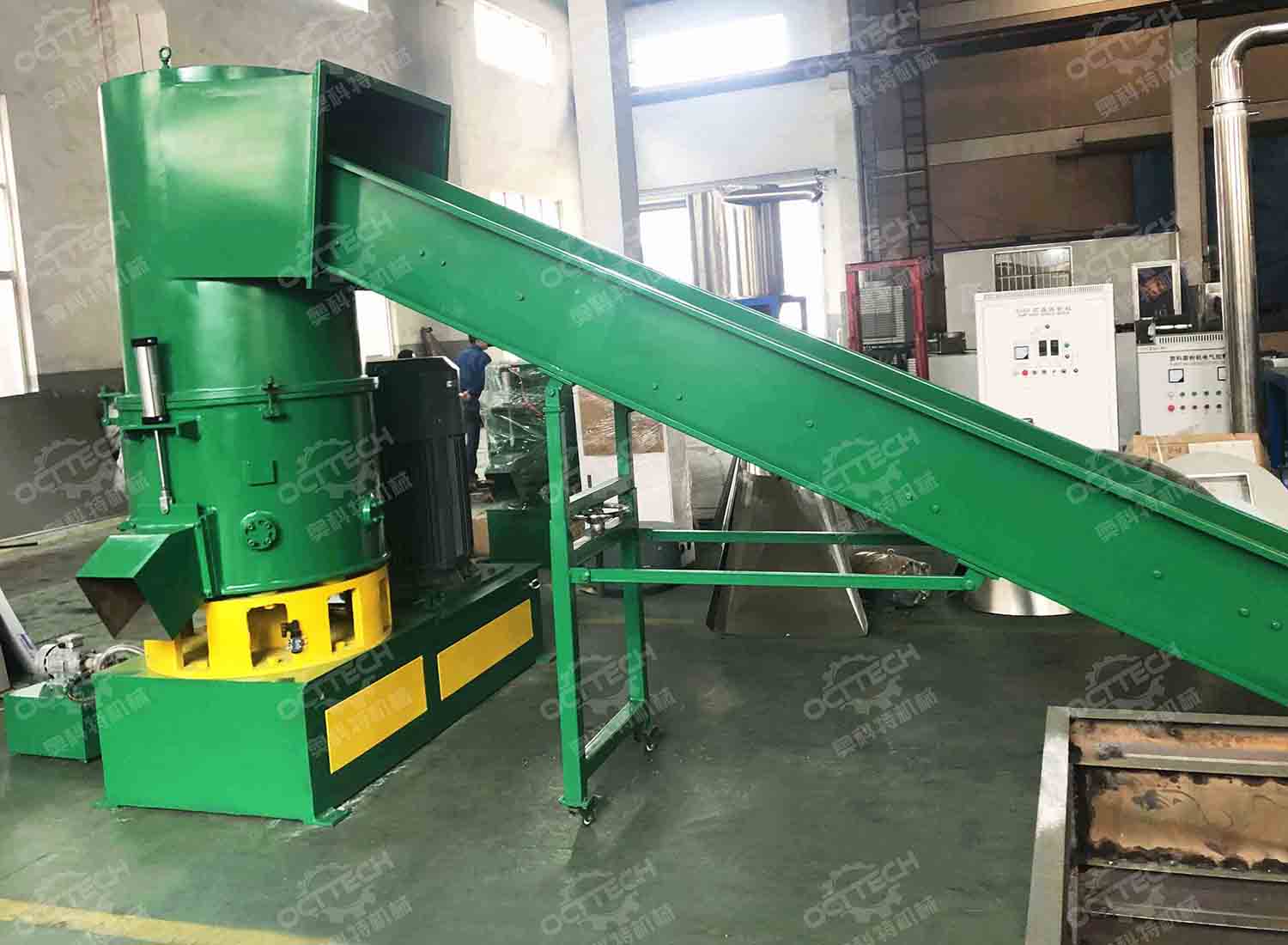

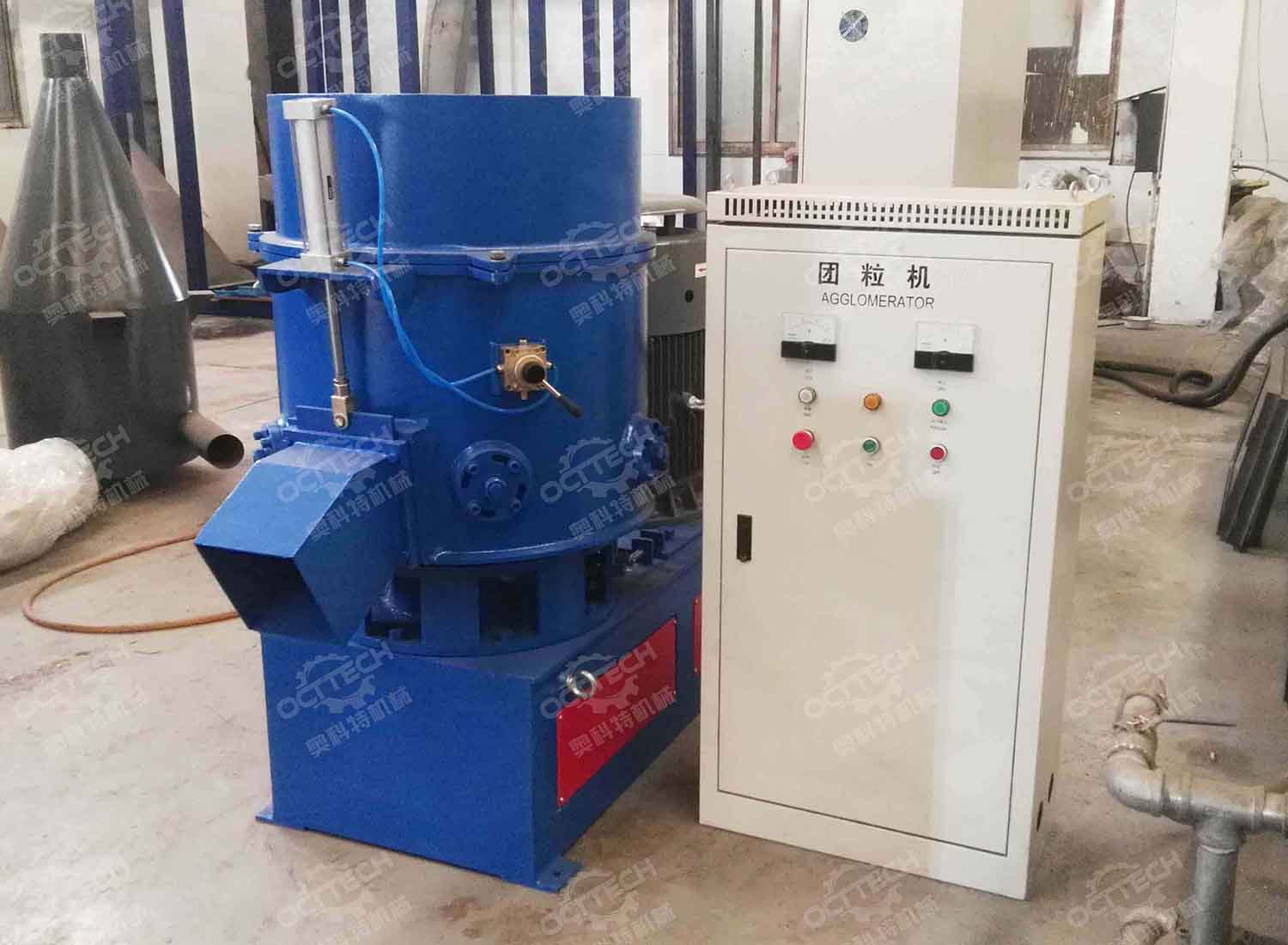

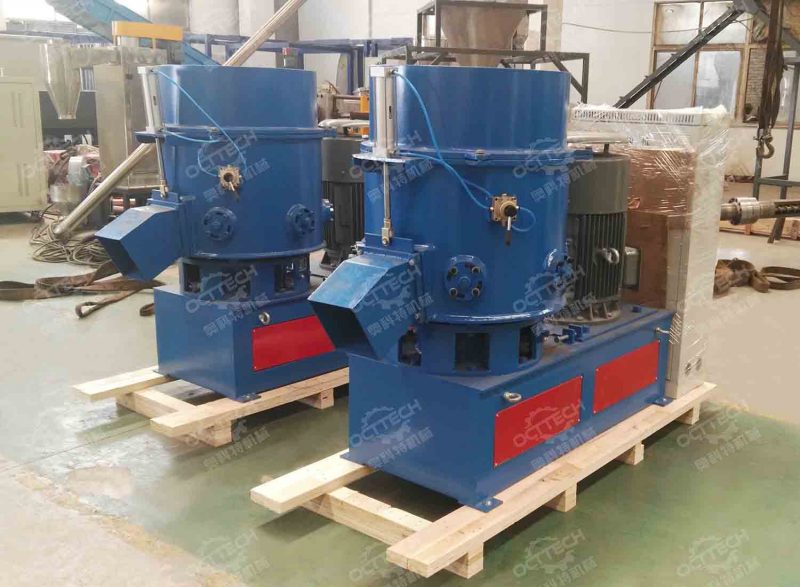

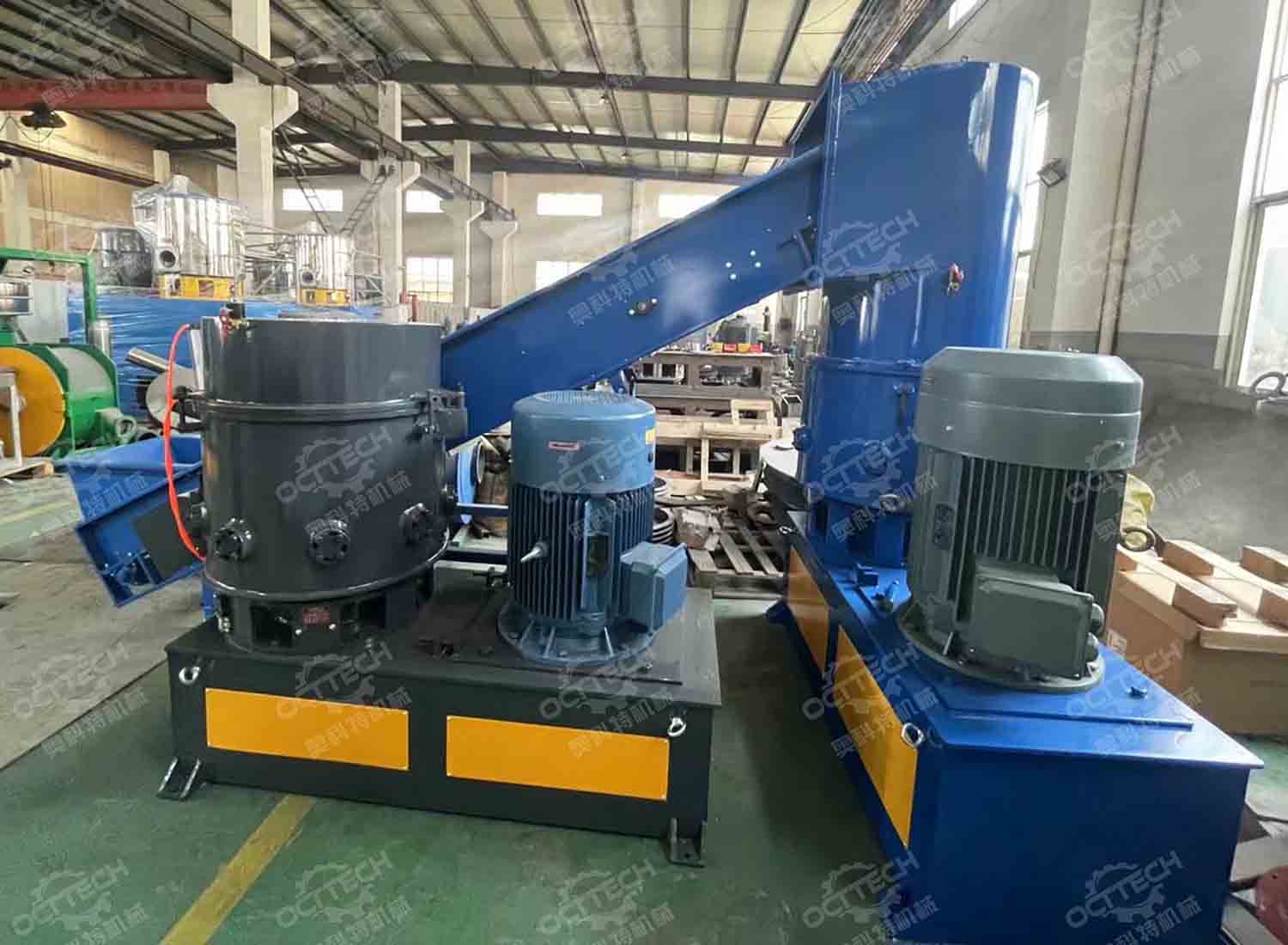

More machine photos
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
