PET Strap plastic extrusion machine

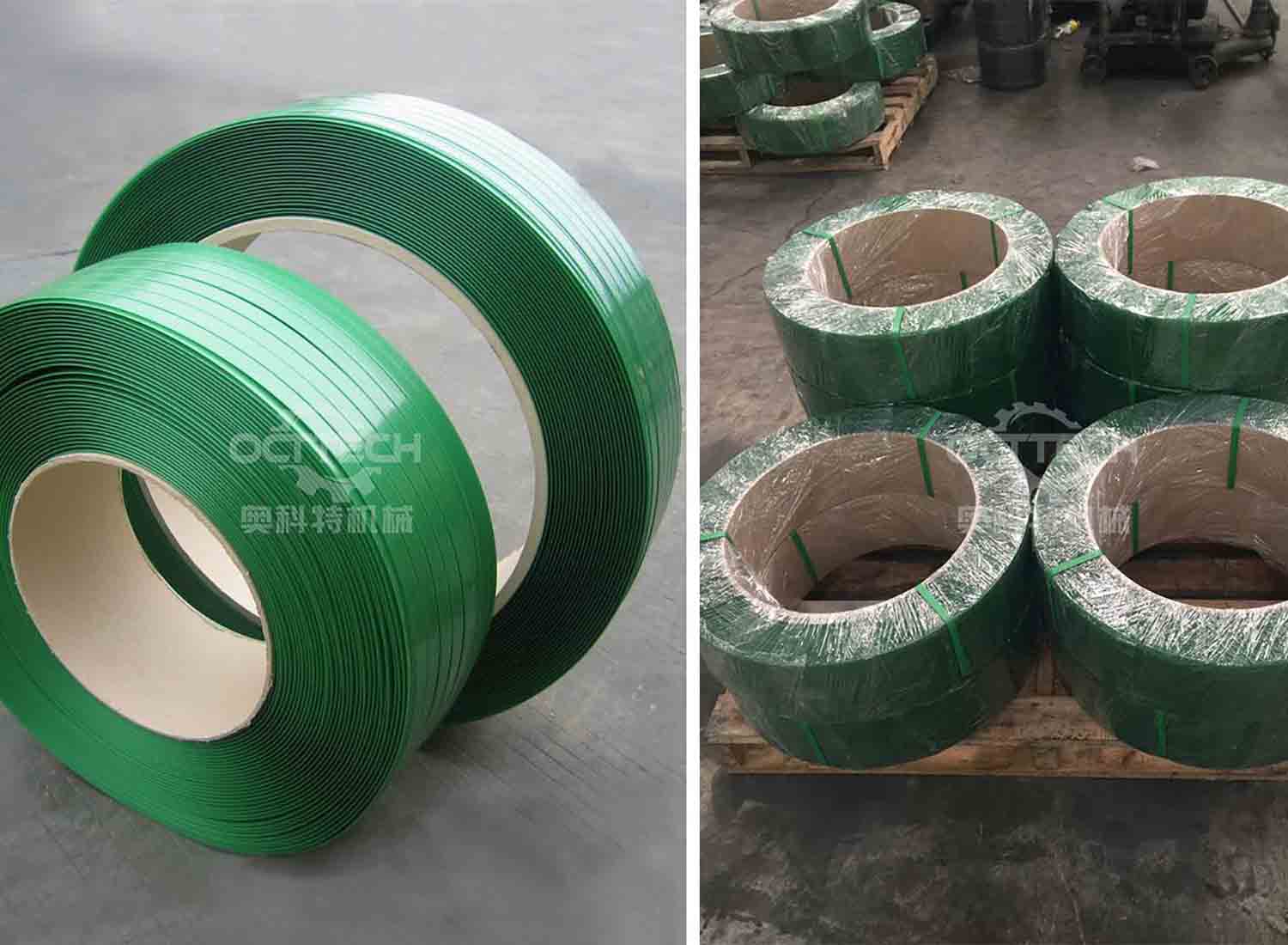

PET PP strap is used as a new environmentally friendly packaging materials in place of steel strap on the world.
It is easy to transport and pack goods,which can help you reduce costs.
PET/PP strap have been widely used in the steel,chemical fiber,aluminum ingots, paper,brick kiln,screw,tobacco industry,electronics,textiles and wood,etc.It is more suitable for long-distance transport use.
Production Features:
(1)Special single screw extrusion technology.
(2) Process 100% recycled PET bottle flakes.
(3) Even plasticization and stable extrusion with PLC automatic control for the full line.
(4) Melt filter with two pistons with air venting design and back flushing.
(5) Number of strap:1,2,4 for choice;Width: 9mm-20mm,Thickness: 0.6mm-1.5mm
(6)Workers: 1-2 workers per shift, 12 hours/shift.
Technical Parameters
| Model single extruder | SJ-65/33 | SJ-75/33 | SJ90/33 |
|---|---|---|---|
| Die head | Single outlet | Single outlet | Double outlet |
| Main Motor(kw) | 22 | 37 | 55 |
| Capacity (kg/h) | 50-100 | 100-150 | 150-200 |
| Width | 5mm-19mm,19-25mm adjustable | ||
| Thickness | 0.6mm-1.2mm adjustable | ||

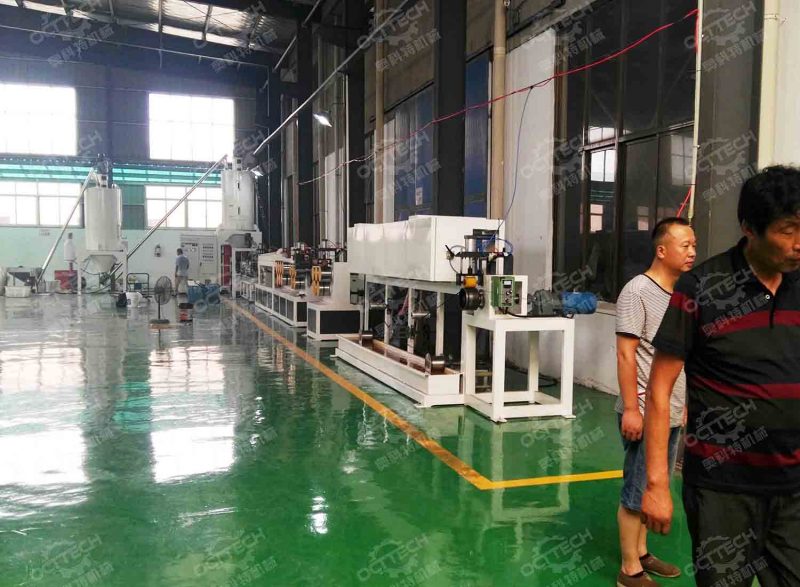

PET Strap plastic extrusion machine Working Flow

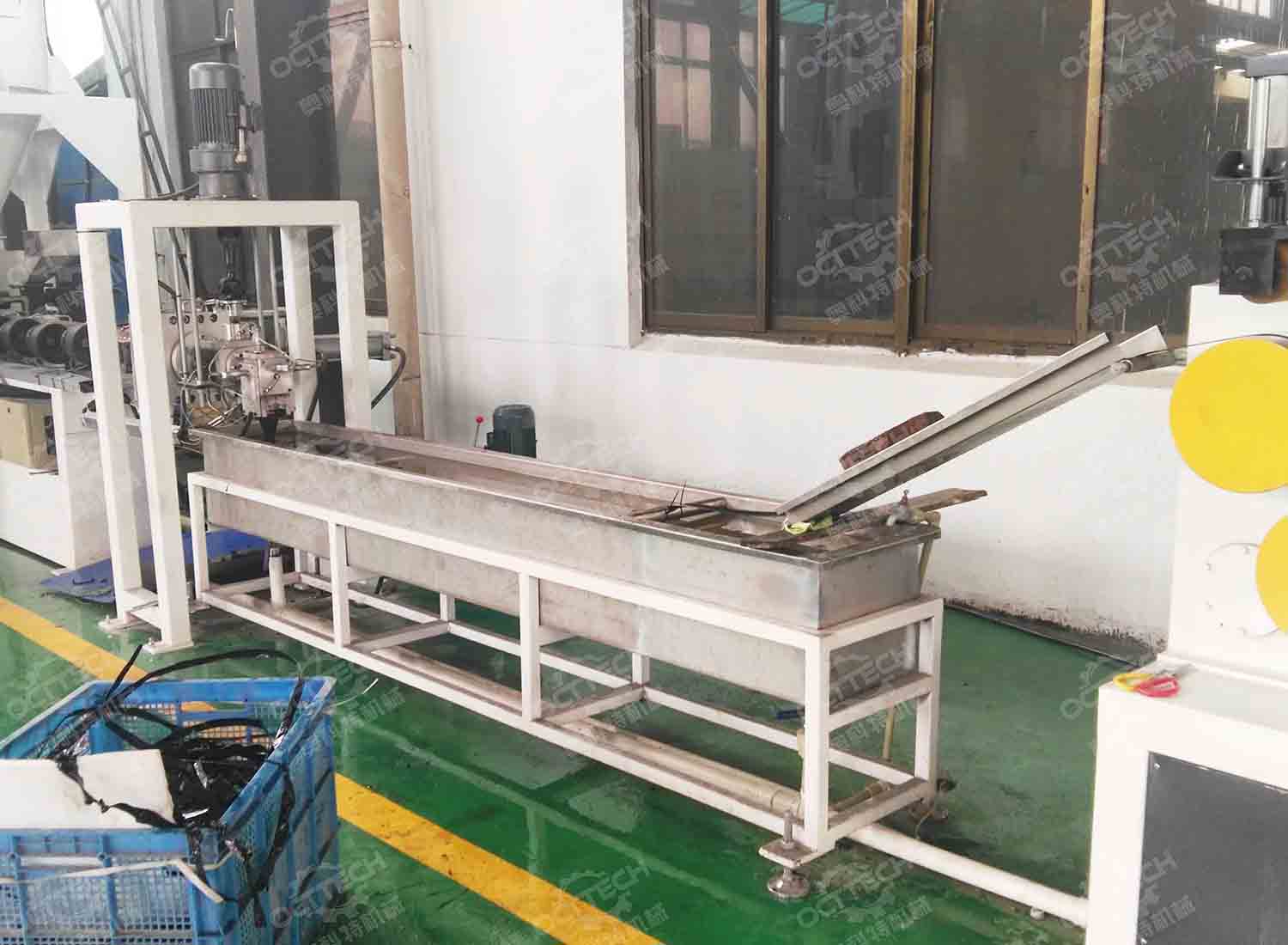

Dehumidification and drying system→Extrusion→Cooling→Heating→Traction→Embossing machine→Calibration oven and water tank→Colier→Electric control cabinet
PET Strap plastic extrusion machine Detail

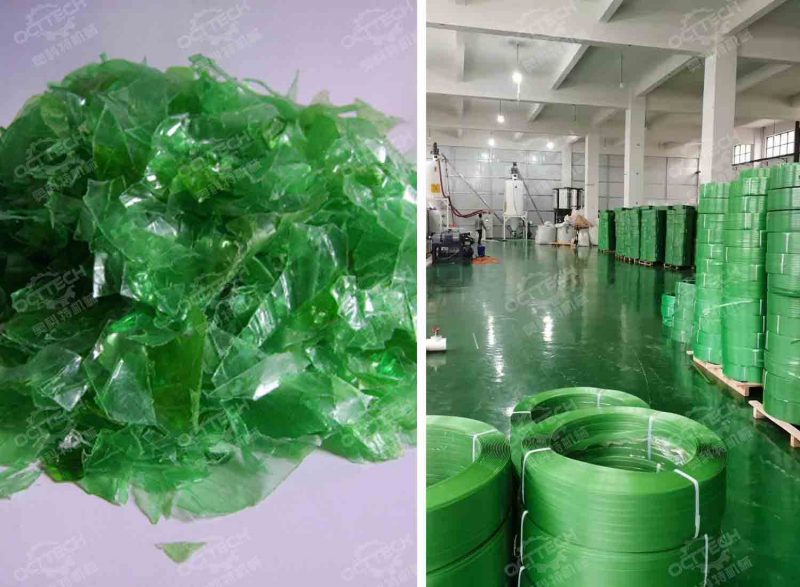

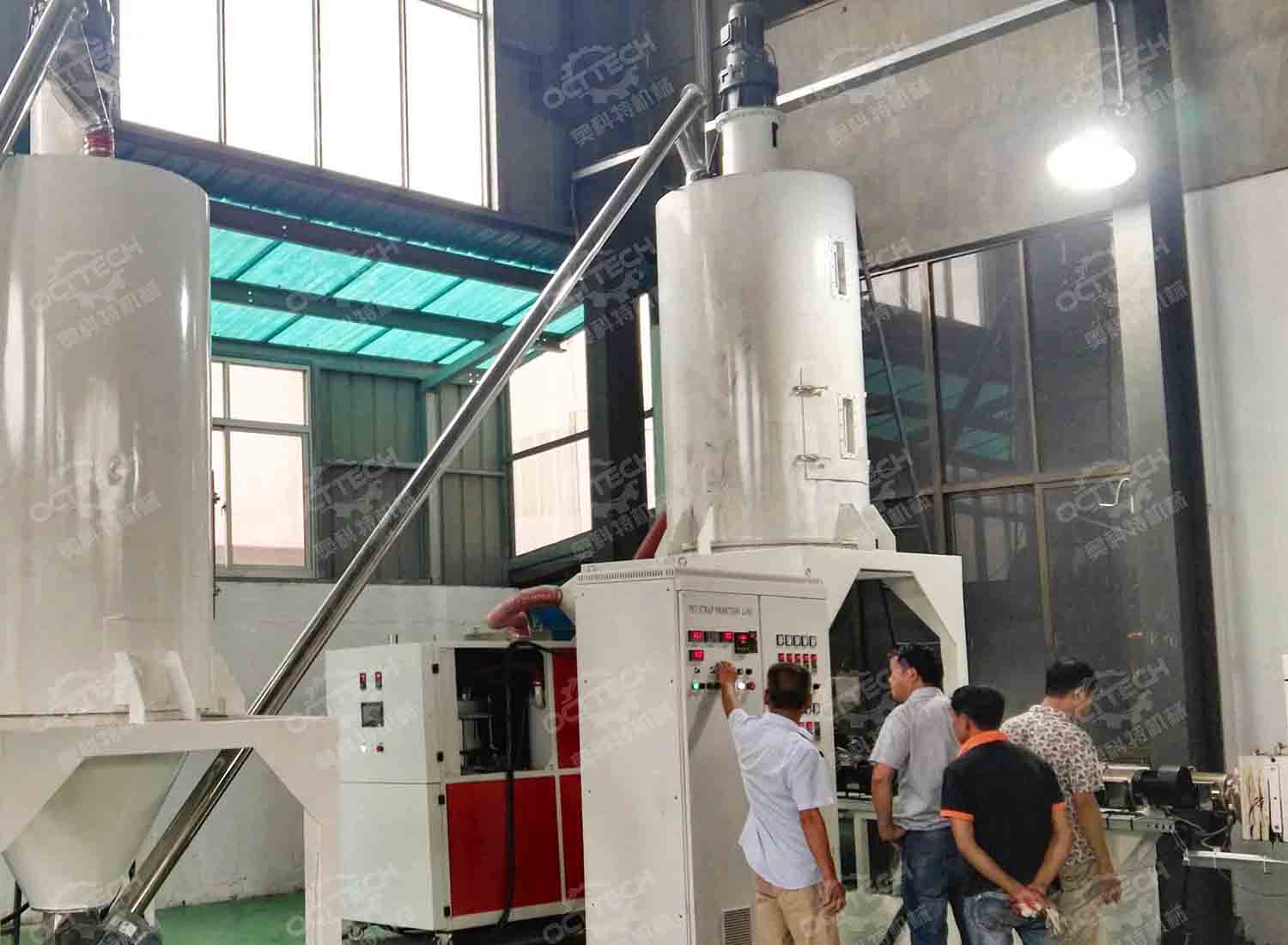

Flake requirements: 10mm~16mm
Dry time: 5-6h
Drying tower volume:2500L
Heating ring material:Cast aluminum

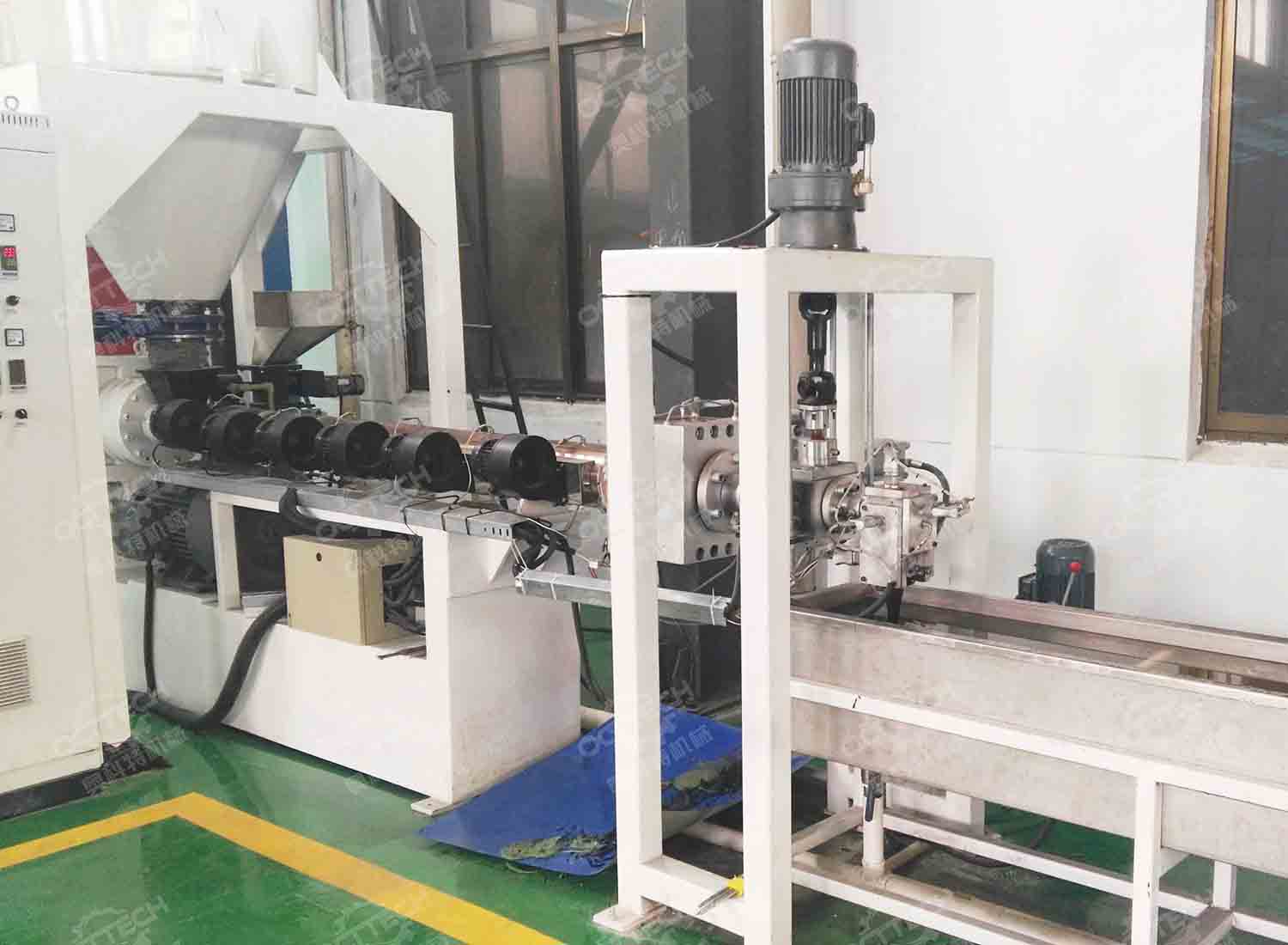

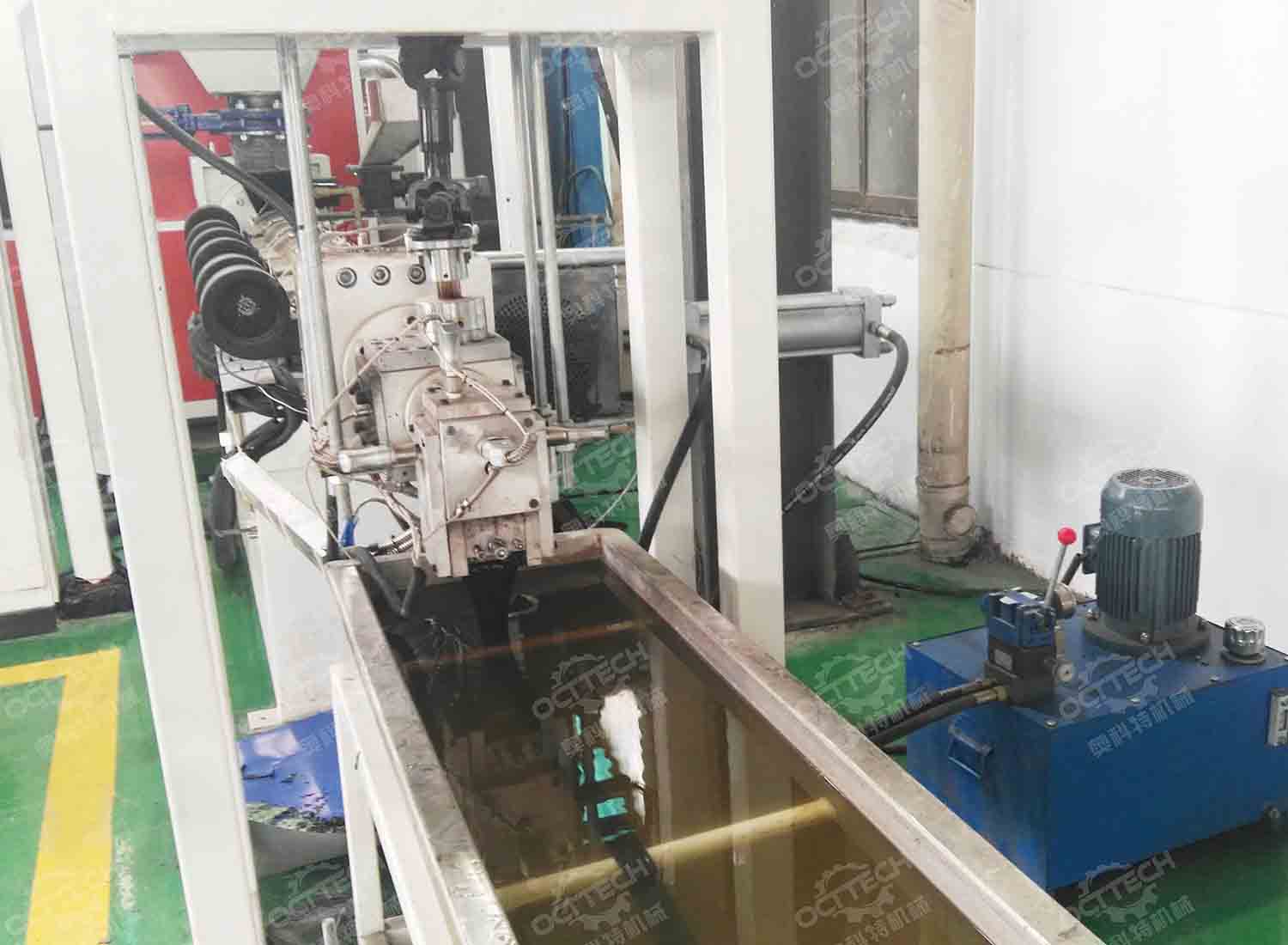

Mould can be one strap,two strap or four straps according to the capacity
Material: Stainless steel

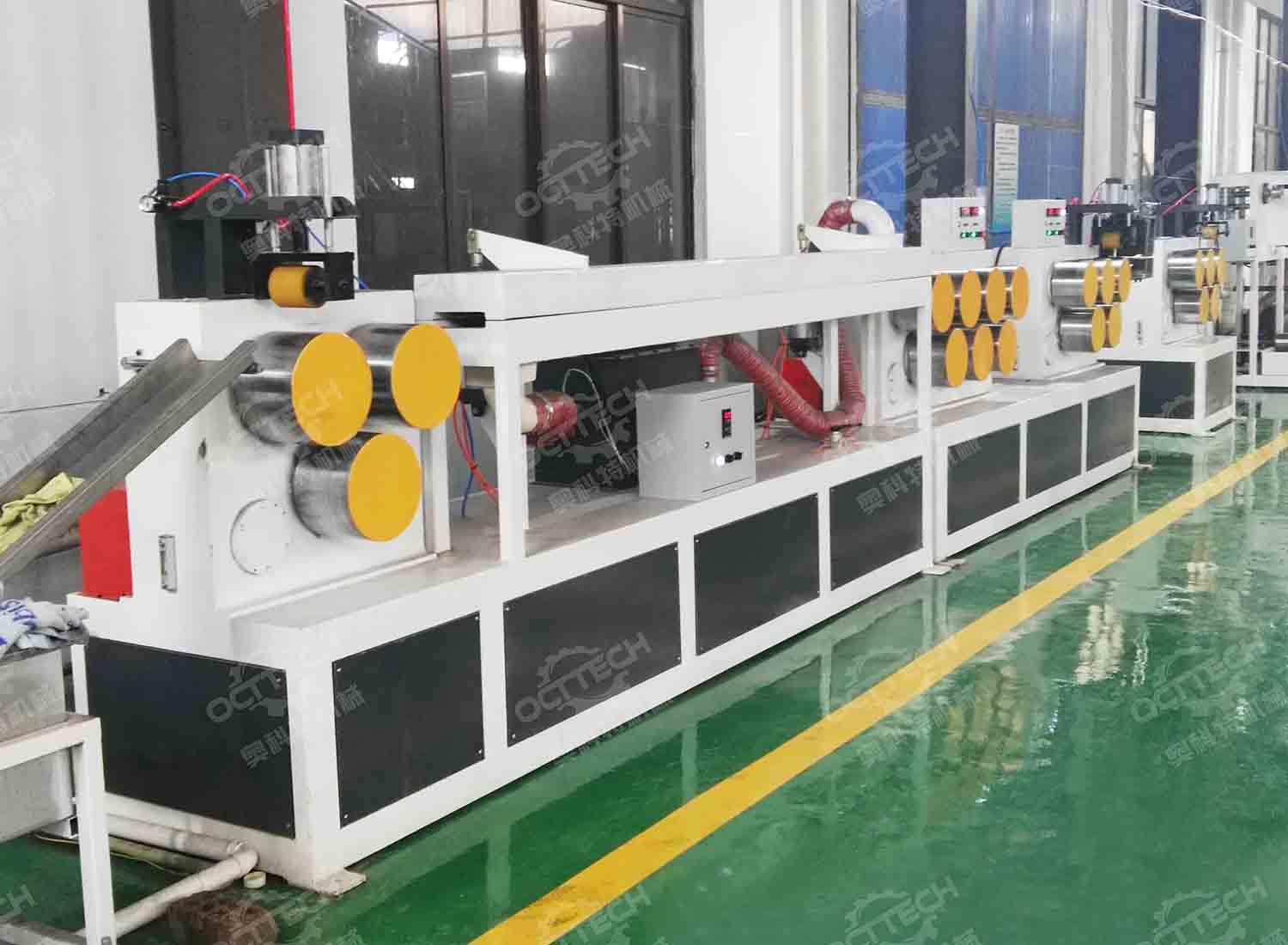

Rise and down roller group

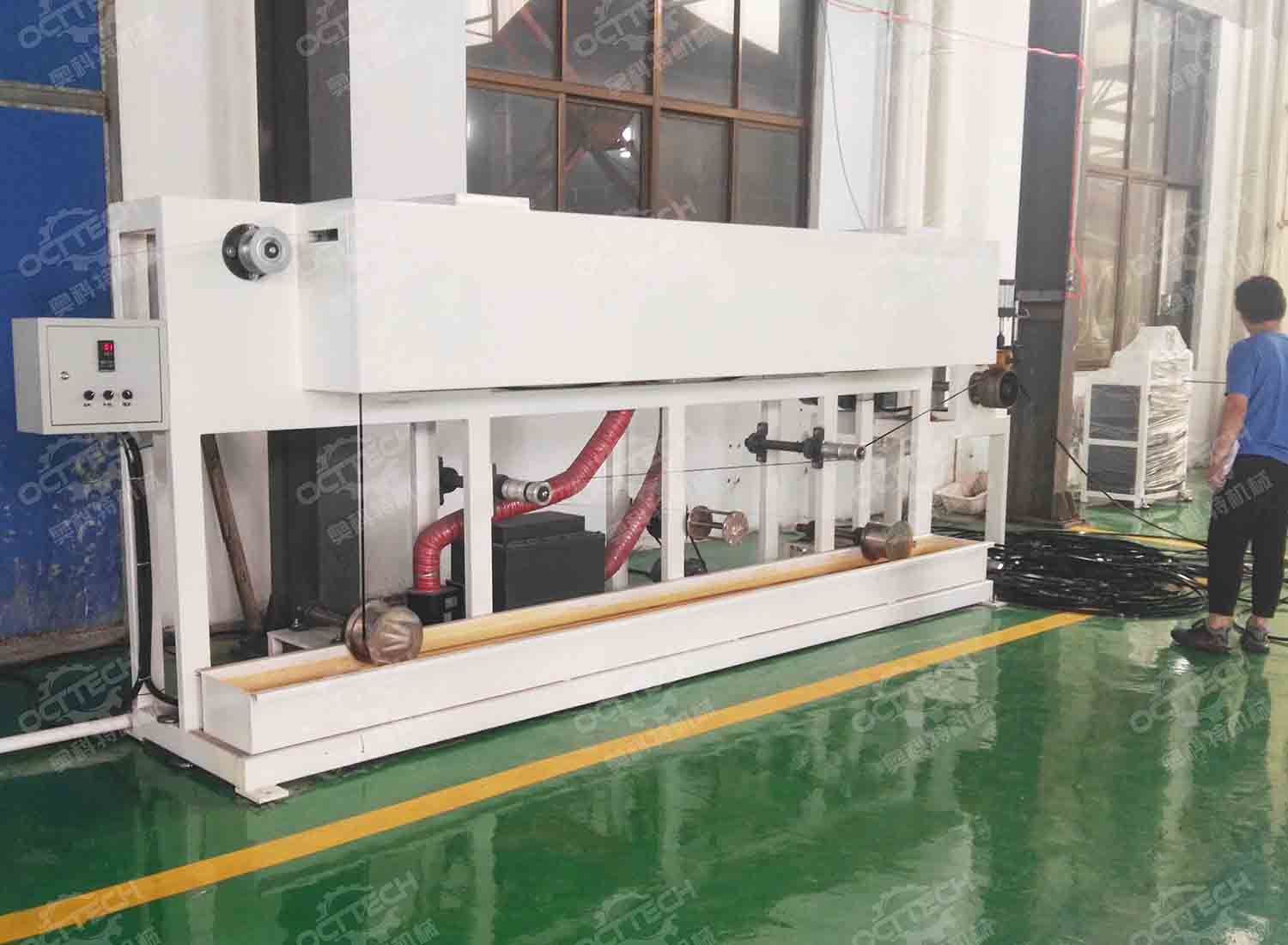

Temperature control system
Heating method is controlled by pressure regulator

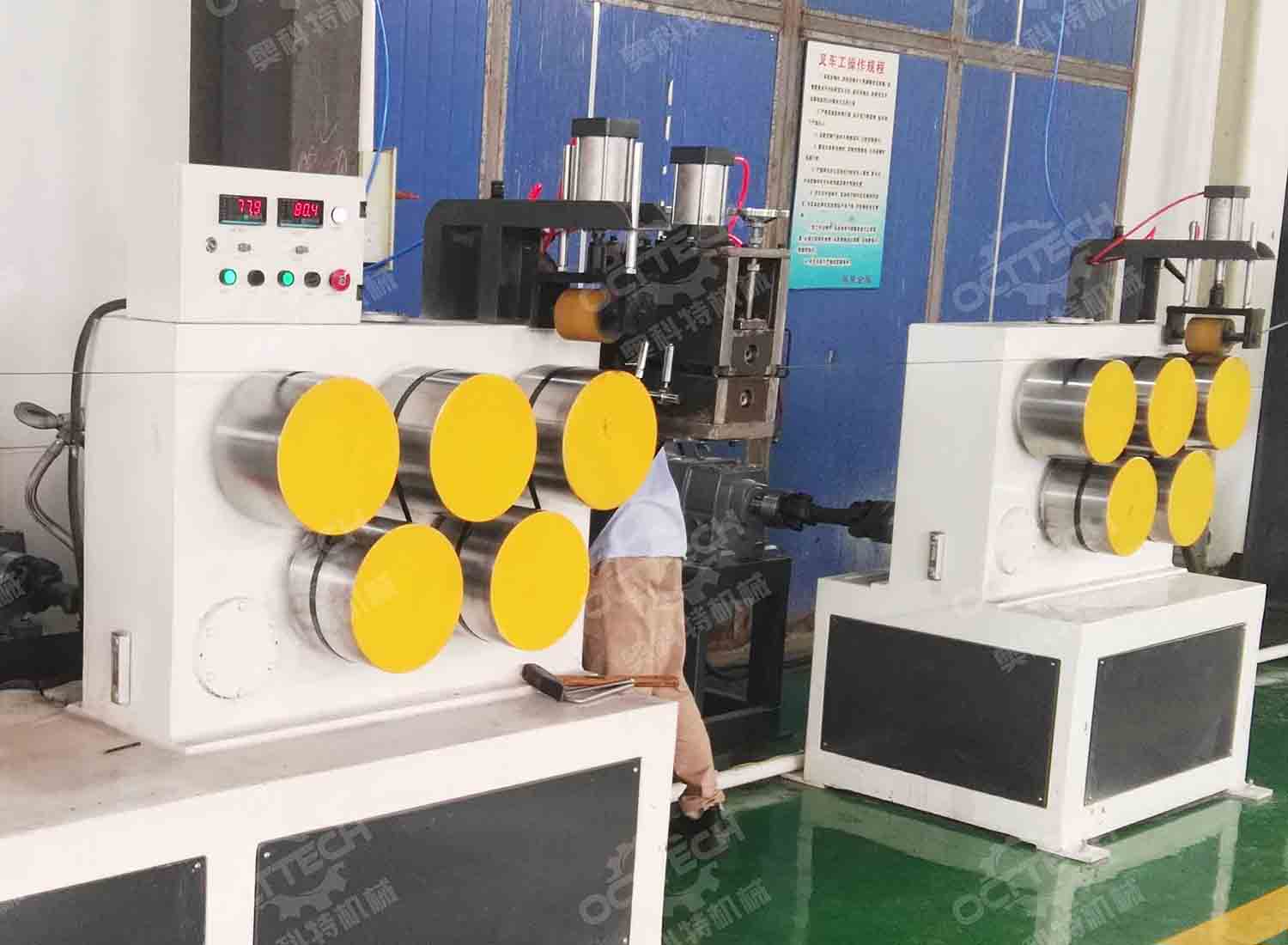

Embossing Press method:By manual,easy to control and adjust the pressure
Embossing machine speed controlled by Inverter
Material of the case: A3 machining

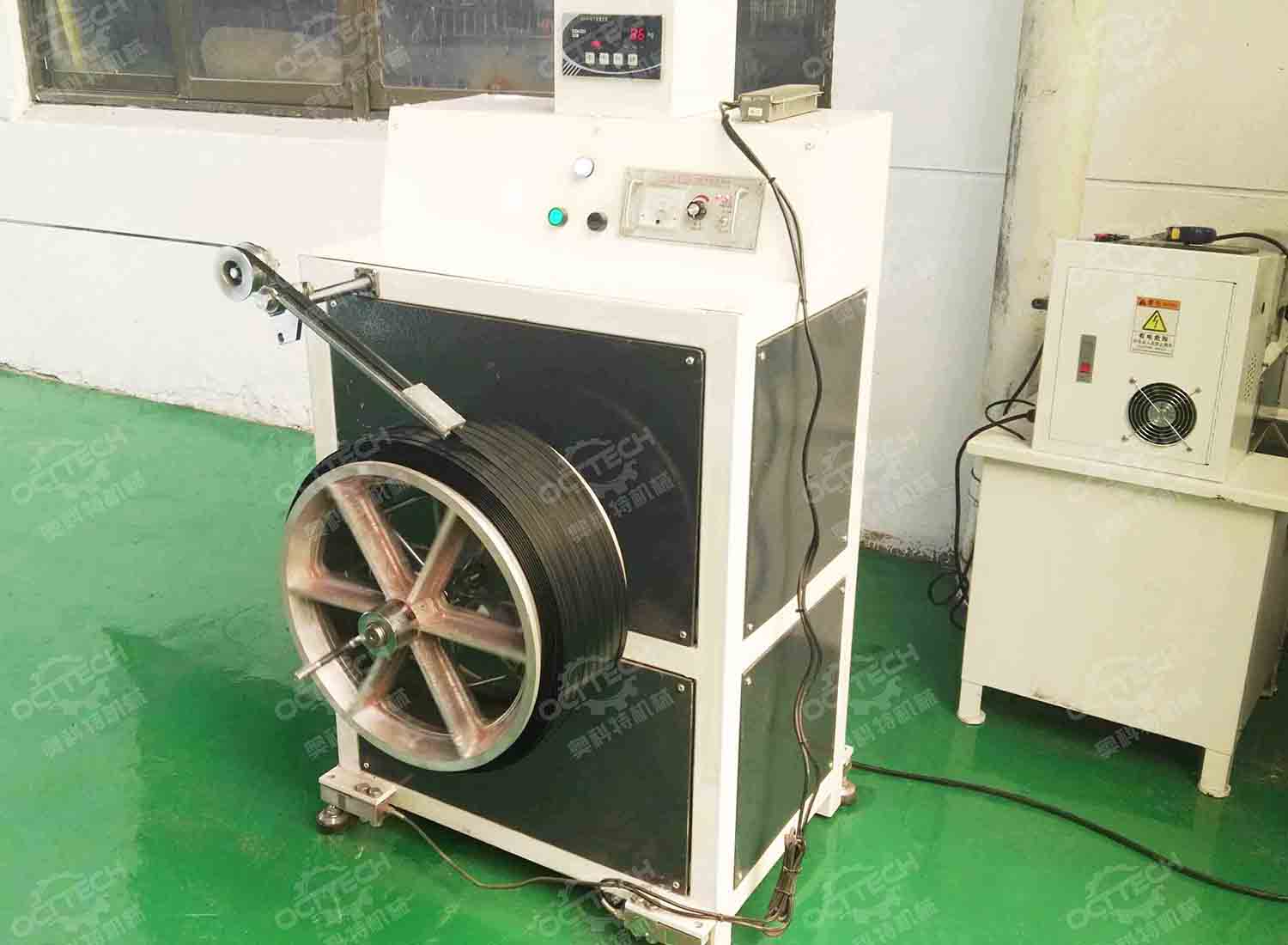

Can count the weight of the final strap
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
