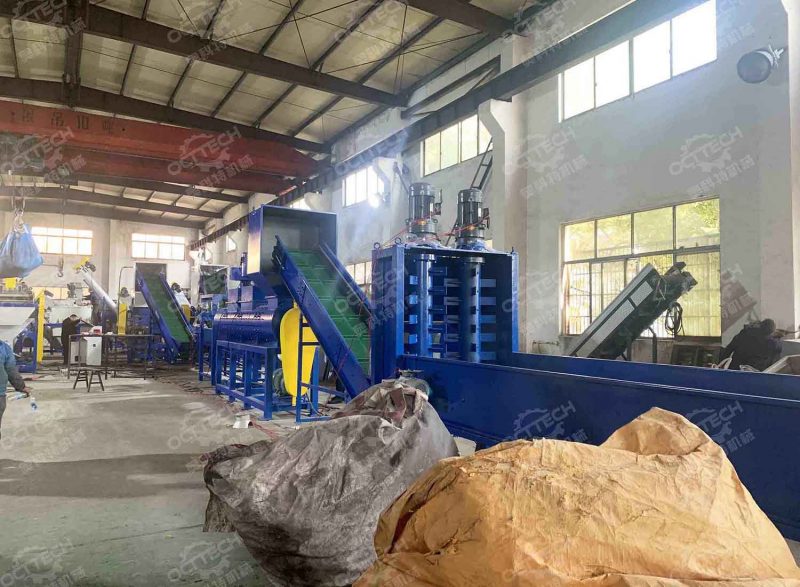

PET bottle washing recycling line
Waste PET bottles are the largest part of the world plastic recycling raw material market.After cleaning and recycling,PET recycled bottle pieces can be widely transformed into a variety of products.OCTTECH has been focusing on the research of PET recycling for many years, continuously improving and developing PET cleaning and recycling technology,and maximizing the regeneration and utilization of PET bottles. Usually,we process complete PET bottles through the following steps:sorting,crushing,washing,and drying.
Technical Parameters
| Capacity(kg/h) | Power consumption(kw) | Water Consumption(ton/h) | Labor Required | Humidity |
|---|---|---|---|---|
| 300kg/hour | 150 | 3 | 4 | ≤1% |
| 500kg/hour | 230 | 4-5 | 4 | ≤1% |
| 1000kg/hour | 270 | 6-7 | 5-6 | ≤1% |
| 2000kg/hour | 370 | 8-10 | 8 | ≤1% |
PET bottle washing recycling line Working Flow
De-baler→Belt conveyor→Trommel→Belt conveyor→Mechanical Label remover→Manual sorting system→Crusher→Floating washer tank→Screw loader→Hot washer→High speed friction washer→ Floating washer tank→Dewatering machine→Pipe drying→Zig zag air classification label separator→Storage silo→Control cabinet
PET bottle washing recycling line Detail

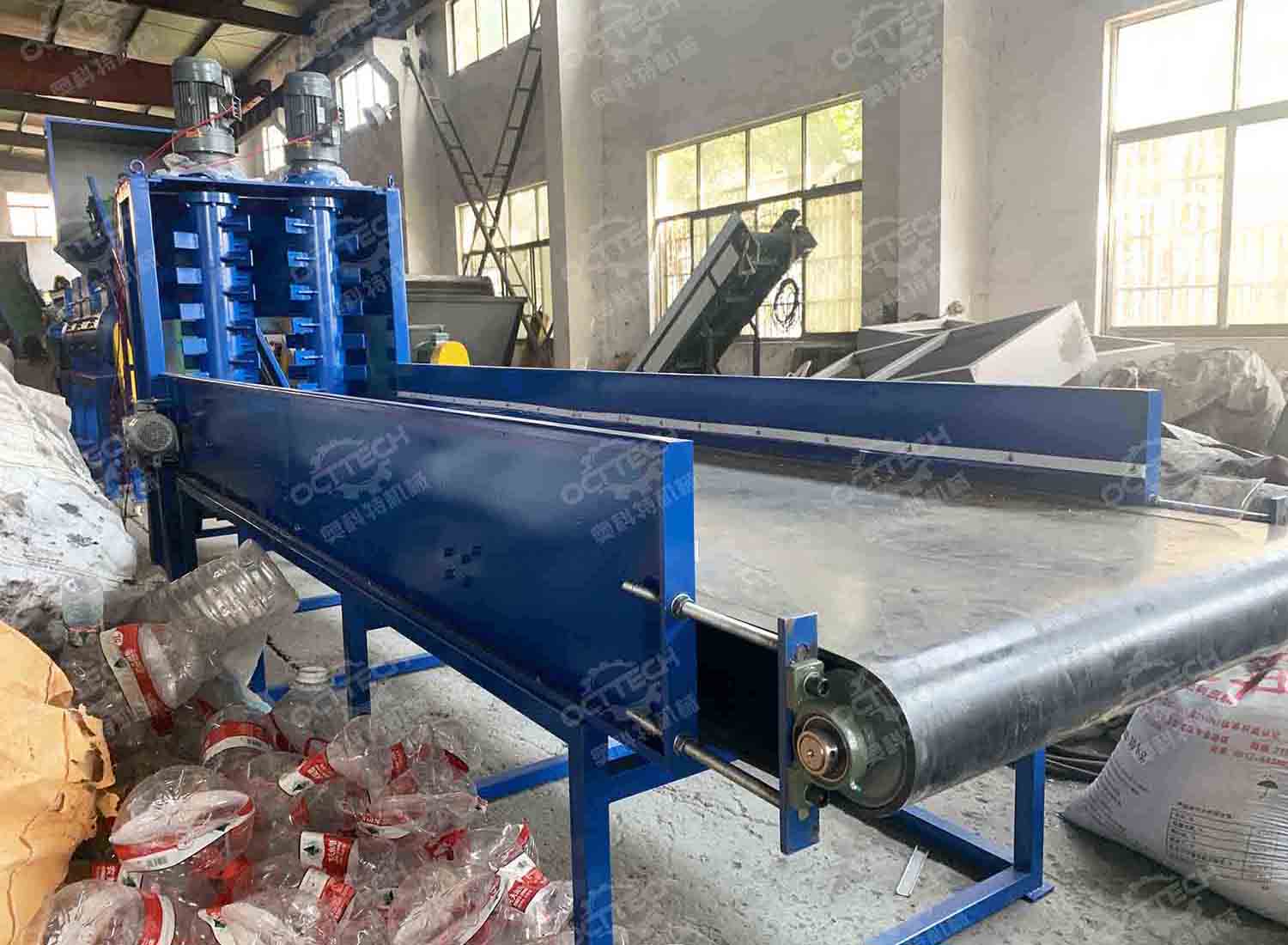

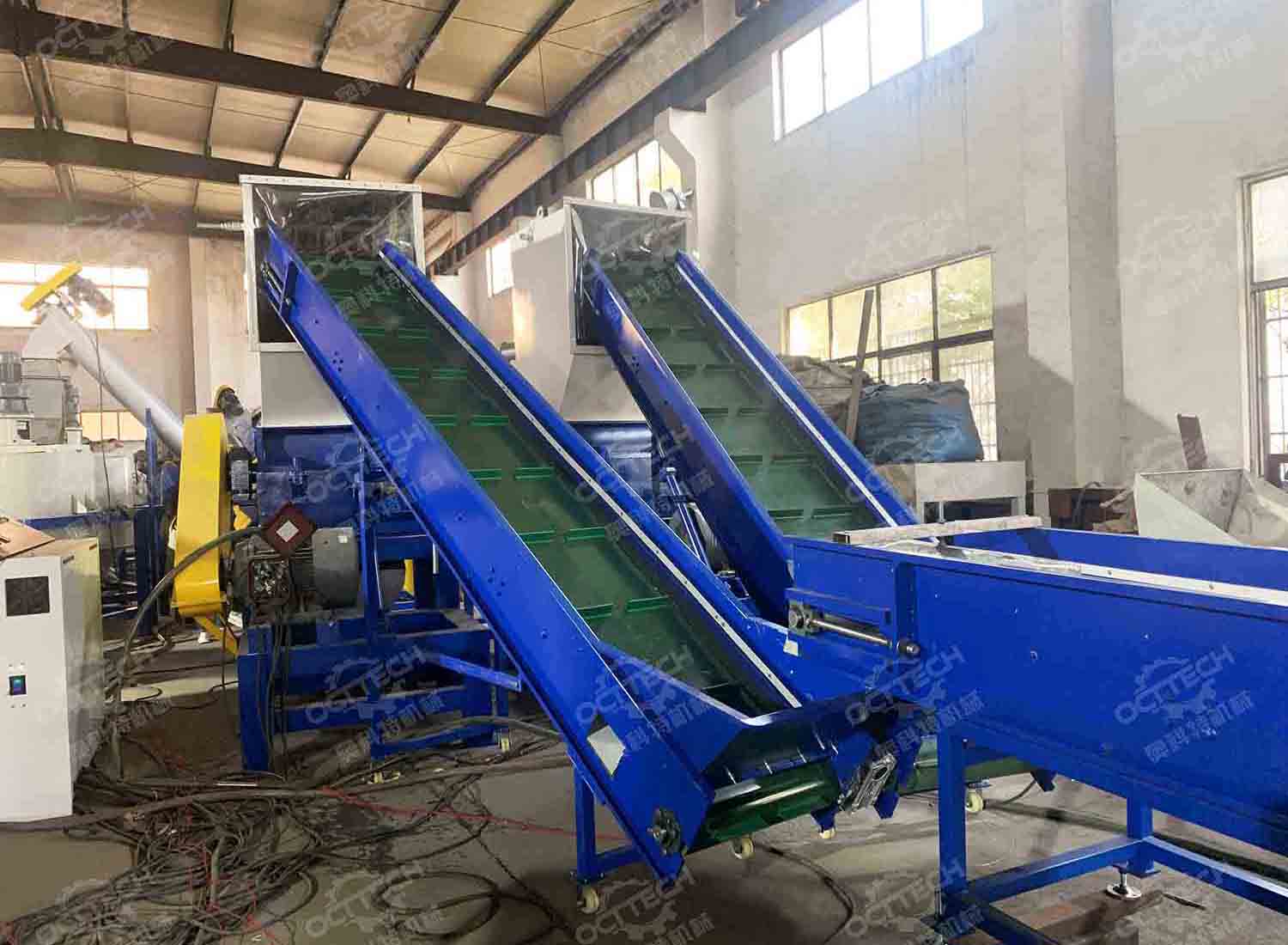

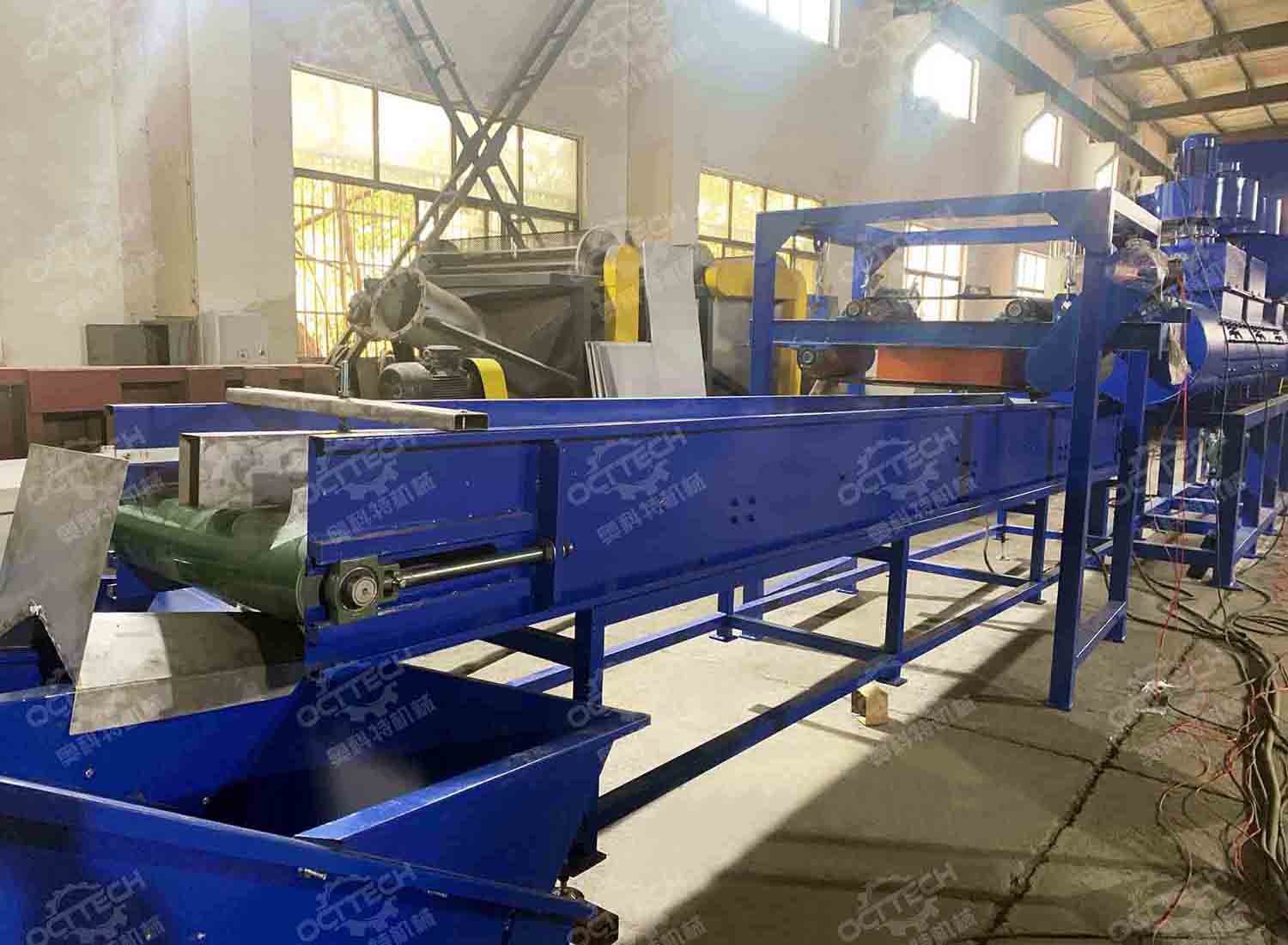

Width:1200mm
Length: 6000mm
Belt material:rubber

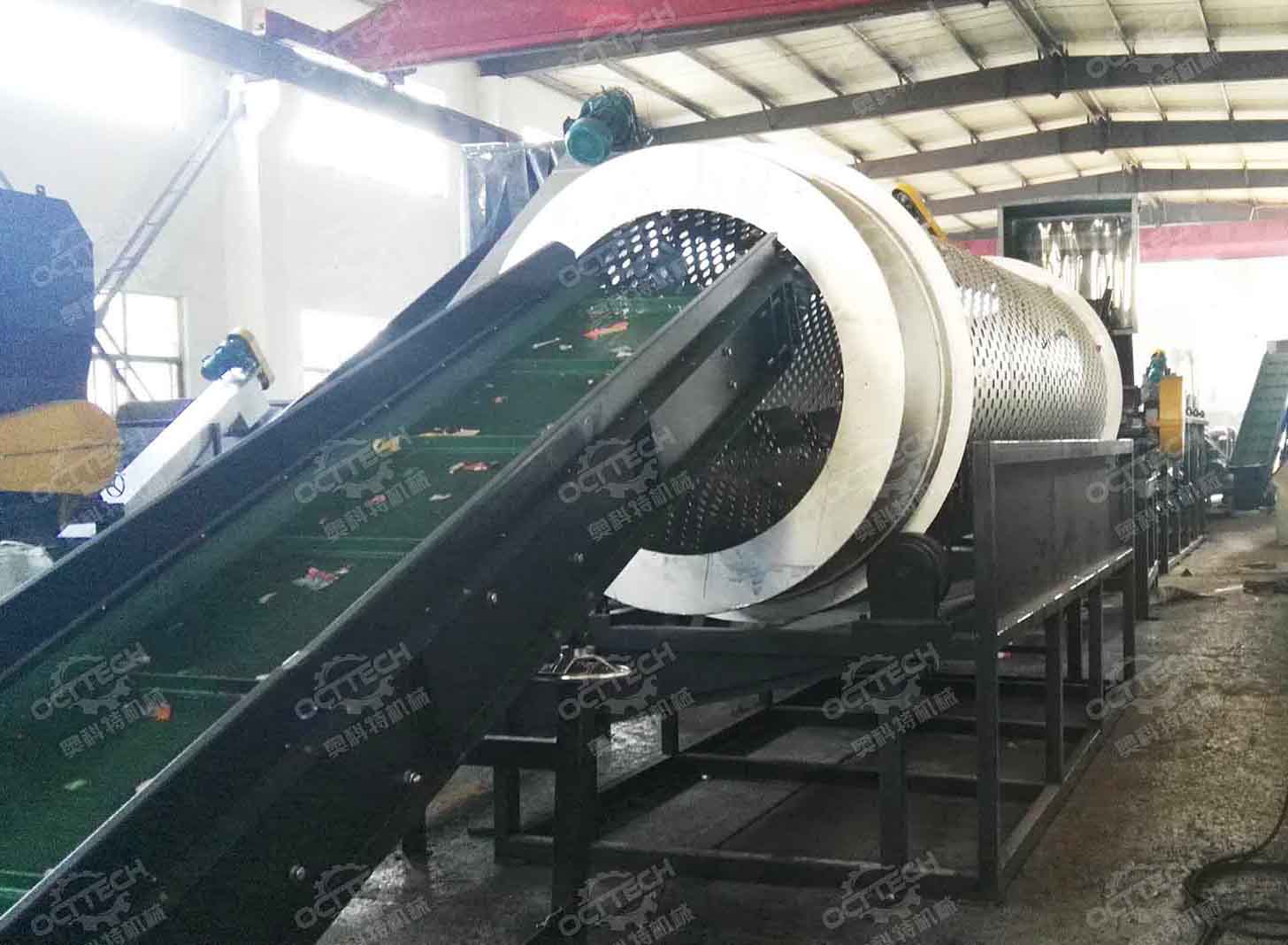

Diameter of barrel:1500mm
Length:5000mm,Motor power:4KW
The hole diameter:50mm
No flakes waste and no water consumption.
Motor power:22KW
Suction fan power:3kw*2
Basic material of belt: PVC
Function: Equipped above the conveyor belt,used to remove iron,chromium,manganese and other ferrous.
Power:0.4KW

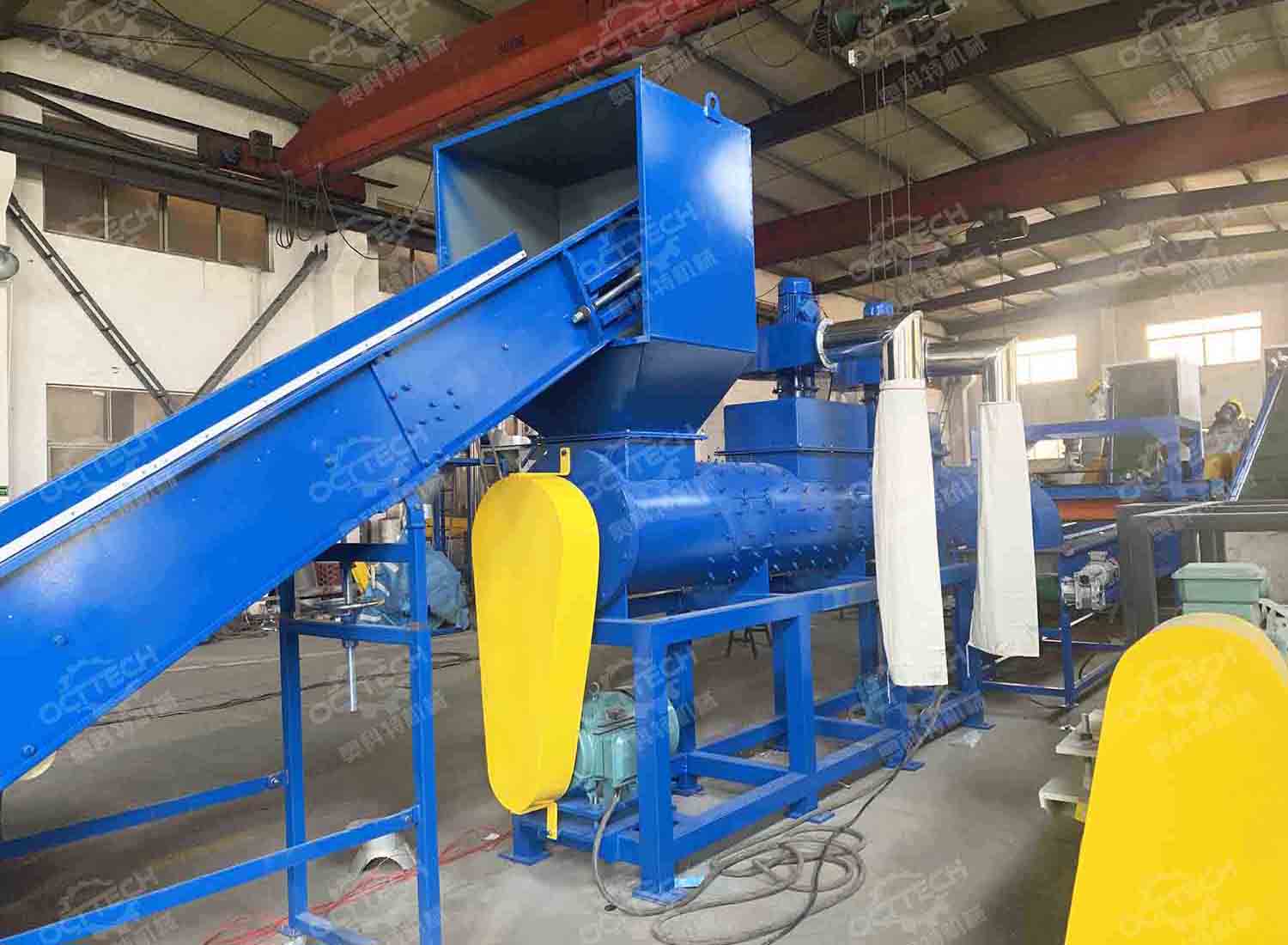

With water to clean material and cool blades during crushing.
Large materials are processed into small pieces in this module.

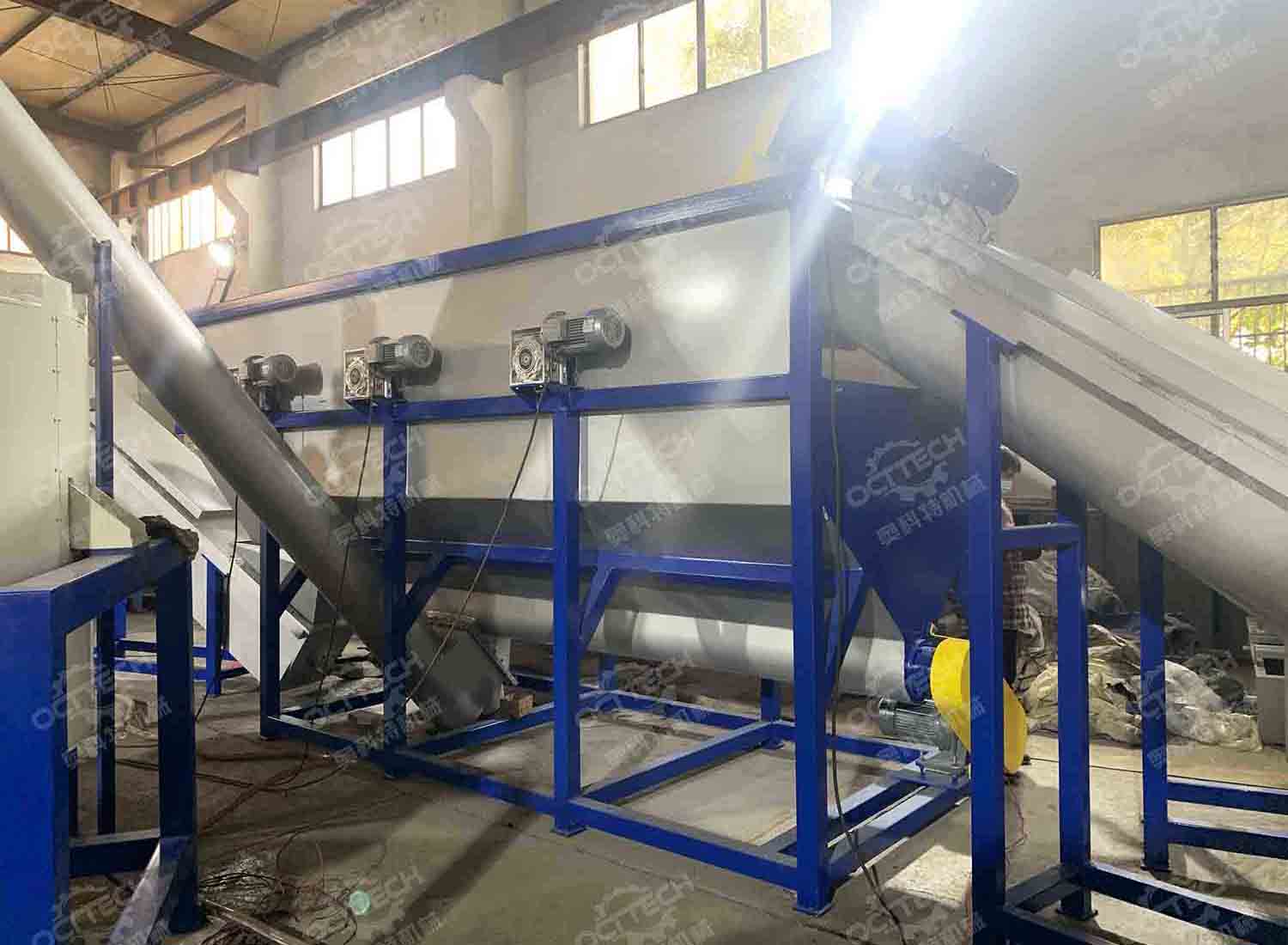

Motor power of bottom screw:3kw
Motor power of thumb wheel:2.2kw *3
Dia. of screw loader:420mm,Motor power:3kw

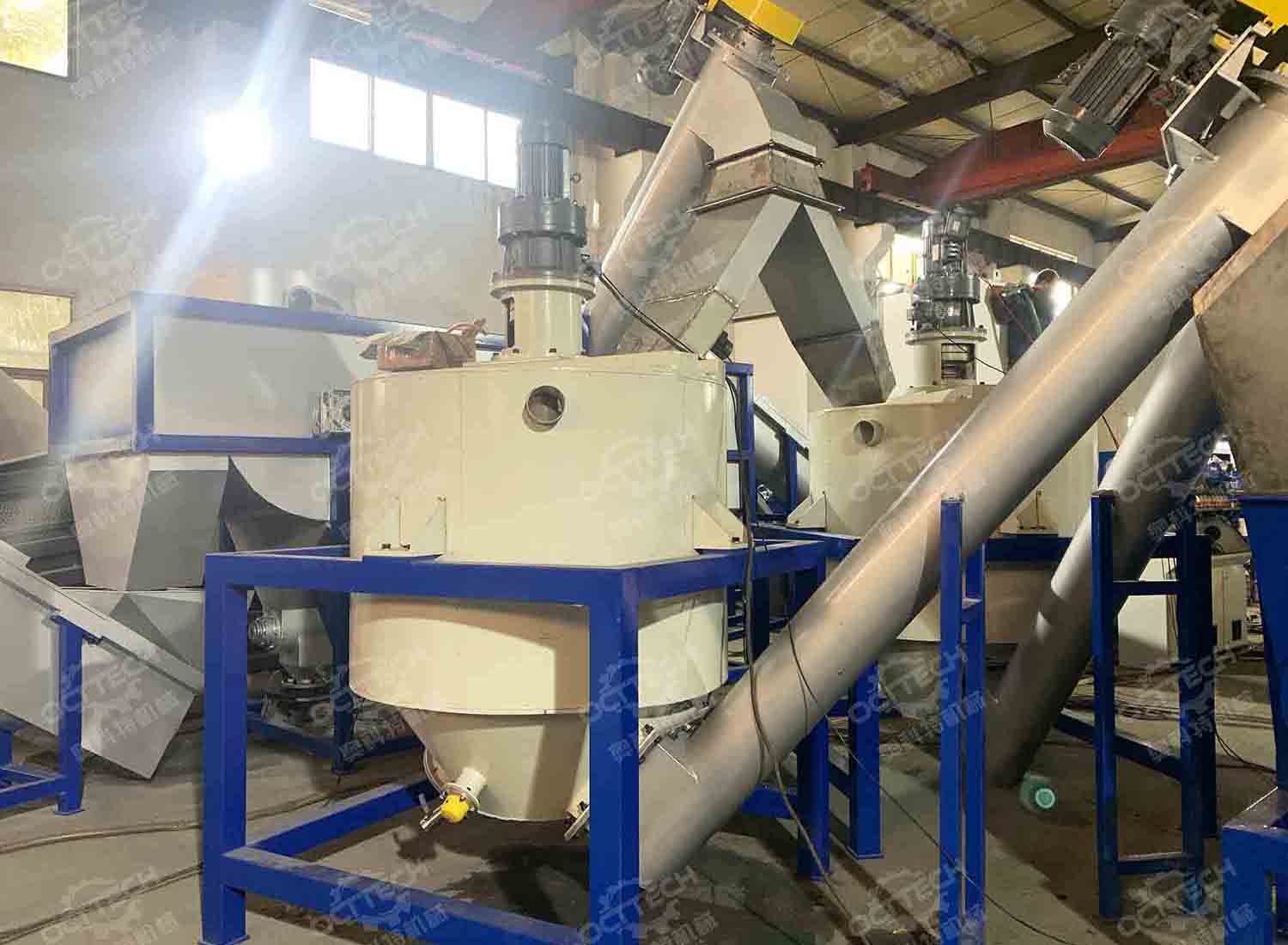

Volume of hot chamber:5m3
Middle layer:rock wool for insulation
Heating type:Gas Heating/Electricity Heating
Caustic soda percentage:1-2%

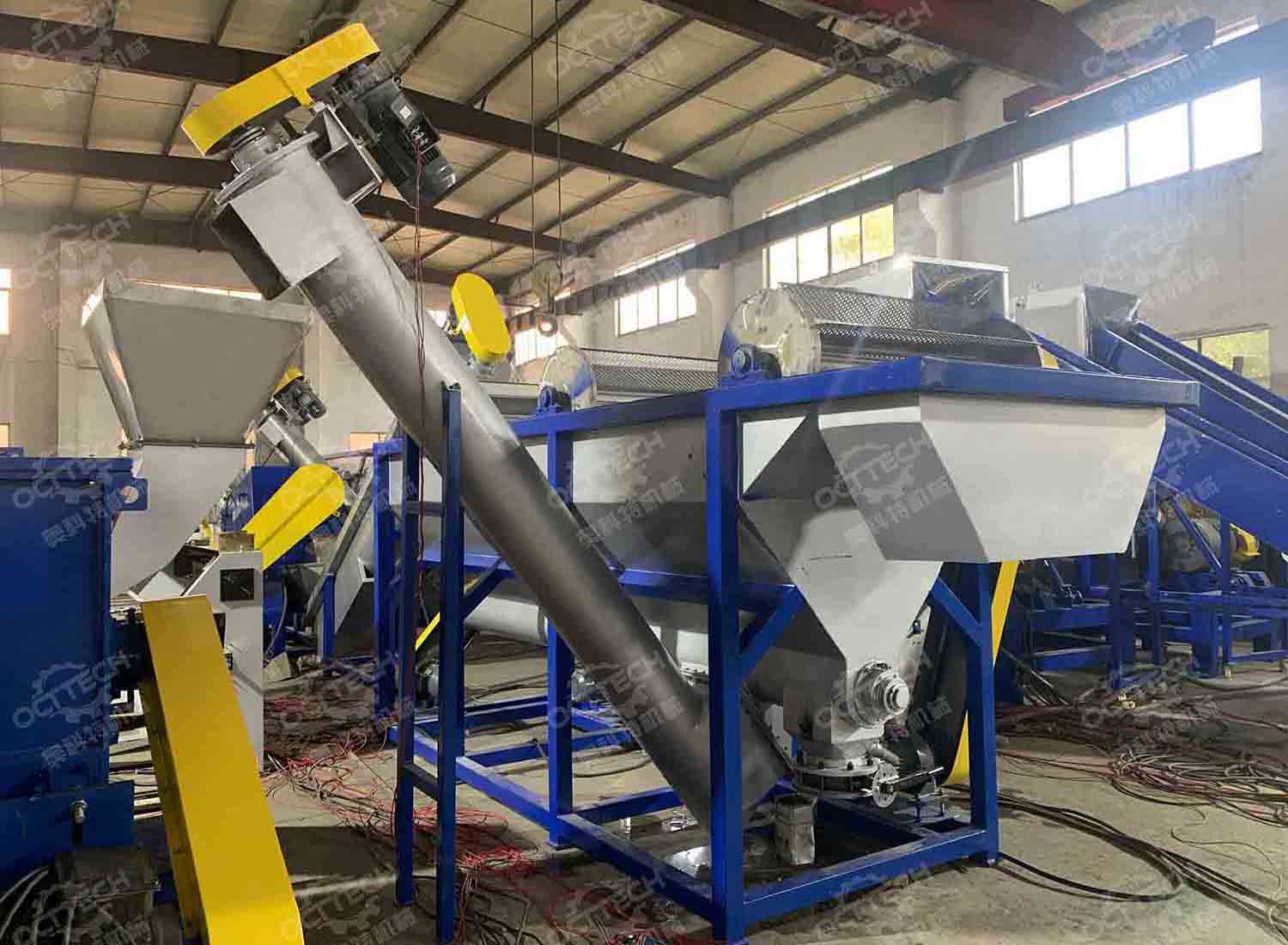

Motor power: 30KW
Rotary speed of screw: 1200rpm
Diameter of r screen hole: 3mm
Part contact with raw materials: stainless steel
Motor power of bottom screw:3kw
Motor power of thumb wheel: 2.2kw *3
Dia. of screw loader:380mm,Motor power:3kw

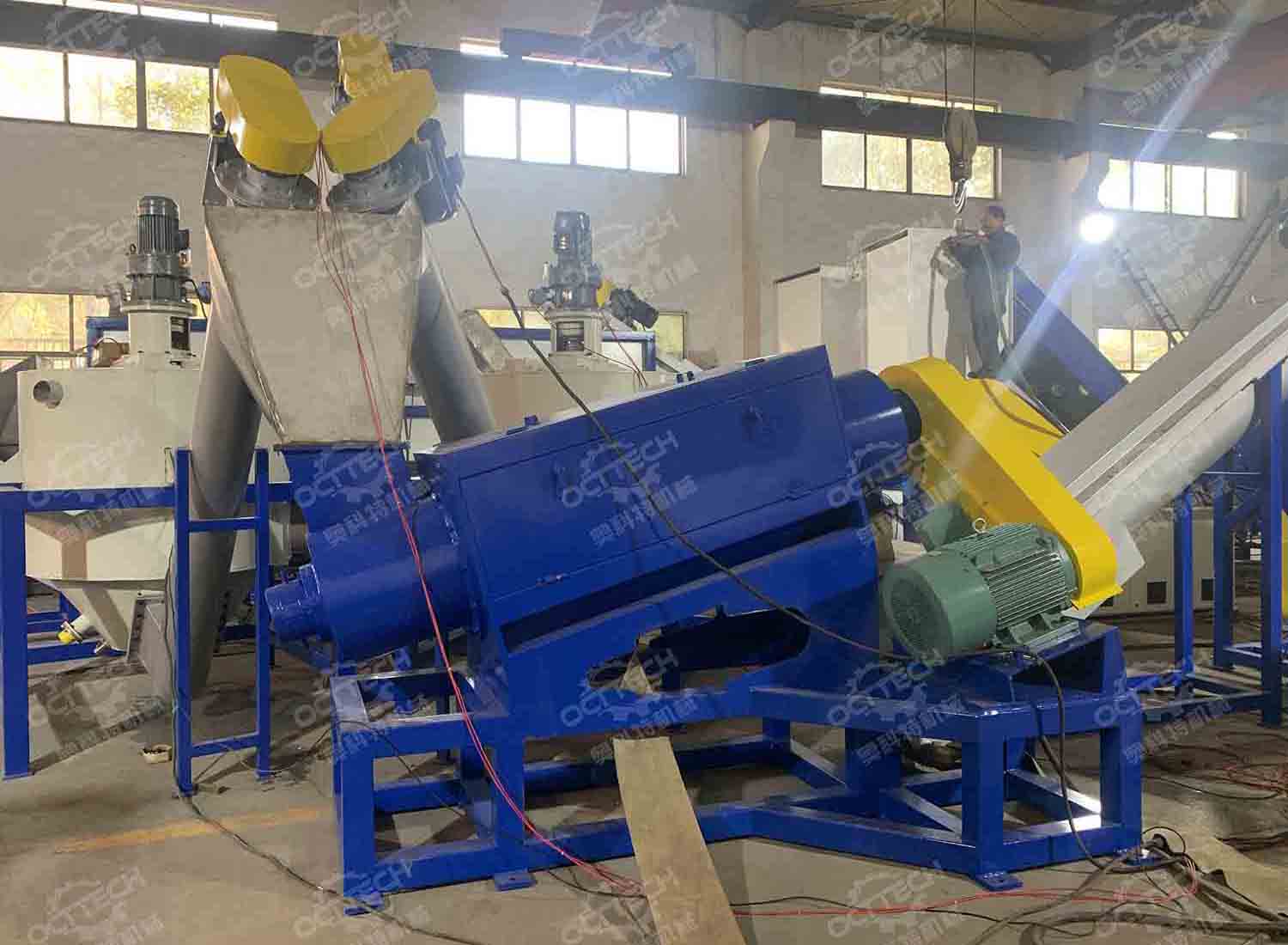

Motor power: 22KW
Motor of cover open:0.75KW
Rotary speed of screw: 2200rpm
Part contact with raw materials: stainless steel

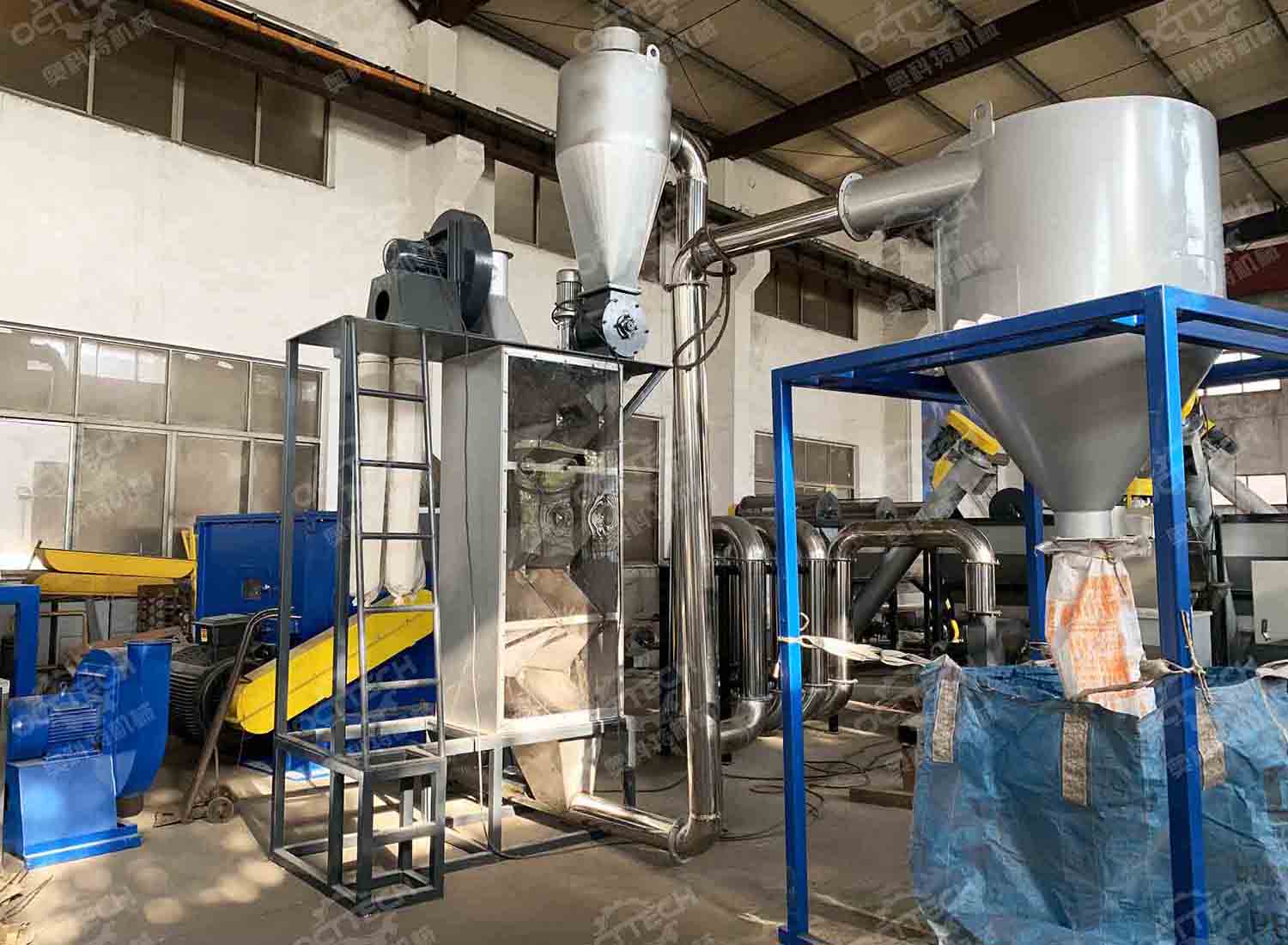

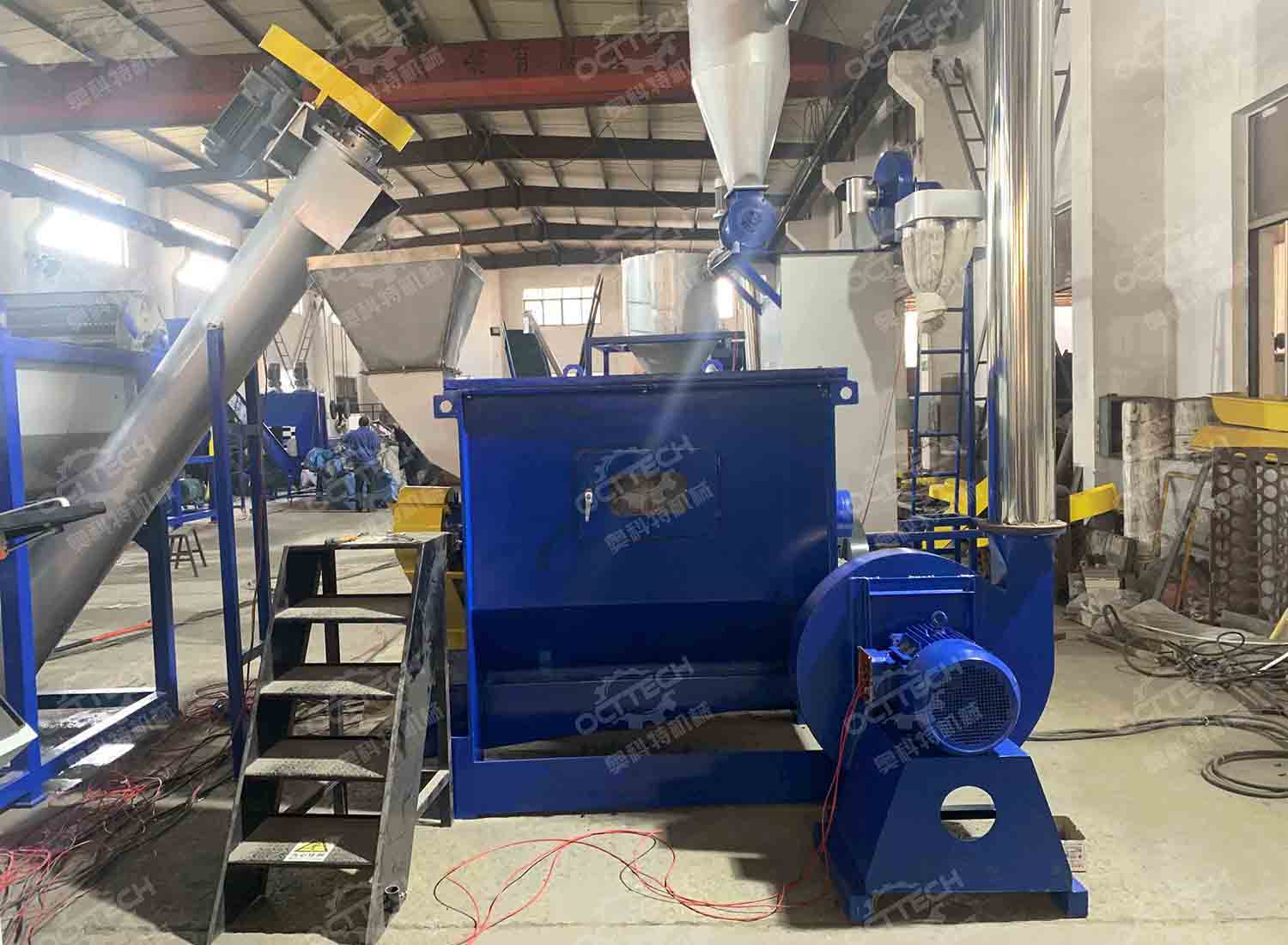

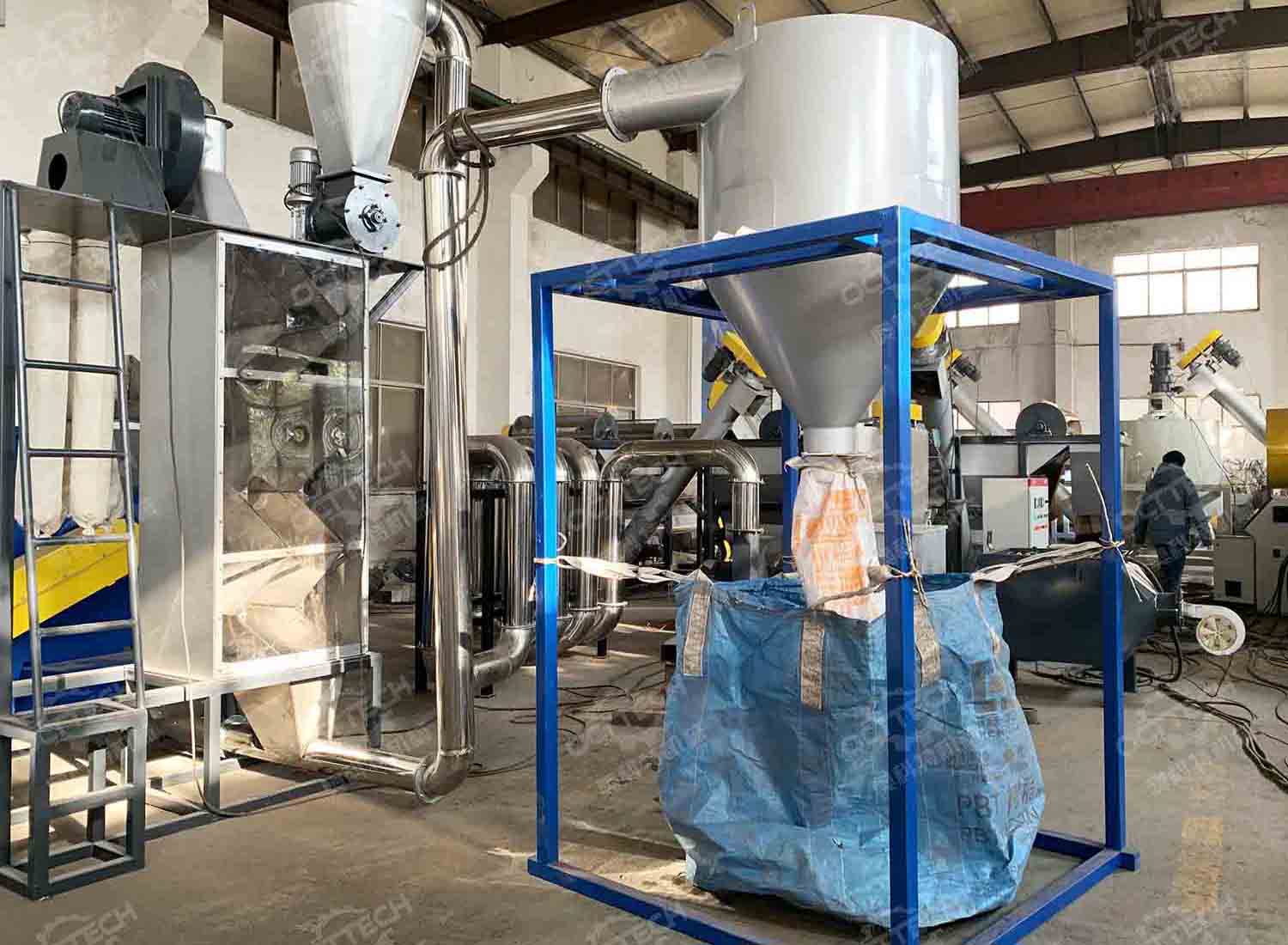

Power of blowing motor:11KW,Length:19 meters
Motor power of separating the label:4kw
Motor power of feeding:11kw
Part contact with raw materials:stainless steel

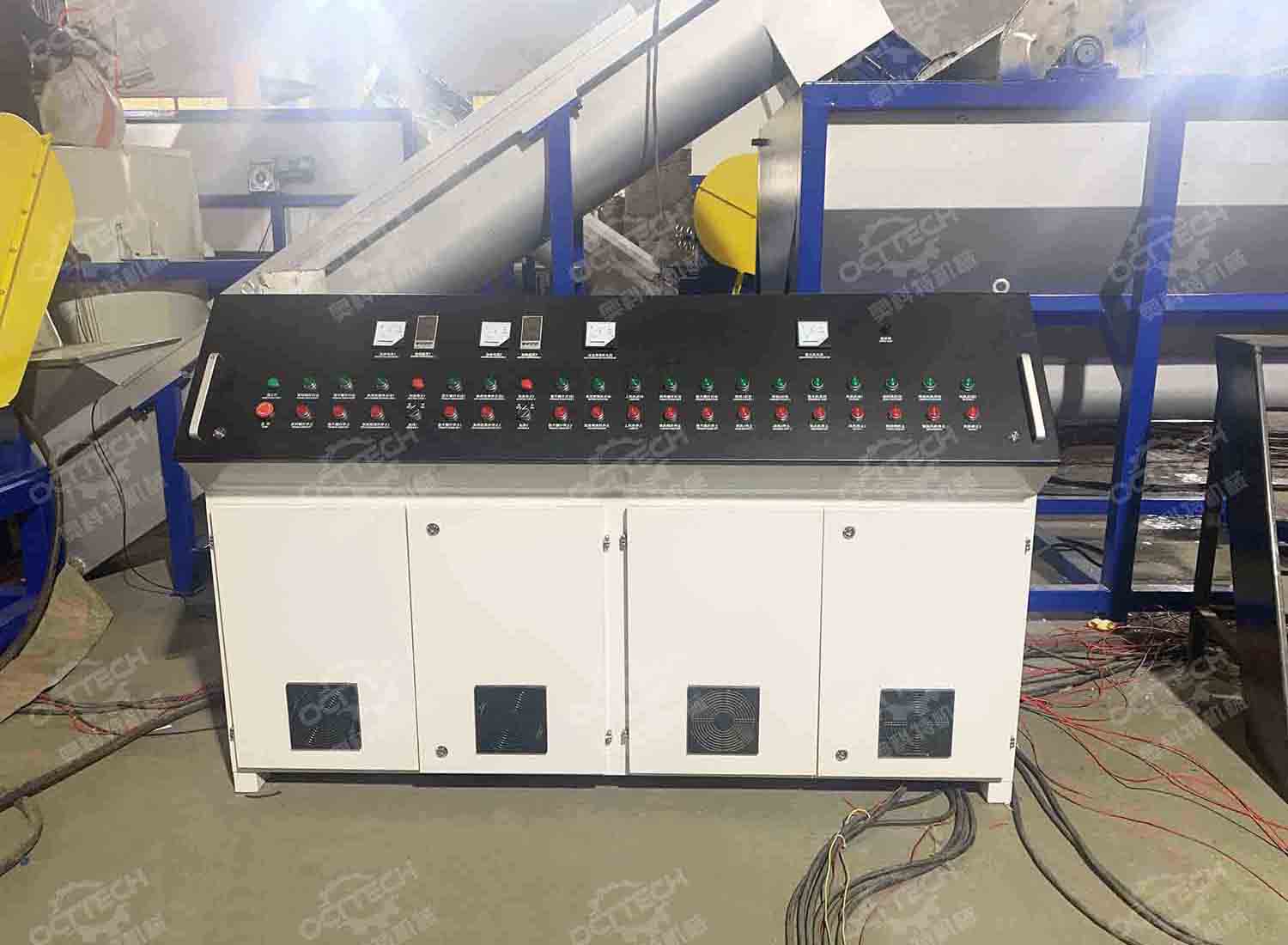

Safety interlock principle.
All electrical units:Schneider,ABB,Omron
