Washing Equipment

PE PP film bag washing recycling line

With years of technology modification and process experience precipitation,OCTTECH has a variety of different solutions for recycling PP PE scraps (LDPE/LLDPE film,PP woven bags,PP non-woven,PE bags,milk bottles,bottle/box/cup/barrel/bucket and injection waste).
OCTTECH team integrated the cleaning line technology in Europe and China and continuously optimized it.Finally,it developed a series of modular equipment that can adapt to the different characteristics materials with different capacity.It can realize a cleaning recycling line for soft plastic or hard materials.The washing recycling machine can remove ferrous and nonferrous metals,sand,oil,glue,paper and many other different contaminants efficiency from the recycling materials.

Product Video Contact Us

Technical Parameters

Capacity(kg/h) Total power(kw) Water Consumption(ton/h) Labor Required Humidity
300kg/hour 125kw 3ton/h 2-3 ≤2%
500kg/hour 260kw 4-5ton/h 3 ≤2%
1000kg/hour 350kw 6ton/h 6 ≤2%

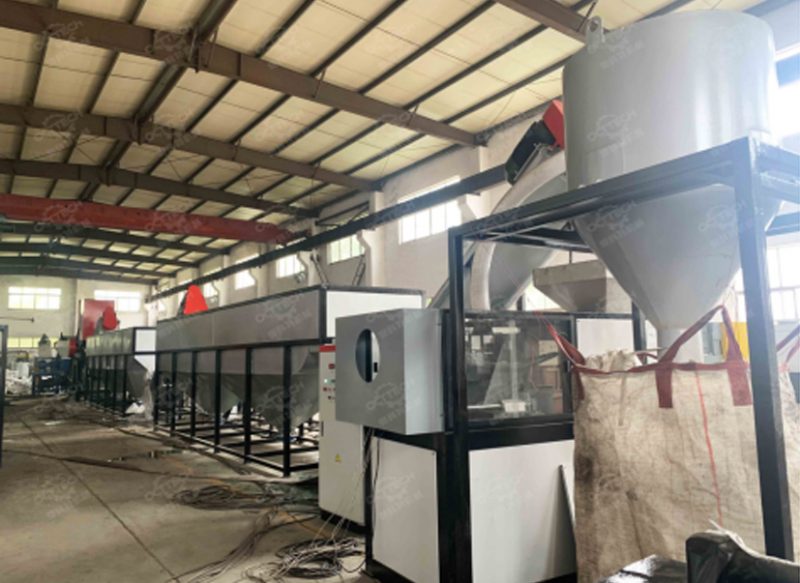

PE PP Film bags washing line Working Flow

Belt conveyor→Shredder machine→Belt conveyor →Crusher machine→Floating washer tank→Screw conveyor→High speed friction washer →Screw conveyor→Floating washer tank→Screw conveyor→Plastic squeezer machine→Storage hopper→Control cabinet

Plastic PE PP film bags Recycling Washing Machine Detail

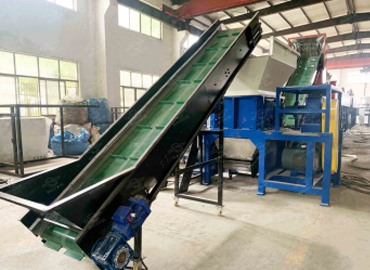

Belt Conveyor
Feeding speed is controlled by inverter according to the feeding amount.

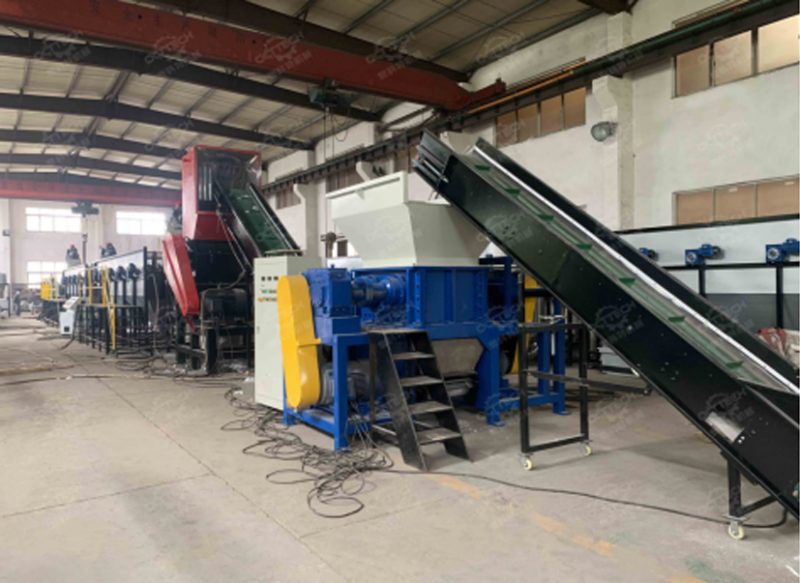

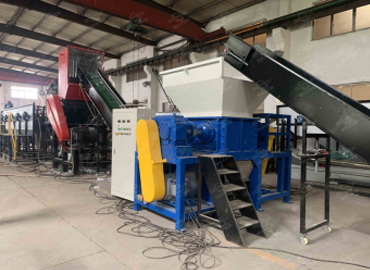

Shredder machine
Suitable for big pieces film,bags or baled bags.
Worked with the crusher,the washing line capacity will be big and can reduce the crusher blade maintenance.

Belt Conveyor
Feeding speed is controlled by inverter according to the feeding amount.
Metal detector for selection

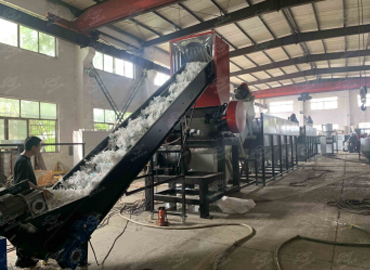

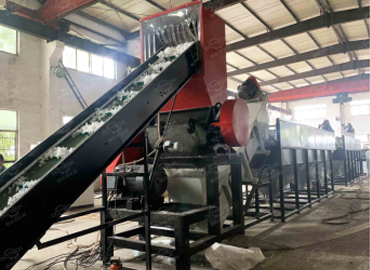

Crusher
To crush material into small sizes.
With water to clean material and cool blades during crushing.
Large materials are processed into small pieces in this module, which improves the washing result and makes the final product easy to packing.

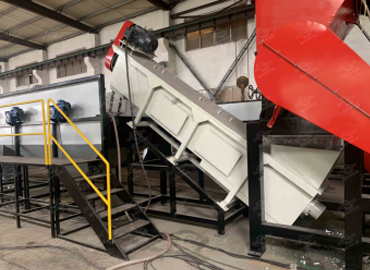

Friction washer
Reinforced, mild steel and higher speed rotor;
Oversized, outside mounted bearings;
Stainless steel screen, hole size 3 mm;
Stainless steel feed and discharge hoppers for the plastic flakes;
Water discharge at the bottom.

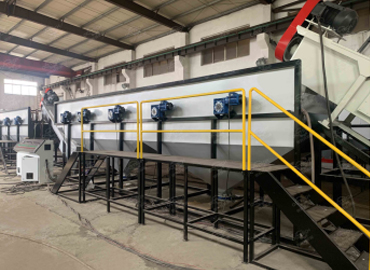

Floating Washer
The sediment and metal in the material can be effectively separated through this module so as to protect environment from polluting.
Material: stainless steel

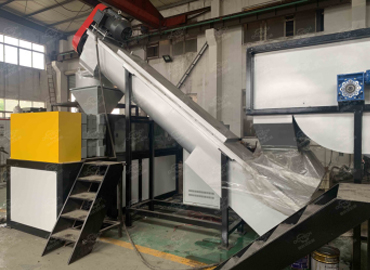

Dewatering Machine
Function: Drying and flakes moisture reach 5% by centrifugal dryer High effective drying and cleaning;
Stainless steel screen hole size 2-3mm in polygon version for higher washing /drying effect;
Easy replacement of screens (segmental design);
Oversized, outside mounted bearings;
Part contact with raw materials: stainless steel

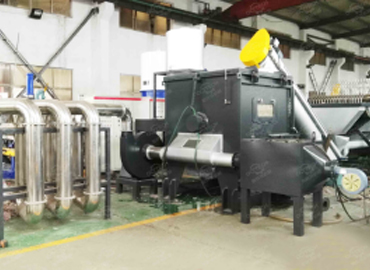

Plastic Squeeze Dryer
Through plastic squeeze dryer, water and volume of the materials can be squeezed to increase the quality of the pellets and the efficiency of the extruders.Combine crushing, compacting and plletizing steps in one system, less-labor cost.Higher efficiency feeding,suitable to film,filament,raffia,foaming materials;Higher output and lower energy consumption
The moisture after squeeze dryer will be lowered down to 2%

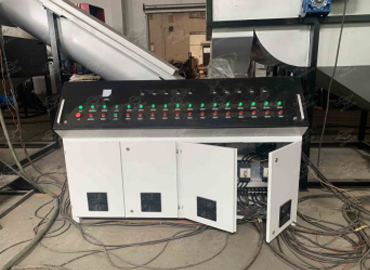

Control cabinet
France Schneider contactor
Japan Omron temperature controller
ABB invertor
