PE PP bottle plastic washing recycling line
With years of technology modification and process experience precipitation,OCTTECH has a variety of different solutions for recycling PP PE scraps (LDPE/LLDPE film,PP woven bags,PP non-woven,PE bags,milk bottles,bottle/box/cup/barrel/bucket and injection waste).
OCTTECH team integrated the cleaning line technology in Europe and China and continuously optimized it.Finally,it developed a series of modular equipment that can adapt to the different characteristics materials with different capacity.It can realize a cleaning recycling line for soft plastic or hard materials.
The washing recycling machine including sorting,metal removing,crushing,hot and cold washing,high efficiency friction washing and drying modular.Which can remove ferrous and nonferrous metals,sand,oil,glue,paper and many other different contaminants efficiency from the recycling materials.
Technical Parameters
| Capacity(kg/h) | Total power(kw) | Water Consumption(ton/h) | Labor Required | Humidity |
|---|---|---|---|---|
| 300kg/hour | 178kw | 3ton/h | 3 | ≤1% |
| 500kg/hour | 200kw | 4-5ton/h | 3 | ≤1% |
| 1000kg/hour | 295kw | 6ton/h | 4 | ≤1% |

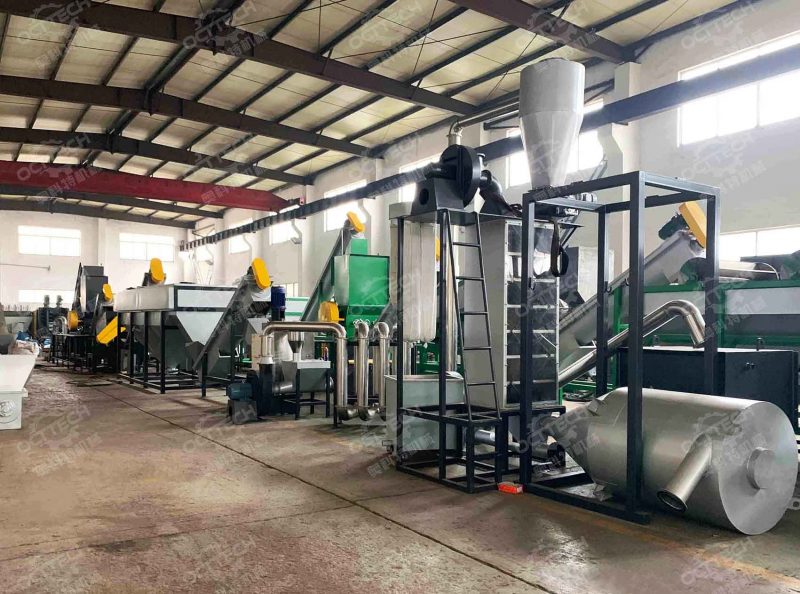

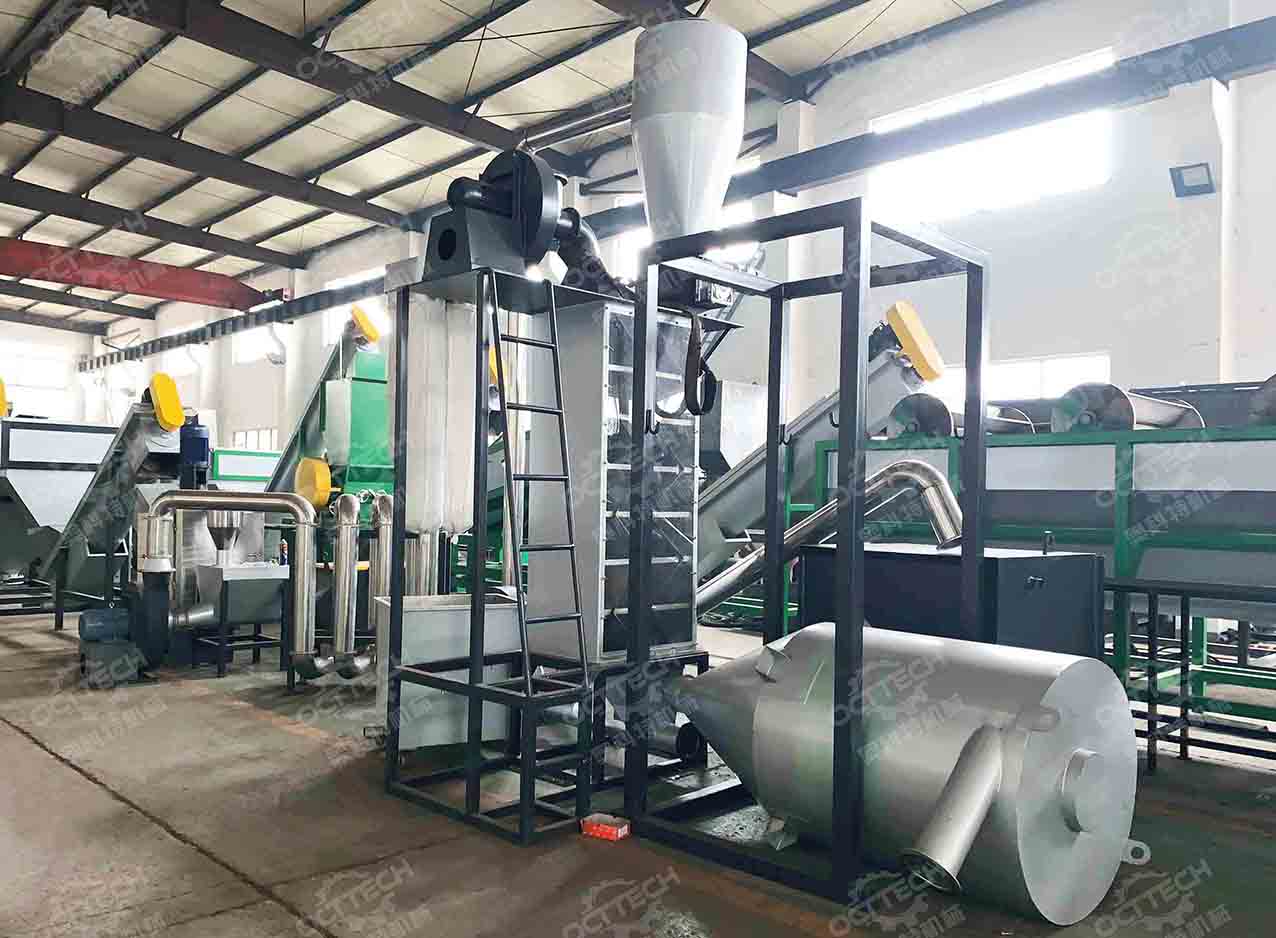

PE PP bottle plastic washing recycling line Working Flow
Belt conveyor→Shredder machine→Belt conveyor →Hot washer tank→Screw conveyor→Crusher machine→Screw conveyor→High speed friction washer →Screw conveyor→Floating washer tank→Screw conveyor→Dewatering machine→Drying pipe system→Zig Zag air classification system(For choice)→Storage hopper→Control cabinet
PE PP bottle plastic washing recycling line Detail

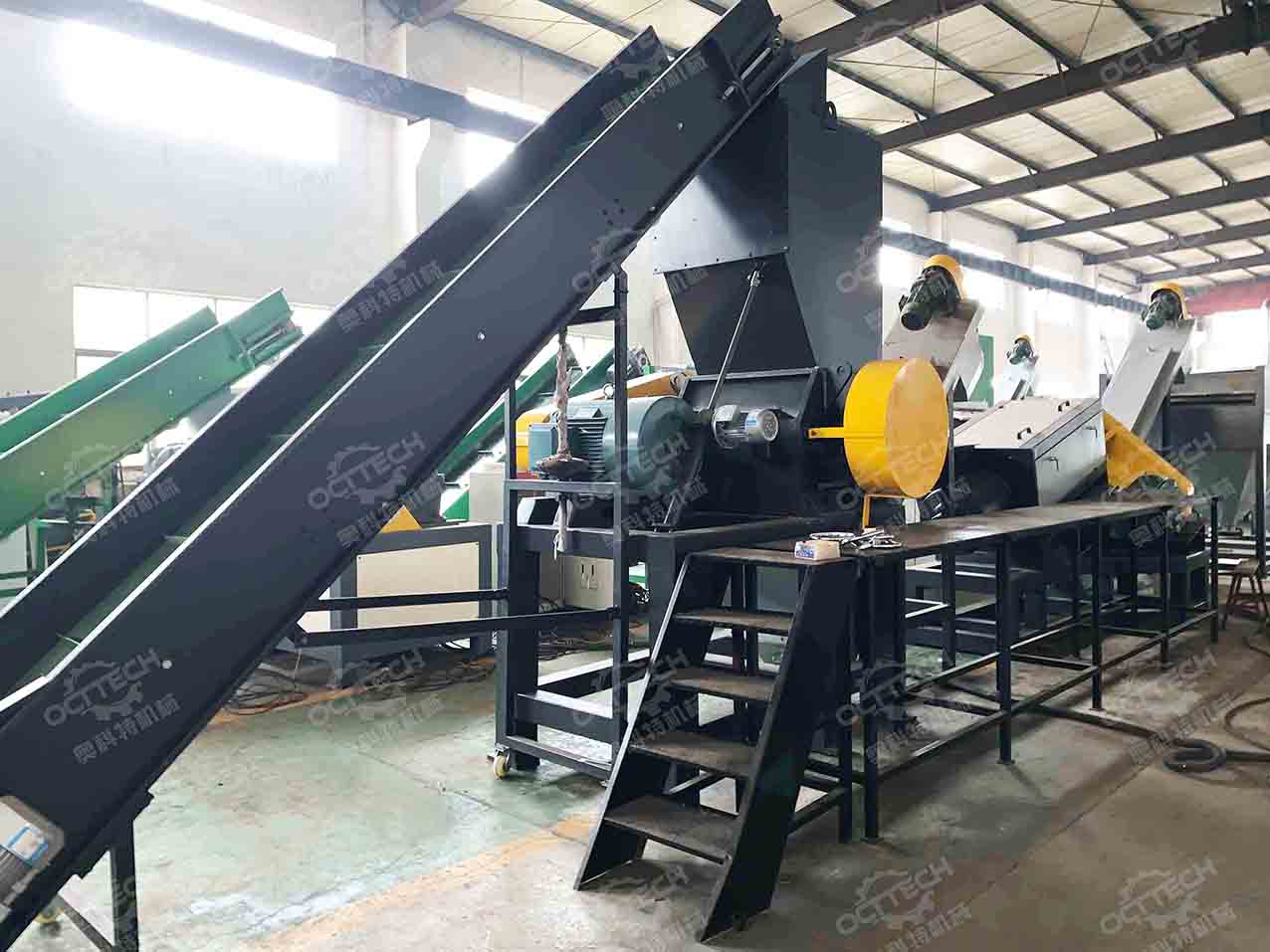

With water to clean material and cool blades during crushing.
Material of blade: SKD-II
Part contact with raw materials: stainless steel
Motor power: 30KW
Rotary speed of screw: 1200rpm
Part contact with raw materials: stainless steel
Diameter of r screen hole: 3mm
Qty. of thumb wheel: 4 pcs
Motor power of thumb wheel: 2.2kw *4

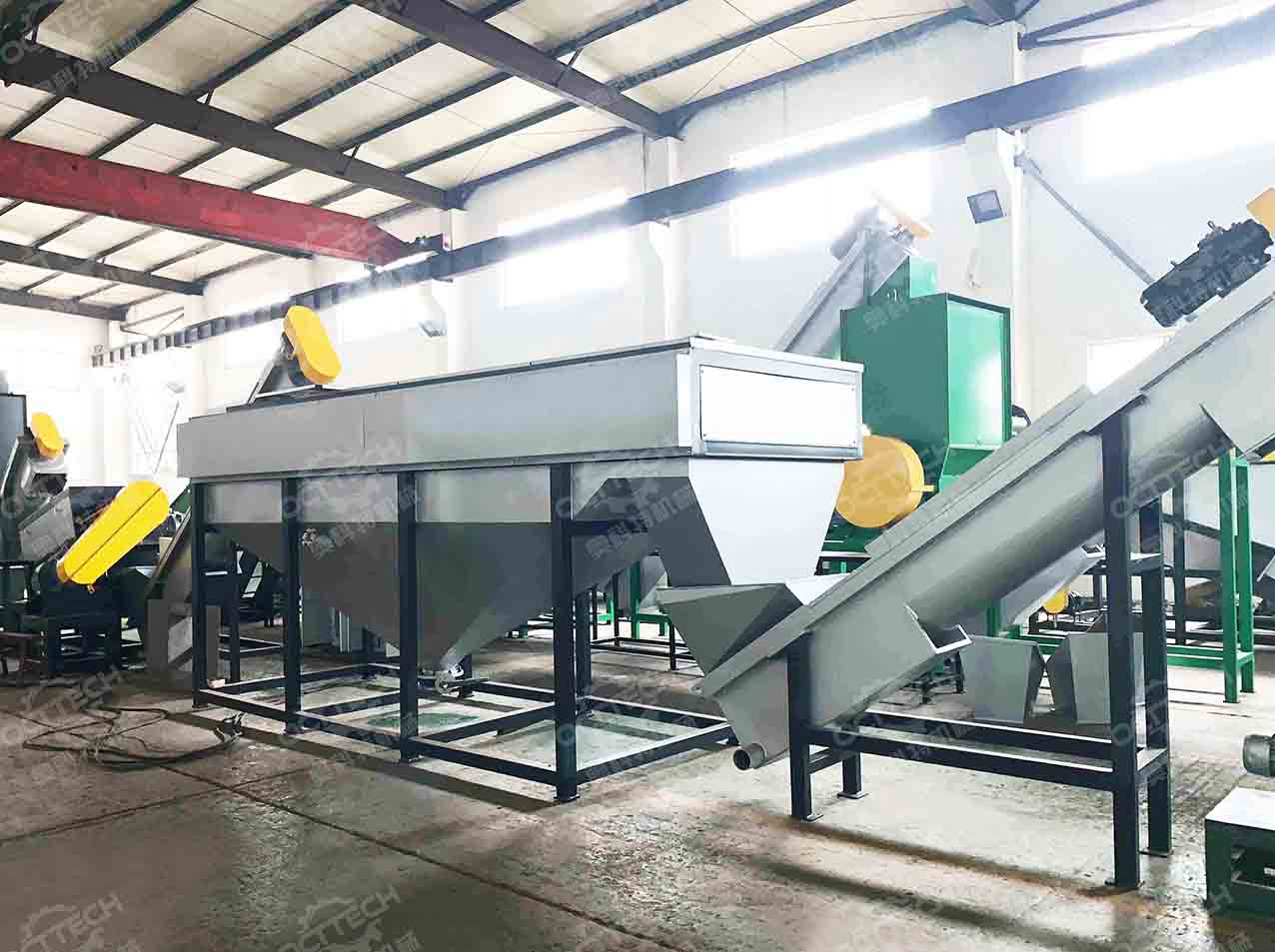

Heating method: electric heating/steam heating(for option)
Motor power: 7.5kw
Rotation speed: 1200rpm
Feeding motor power: 1.5kw
Water outlet is on bottom
Heating power: 36KW

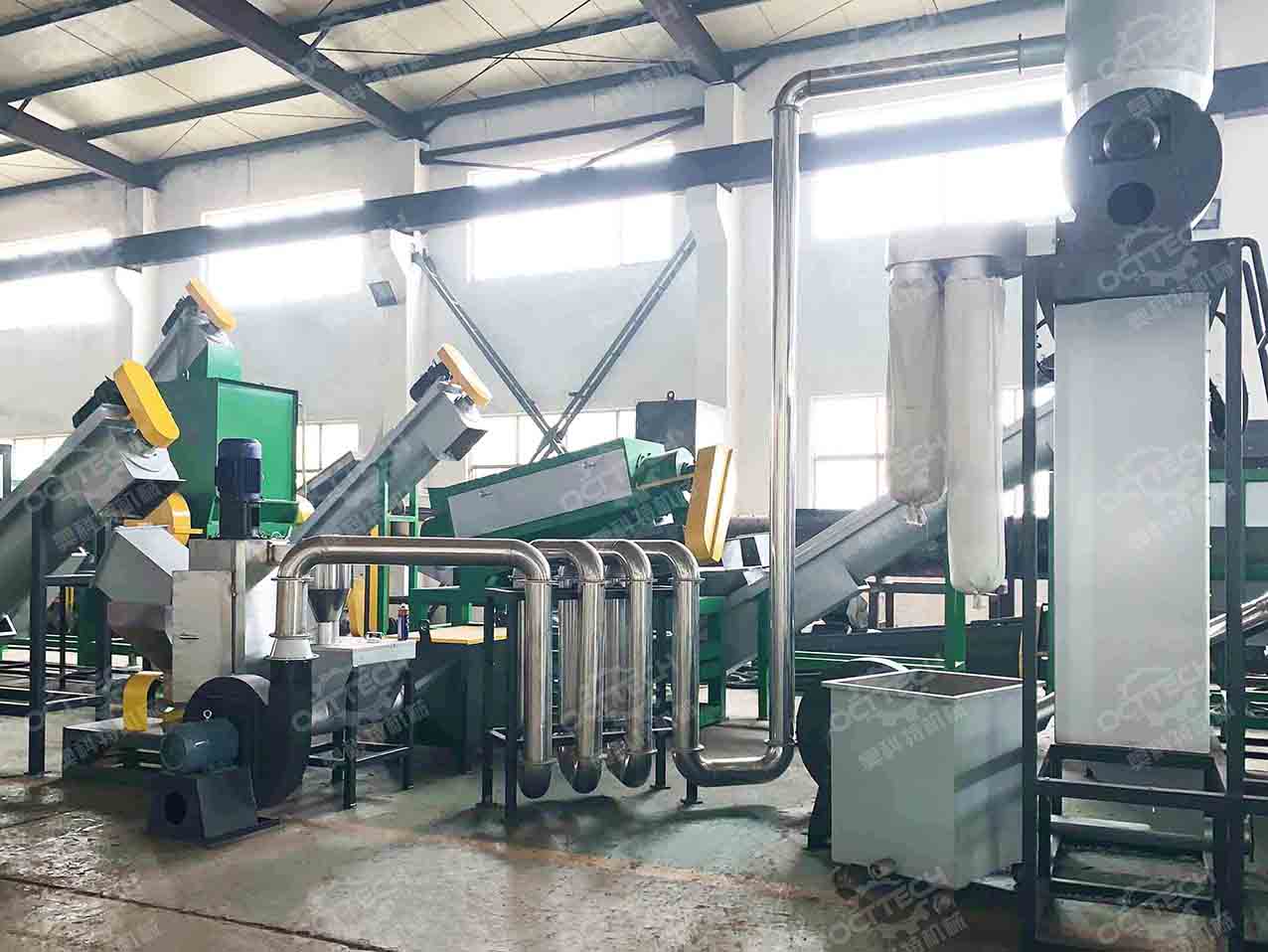

Power of blowing motor:7.5kw
Length: 20 meters
Part contact with raw materials: stainless steel

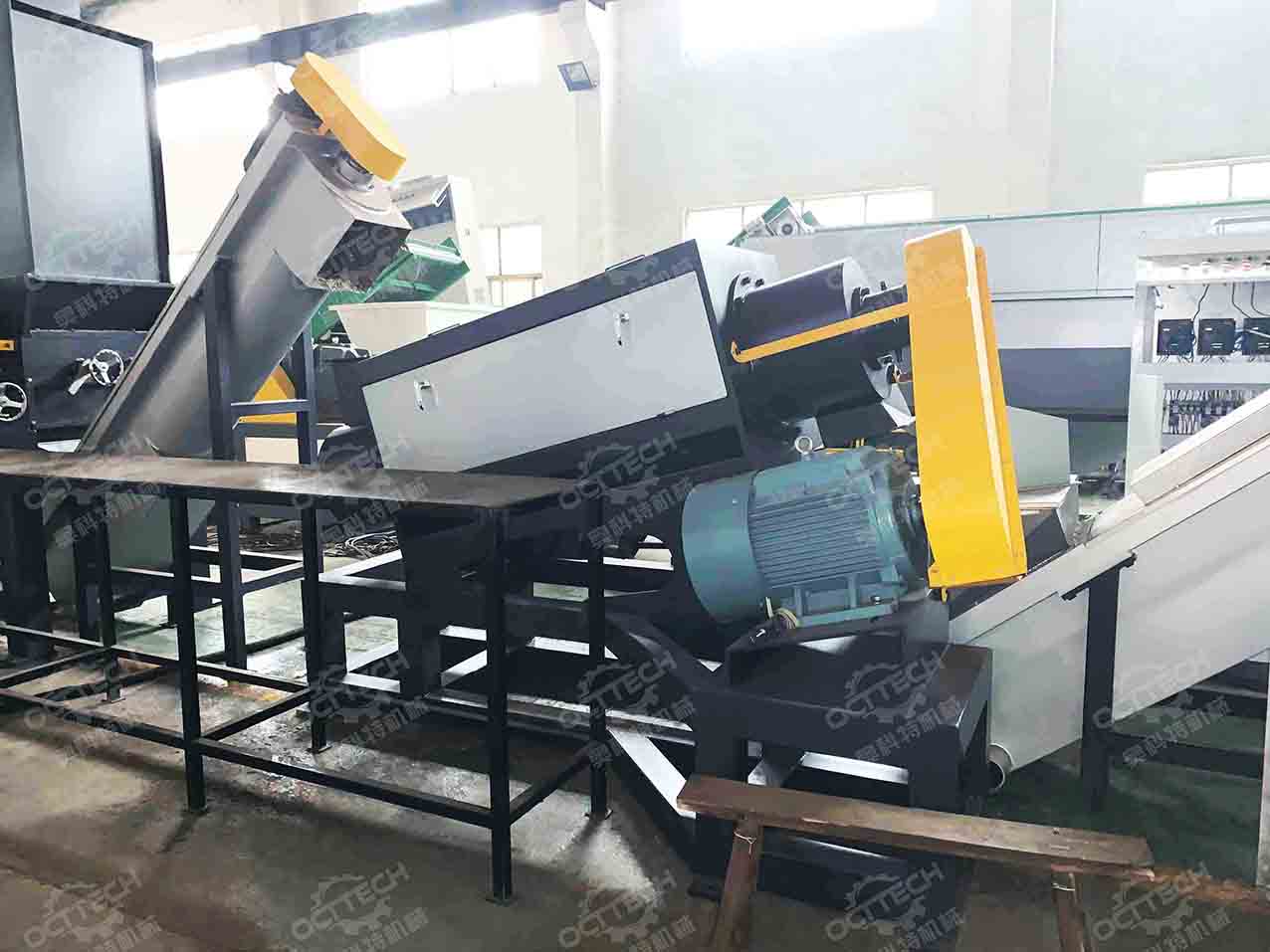

Motor power of separating the label:4kw
Motor power of feeding:7.5kw
Storage silo Volume: 2m3

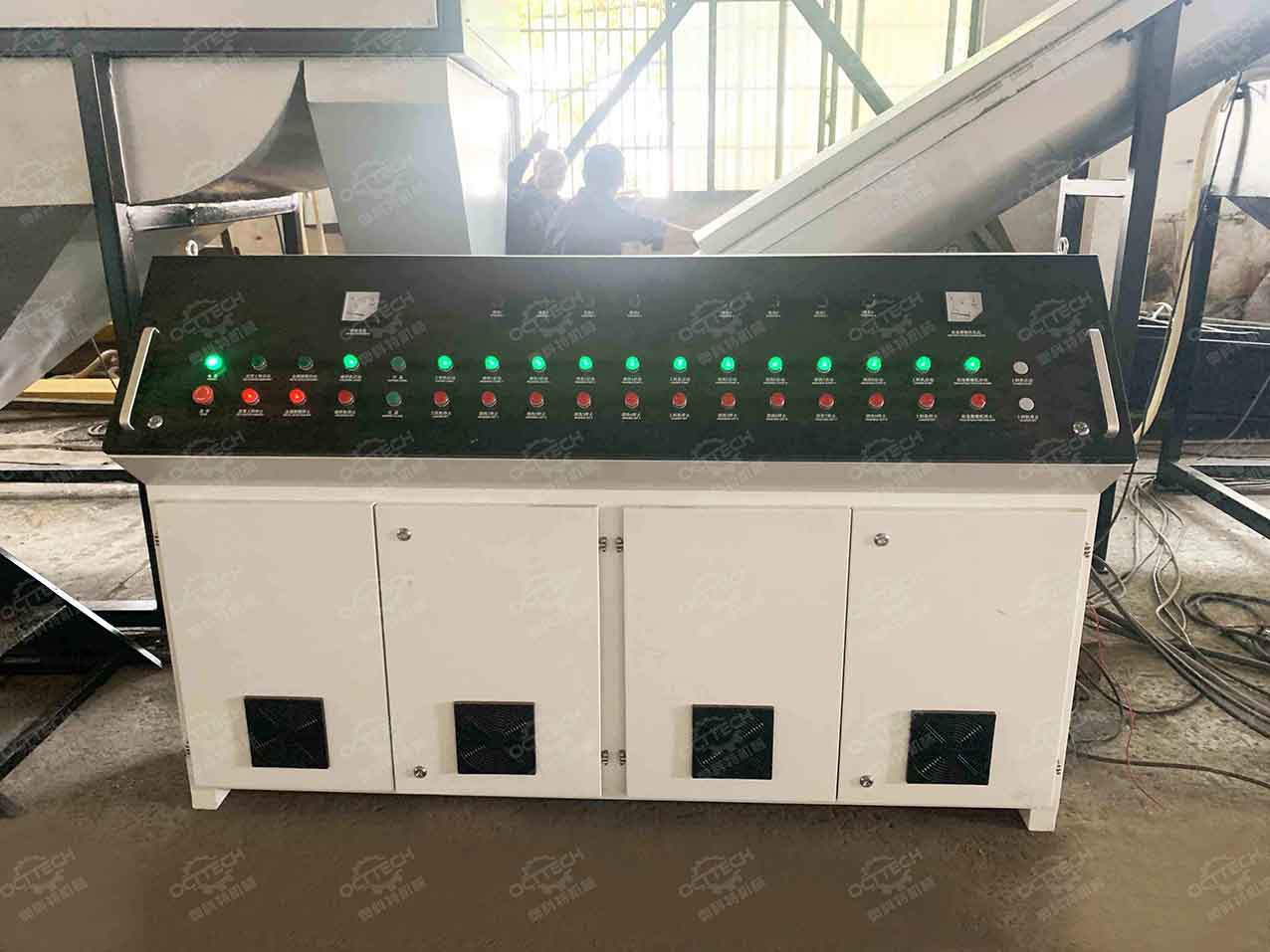

Safety interlock principle.
All electrical units: Schneider,ABB,Omron
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
excellent product
