ML double stage PE PP film bag compactor pelletizer machine

The plastic pelletizing line is used to process LDPE/LLDPE/HDPE/BOPP/PP film bags,PP woven bag/jumbo bag/raffia bag,PP non-woven,EPS/PS foam/ABS flakes etc.

Product Video Contact Us

Technical Parameters

Model ML85/100 ML100/120 ML130/130 ML160/160 ML180/200
Screw Diameter(mm) 85 100 130 160 180
L/D 25-40 25-40 25-33 25-33 25-33
Capacity(kg/h) 150-200 250-300 400-500 600-700 800-1000
Cutting Method Water ring cutting or Strand Cutting
Note The capacity is based on the raw material.The output for rigid flake and film flake are different.

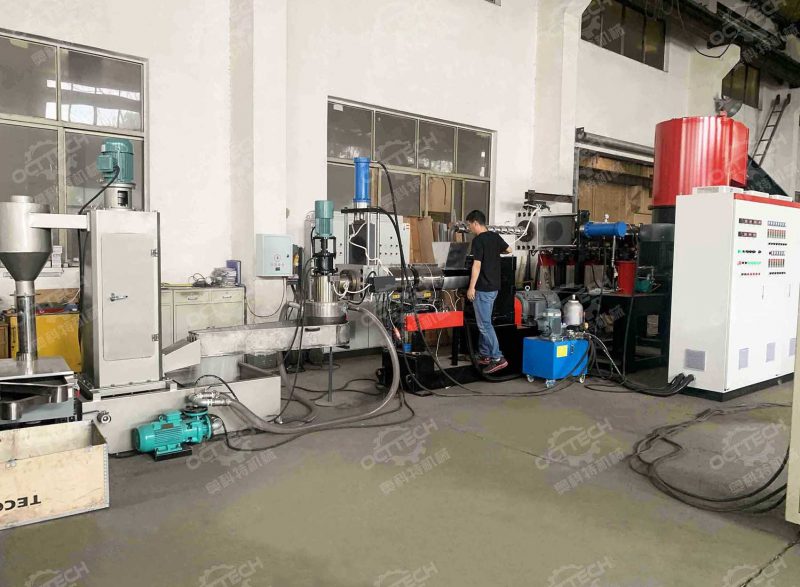

PE PP film bag ML single stage compactor pelletizer machine Working Flow

Belt conveyor→Compactor→Single screw extruder with vacuum degassing system→Hydraulic filter→Water-ring pelletzing system/ noddle cutting pelletizing system→ Dryer→Storage silo→Electric cabinet control system

PE PP film bag ML single stage compactor pelletizer machine Detail

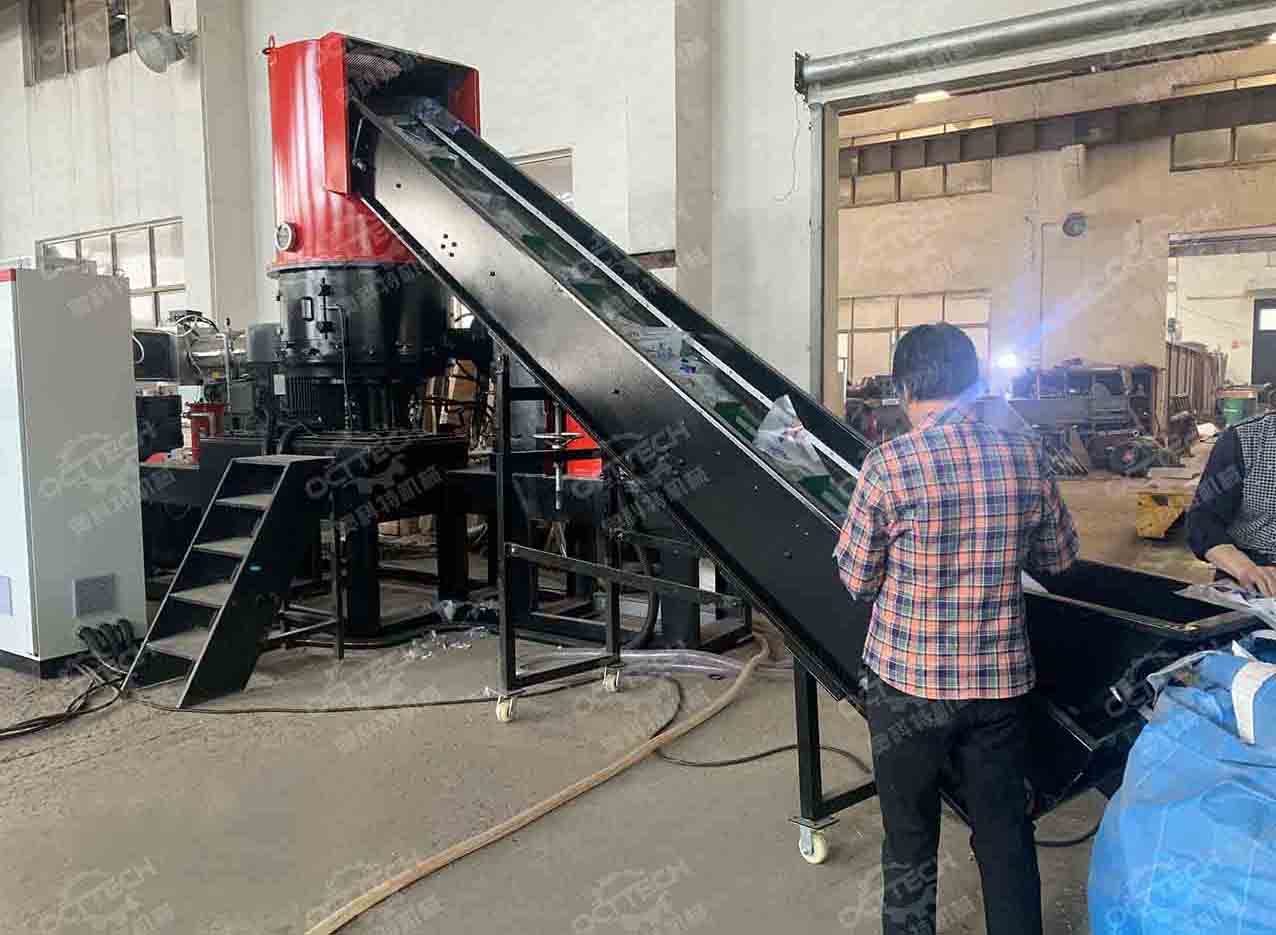

Belt Conveyor
Feeding speed is controlled by inverter according to the feeding amount.
Metal detector for selection

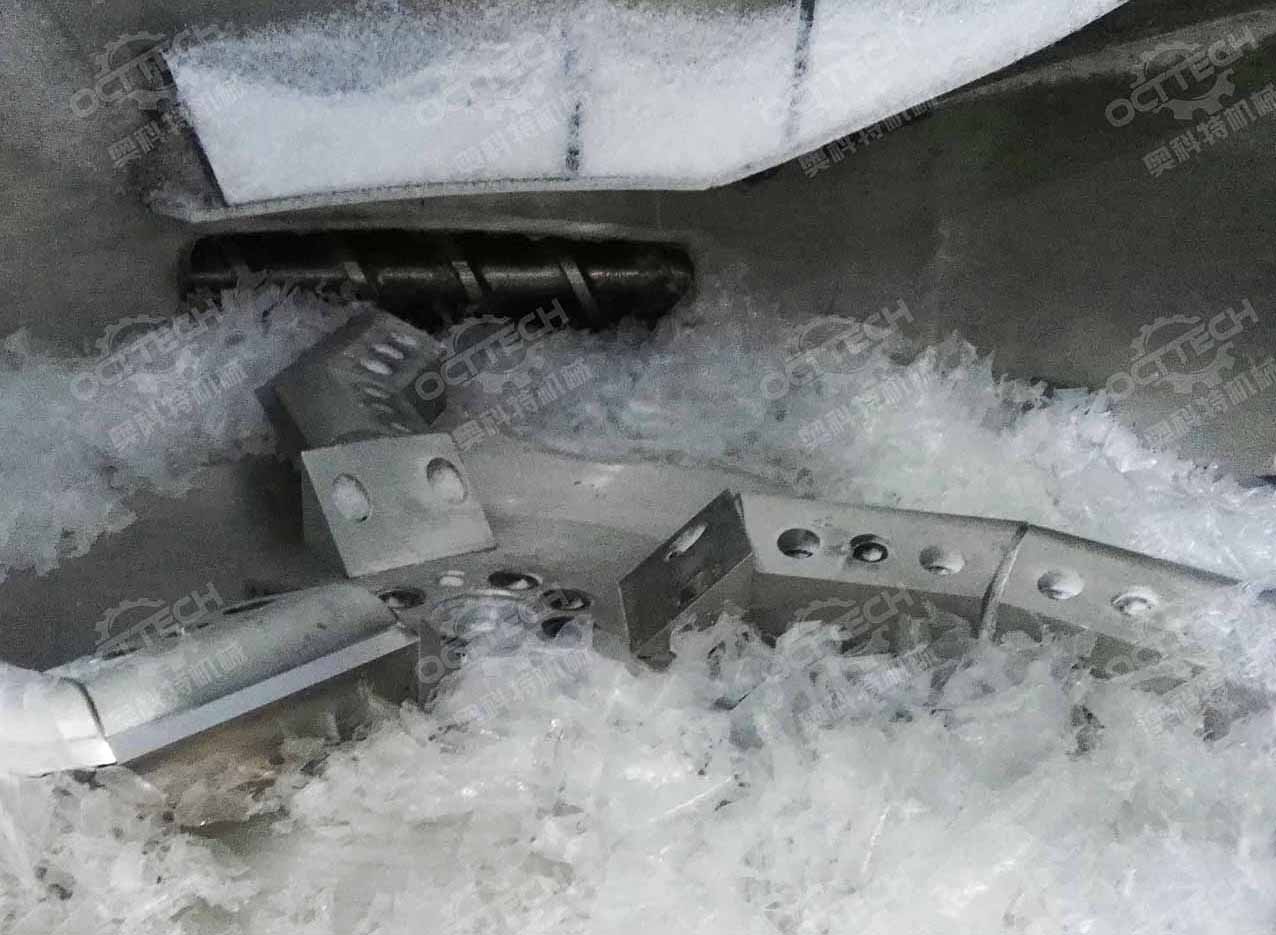

COMPACTOR
The plastic material will cut by the rotatory blades of compactor;and will dry and compacted by the friction heating;then Feed directly into the extruder.

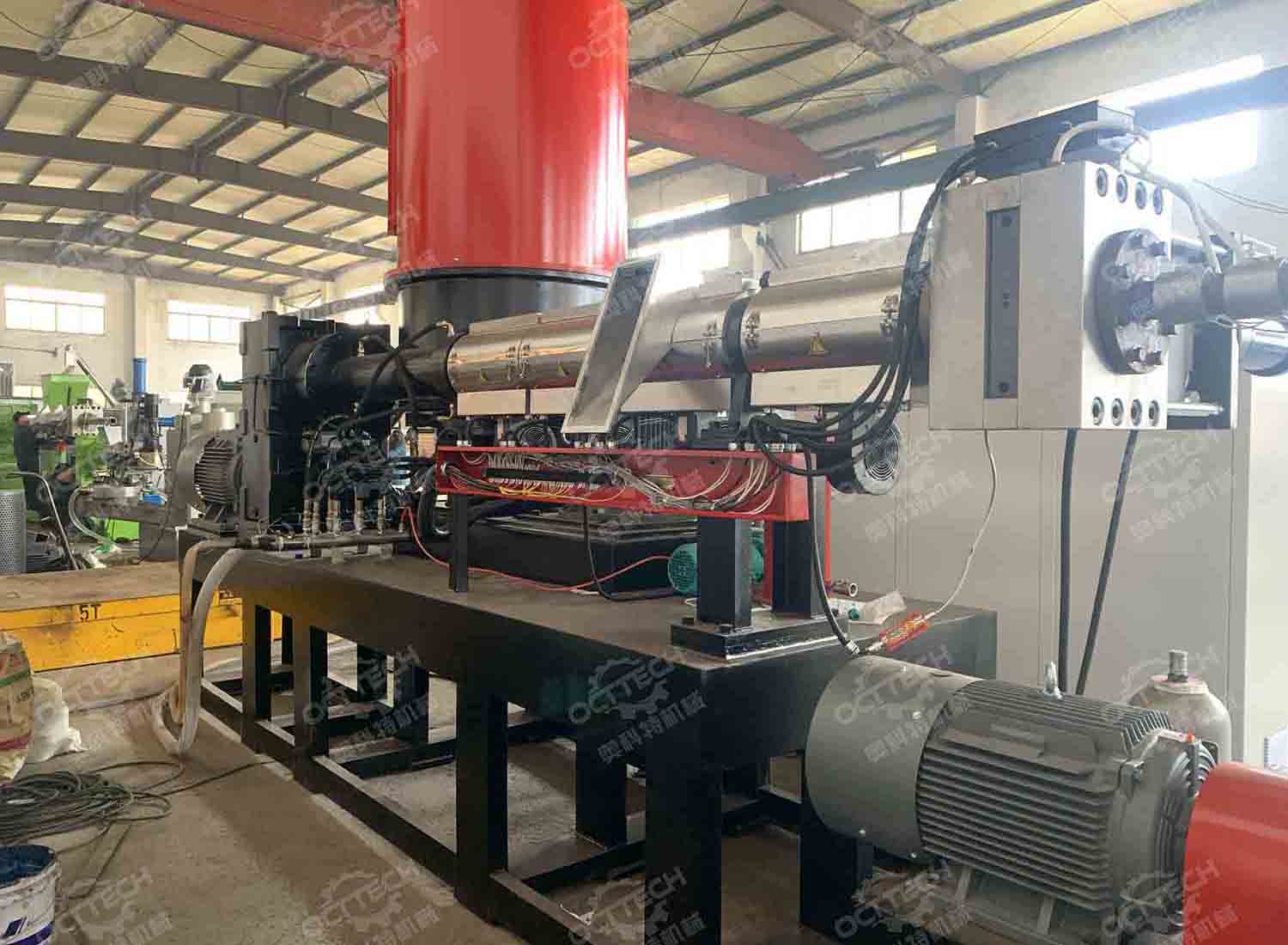

SINGLE SCREW EXTRUDER
Screw/barrel material: 38CrMoAl, Nitrify processing.
Vacuum degassing system to get rid of the low molecular,moisture and printing ink effectively.

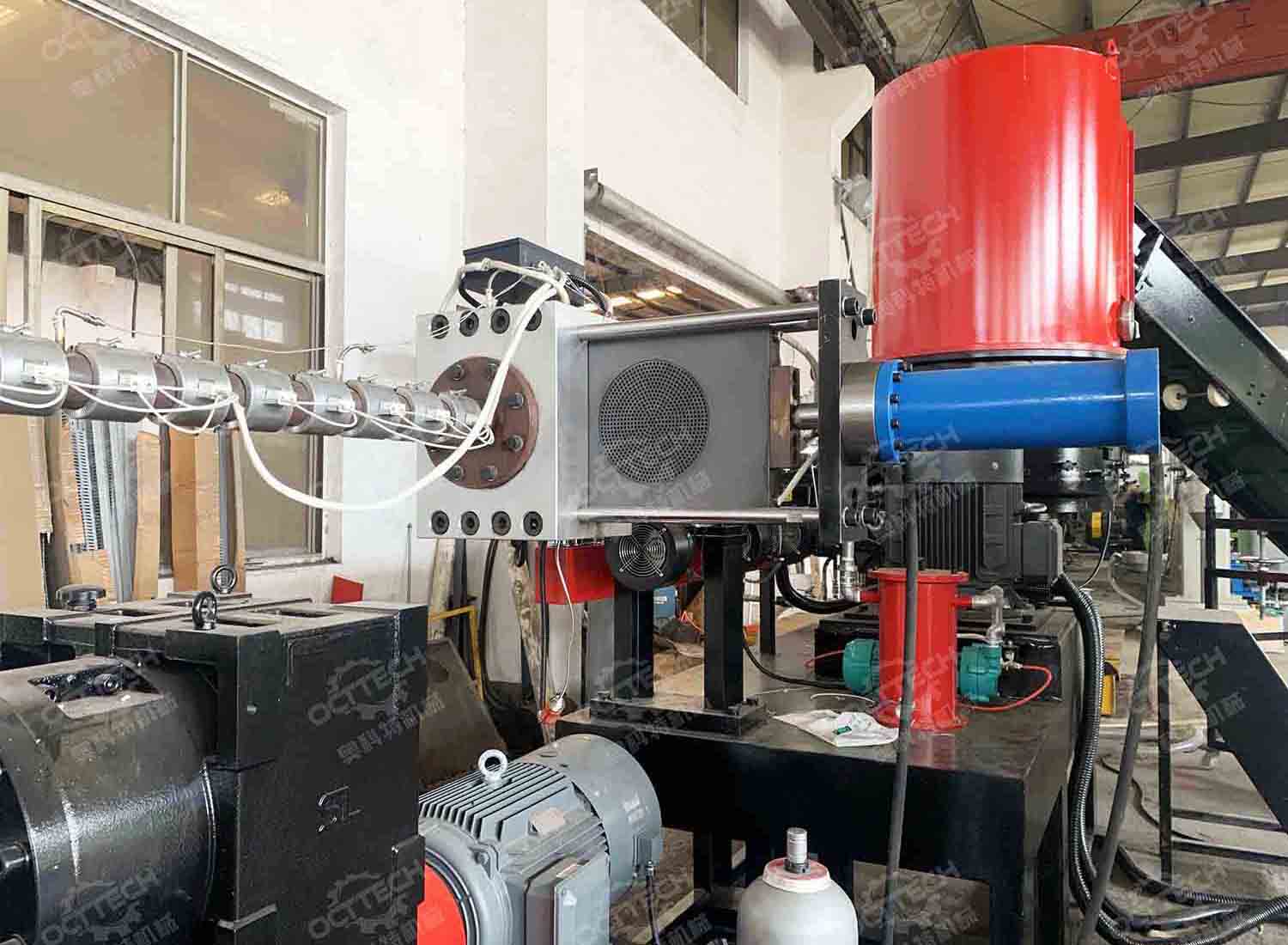

HYDRAULIC FILTER
Plate type double station filter:
Special design (no-stopping screen change, no leak)

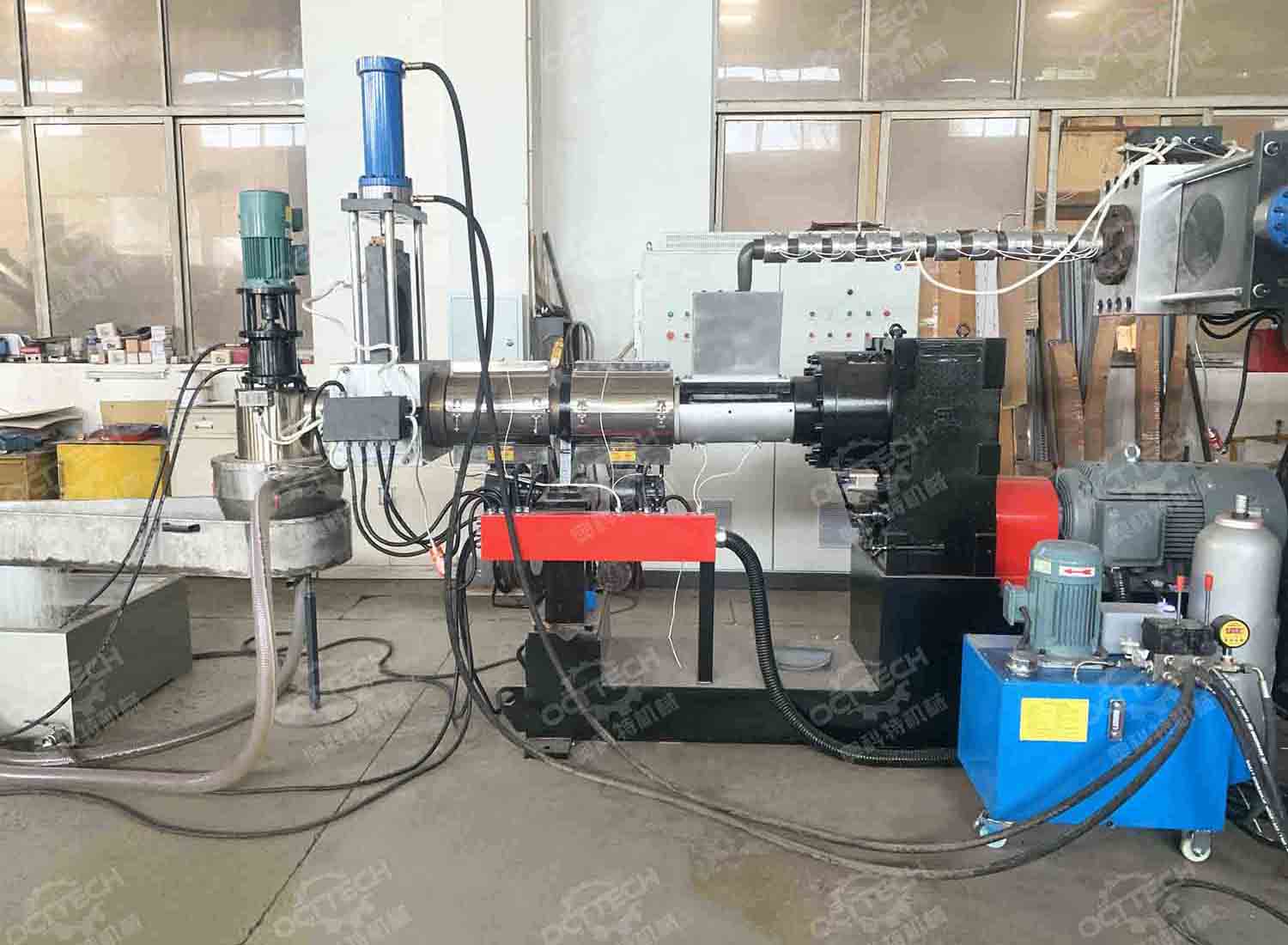

THE SECOND EXTRUDER
Screw/barrel material: 38CrMoAl, Nitrify processing.

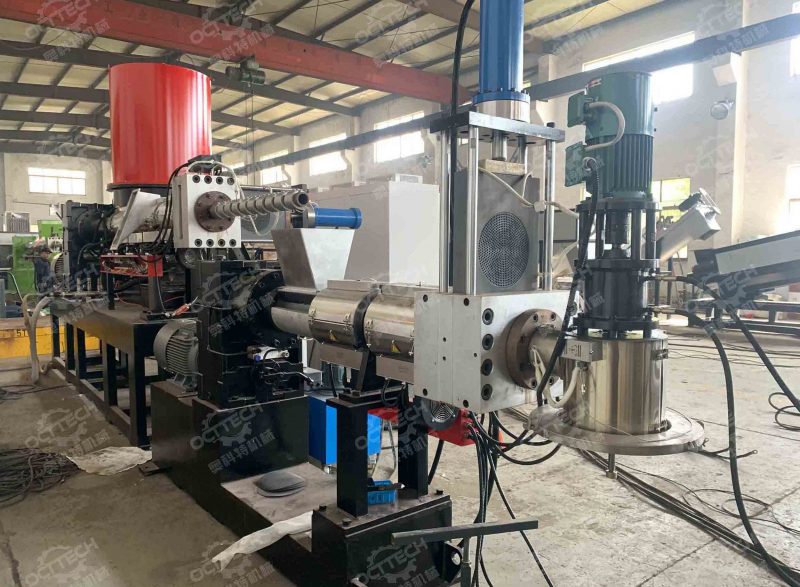

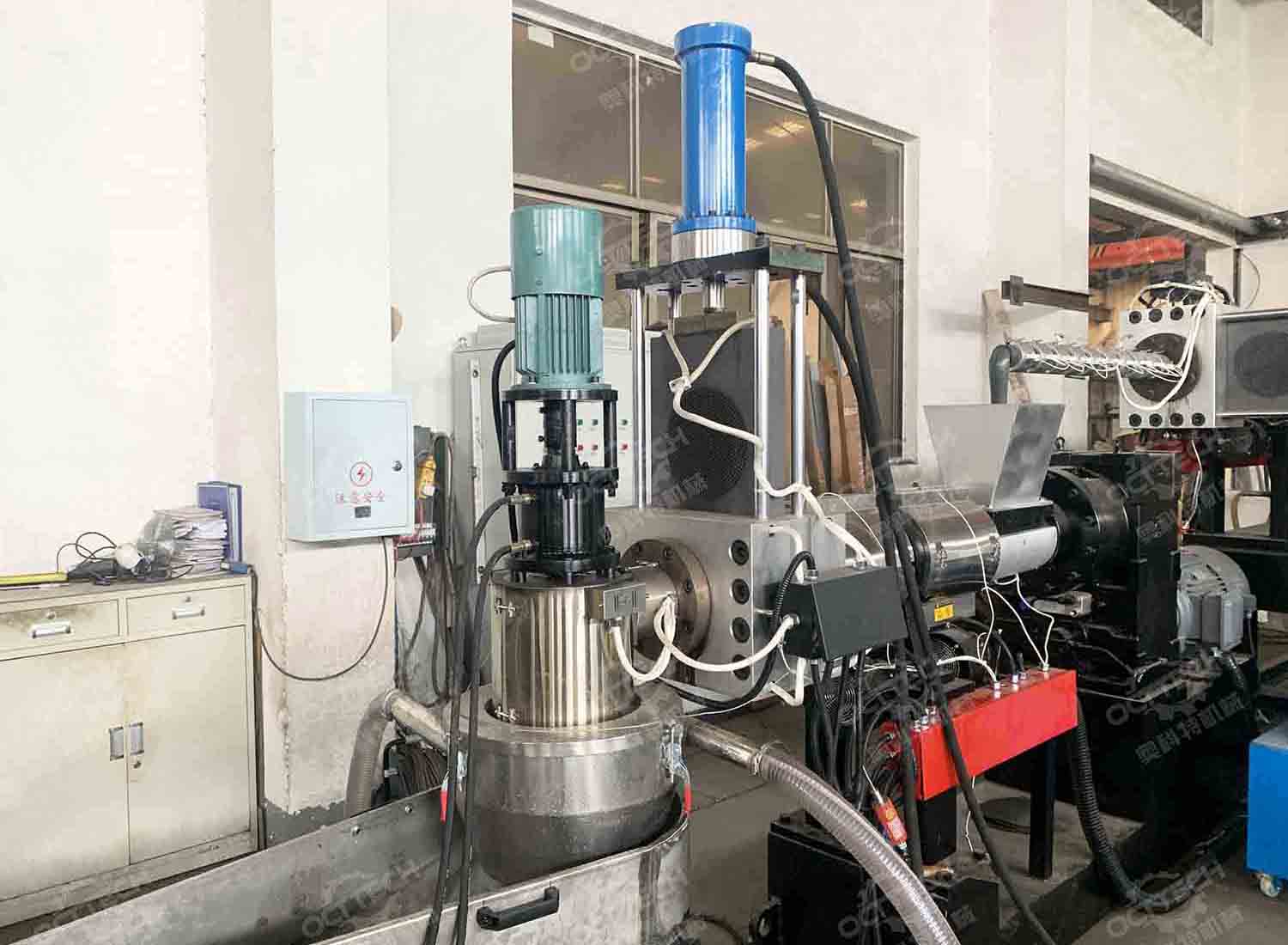

FILTER AND PELLETIZING SYSTEM
Plate type double station filter:
Special design (no-stopping screen change);
Different pelletizing systems for choice:Water-ring pelletizing system or Strand pelletizing system.

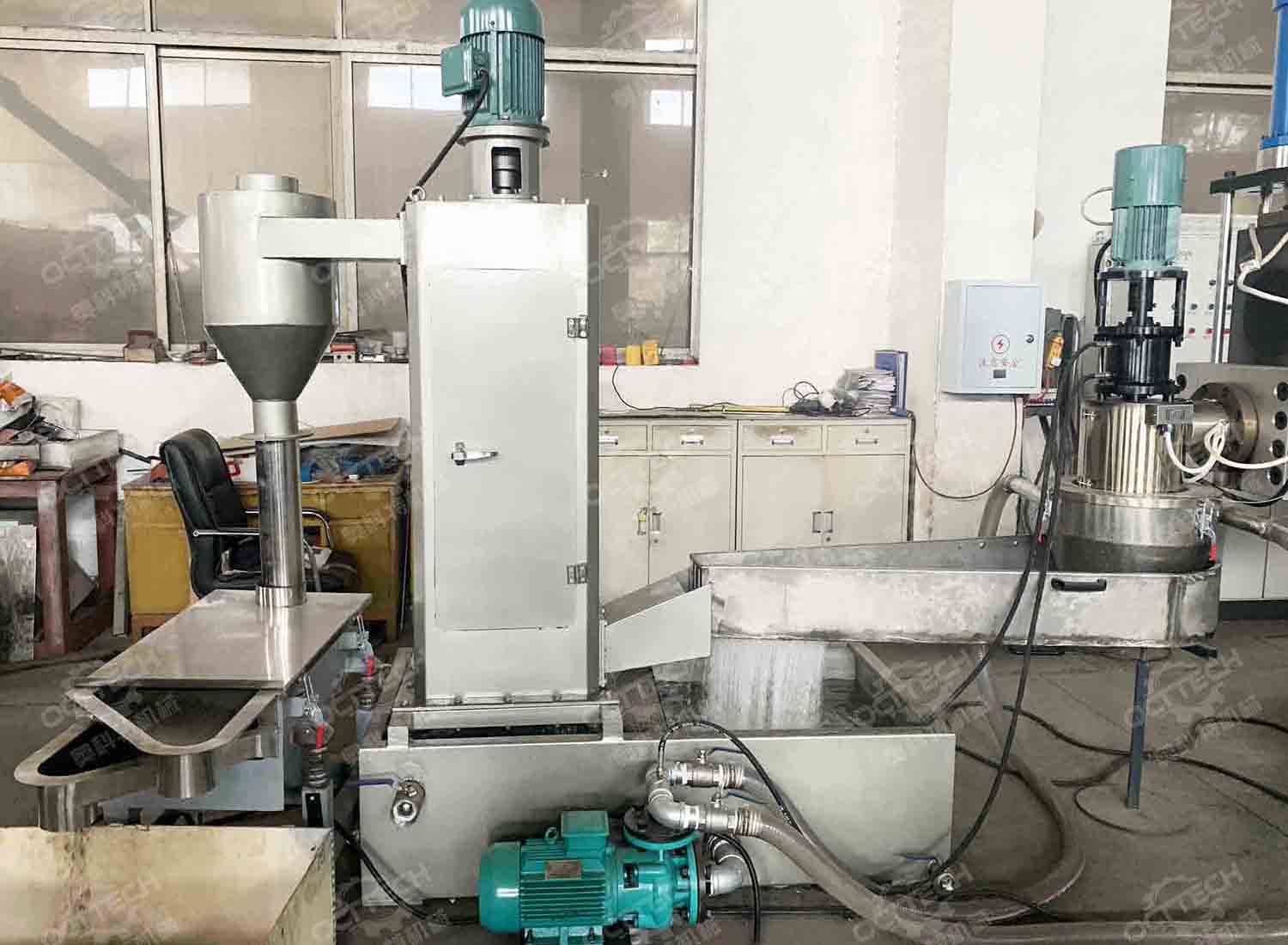

DEWATERING MACHINE
Centrifugal dryer
Made of SUS304 stainless steel

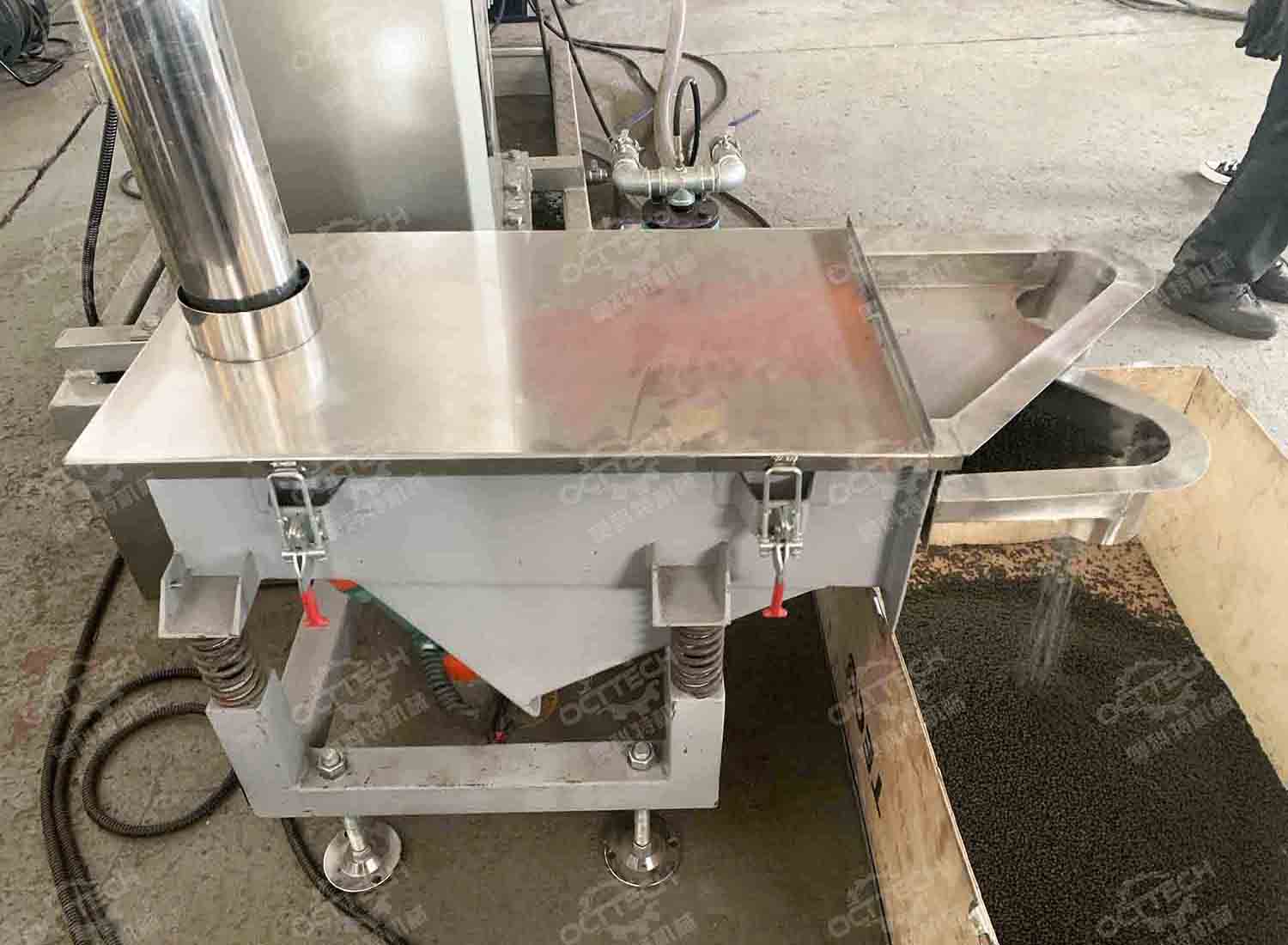

VIBRATION SCREEN
Sieve is made of Stainless steel;
selecting size of the granules.

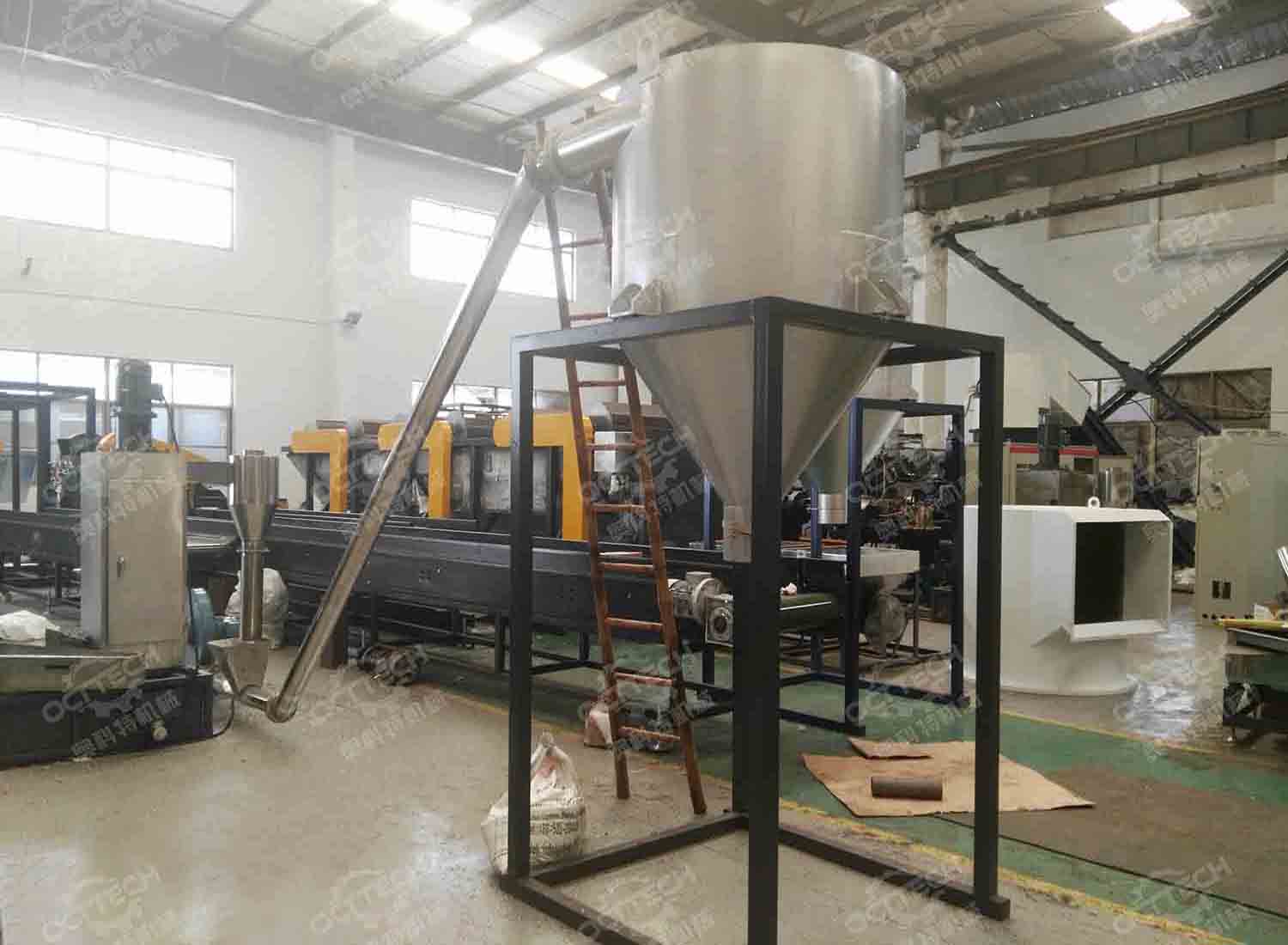

BLOWER AND STROAGE SILO
Blower remove the moisture further and send granules to the silo.
Silo Made of SUS304 stainless steel

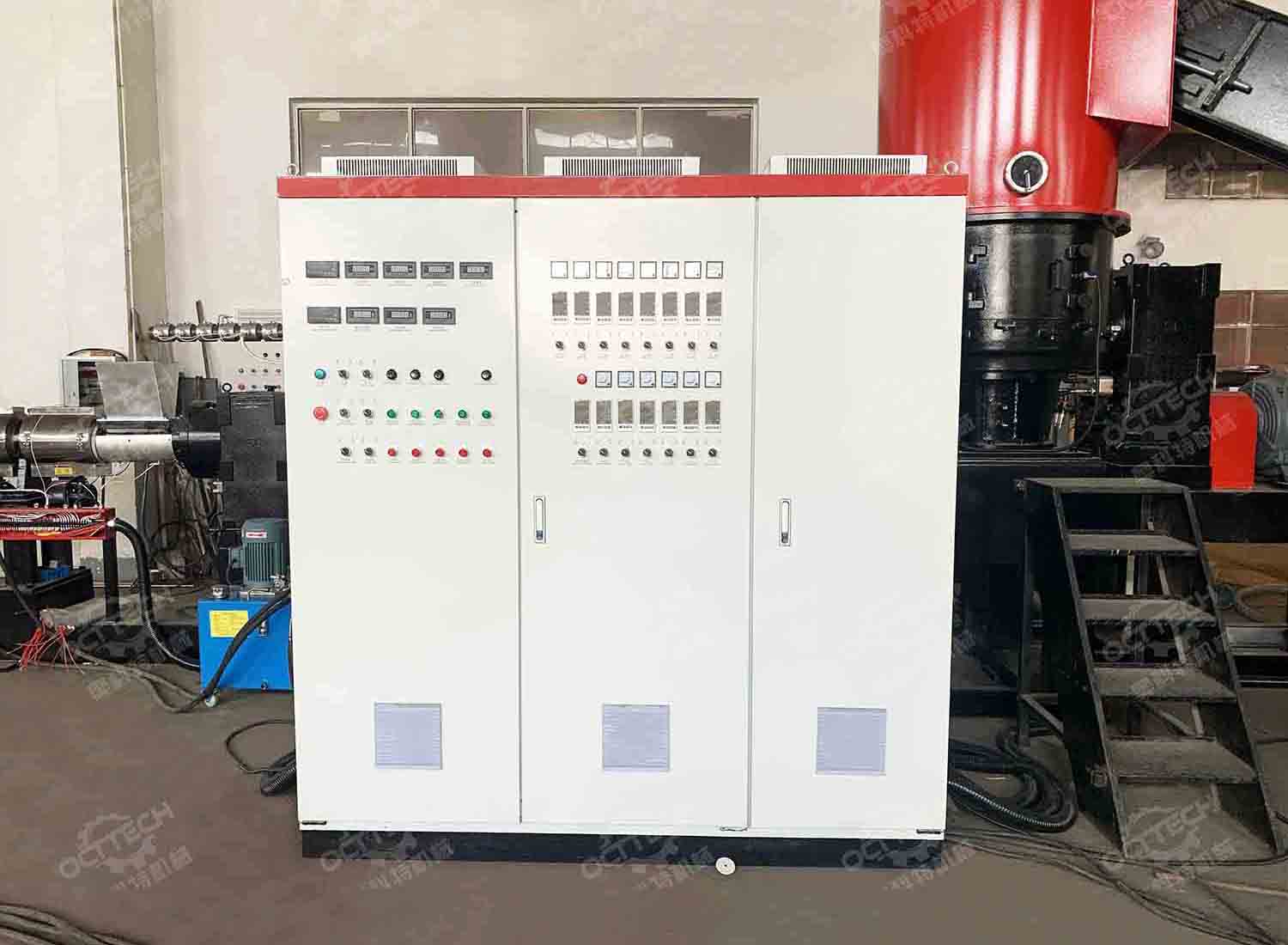

Control cabinet
Word famous brand electric components
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor

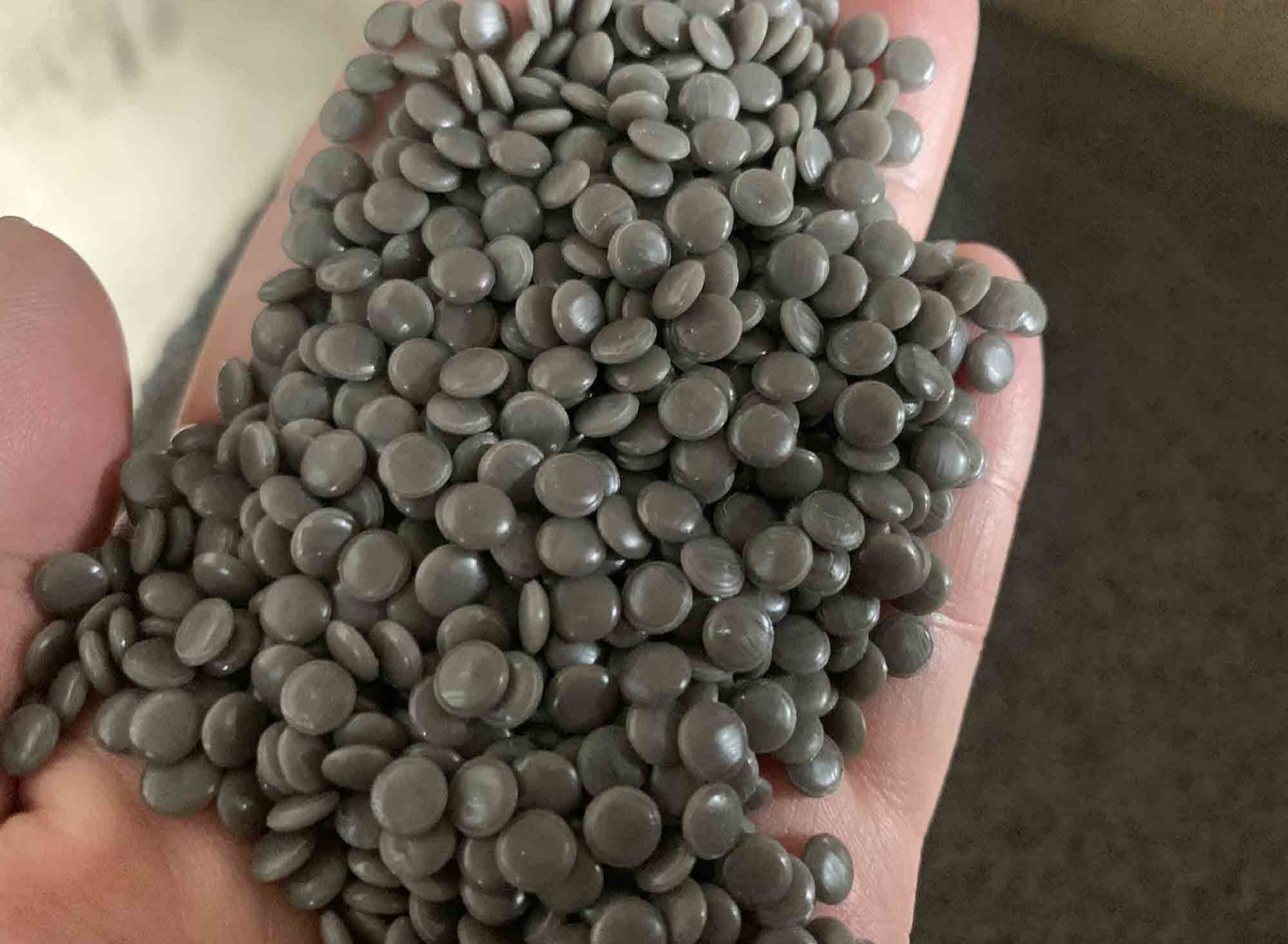

FINAL PELLETS
Pellets after the pelletizer
