HDPE PP pipe plastic extruder machine

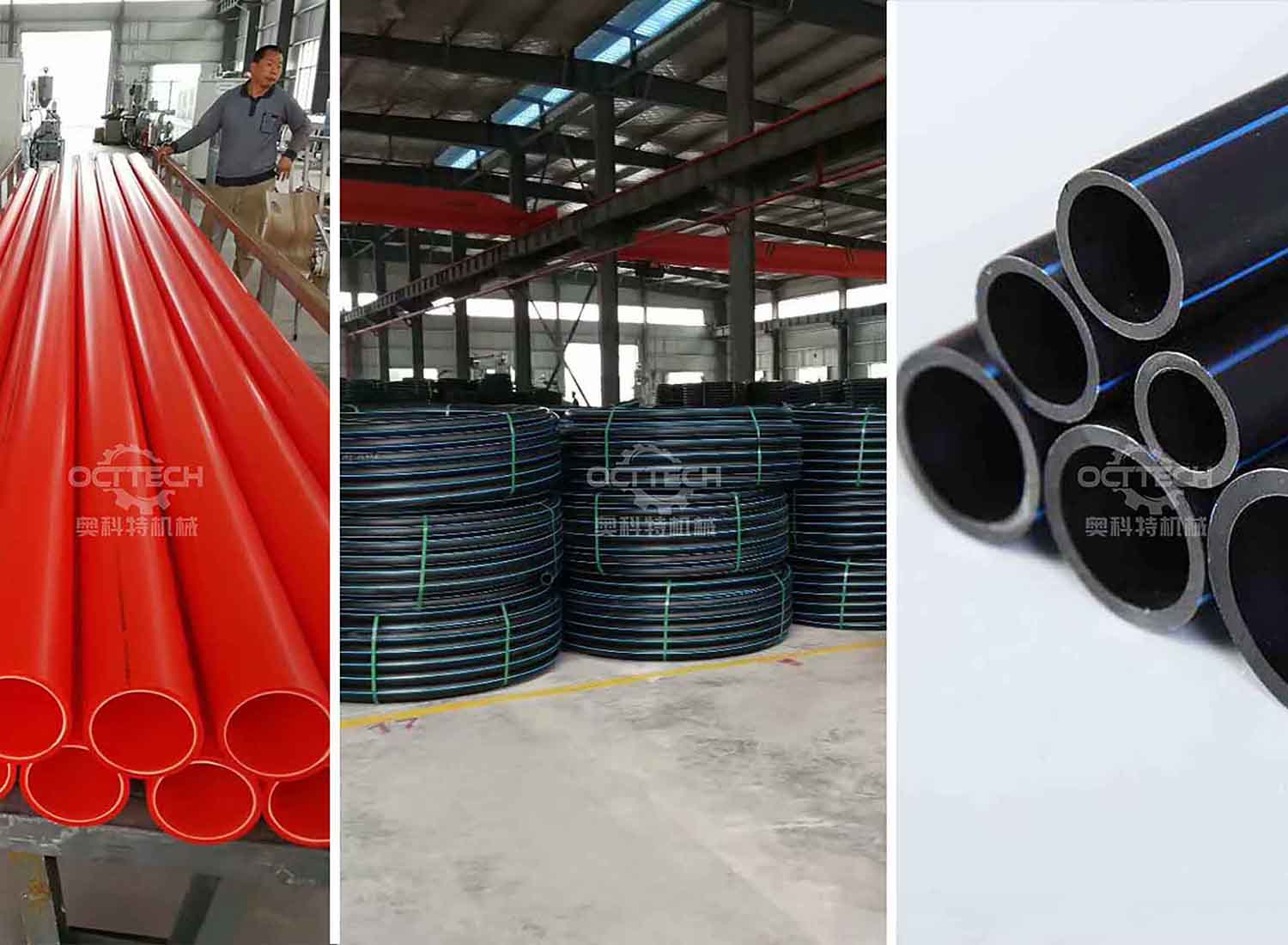

PE plastic pipe is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables etc.

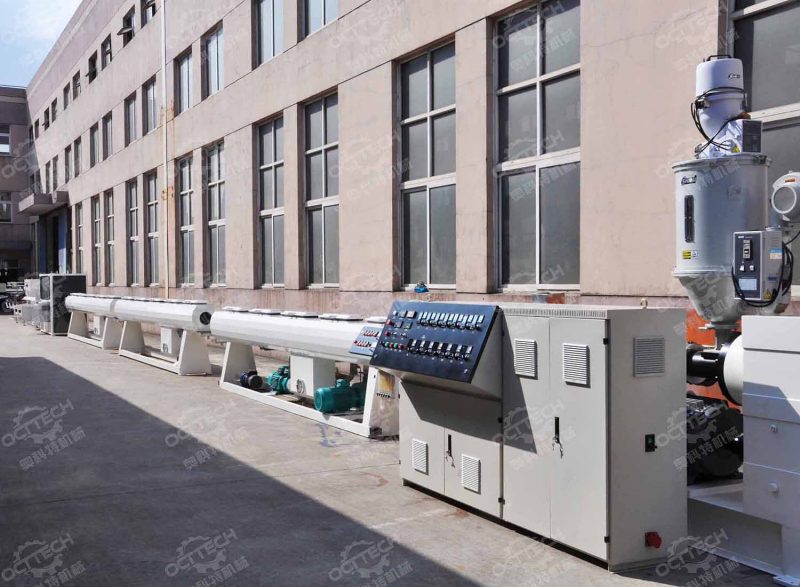

PE plastic pipe extrusion line consists mainly of vacuum calibration tank, haul-off unit, cutting unit, stacker etc.
Single screw extruder and haul-off unit have applied with A/C inverter;
Both vacuum tank and spray cooling water tank adopt automatic water temperature and level control and special independent filters
The haul-off unit includes two-claw type, three- claw type, four-claw type, six-claw type, eight-claw type…etc.
No-scraps cutting, saw cutting or planetary cutting can be choosed. The planetary cutting machine is fully automatic computer digital control.
It has such advantages of simple operation, reliable property.
Technical Parameters
| Model | Pipe diameter(mm) | Main extruder | Main power(kw) | Total power(kw) | Line length(m) |
|---|---|---|---|---|---|
| PE63 | 16-63 | SJ65/33 | 37 | 80 | 24 |
| PE110 | 75-110 | SJ65/33 | 55 | 110 | 30 |
| PE160 | 90-160 | SJ75/33 | 90 | 150 | 32 |
| PE110 | 75-110 | SJ65/33 | 55 | 110 | 30 |
| PE250 | 110-250 | SJ75/33 | 110 | 200 | 42 |
| PE315 | 160-315 | SJ90/33 | 160 | 240 | 44 |
| PE400 | 200-400 | SJ90/33 | 185 | 300 | 50 |
| PE500 | 250-500 | SJ120/33 | 280 | 350 | 56 |
| PE630 | 315-630 | SJ120/33 | 280 | 480 | 56 |
| PE800 | 400-800 | SJ150/33 | 315 | 550 | 72 |
HDPE PP pipe plastic extruder machine Working Flow
Material Vacuum feeding → Hopper dryer → Main extruder → Color extruder →Mould→ Vaccum calibration tank → Spray cooling tank → Meter-measure printer →Haul off machine → Cutting machine(or pipe winder machine)→ Stacker
HDPE PP pipe plastic extruder machine Detail
Heating ring material:Cast aluminum
Die mouth , mandril :40Cr
Calibration copper sleeve :Tin bronze
Length: 6000mm
Spray water cooling
Inventer control the speed,and equip with two worm gear reducer
Discharging by cylinder
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
