Drip irrigation tape extruder machine

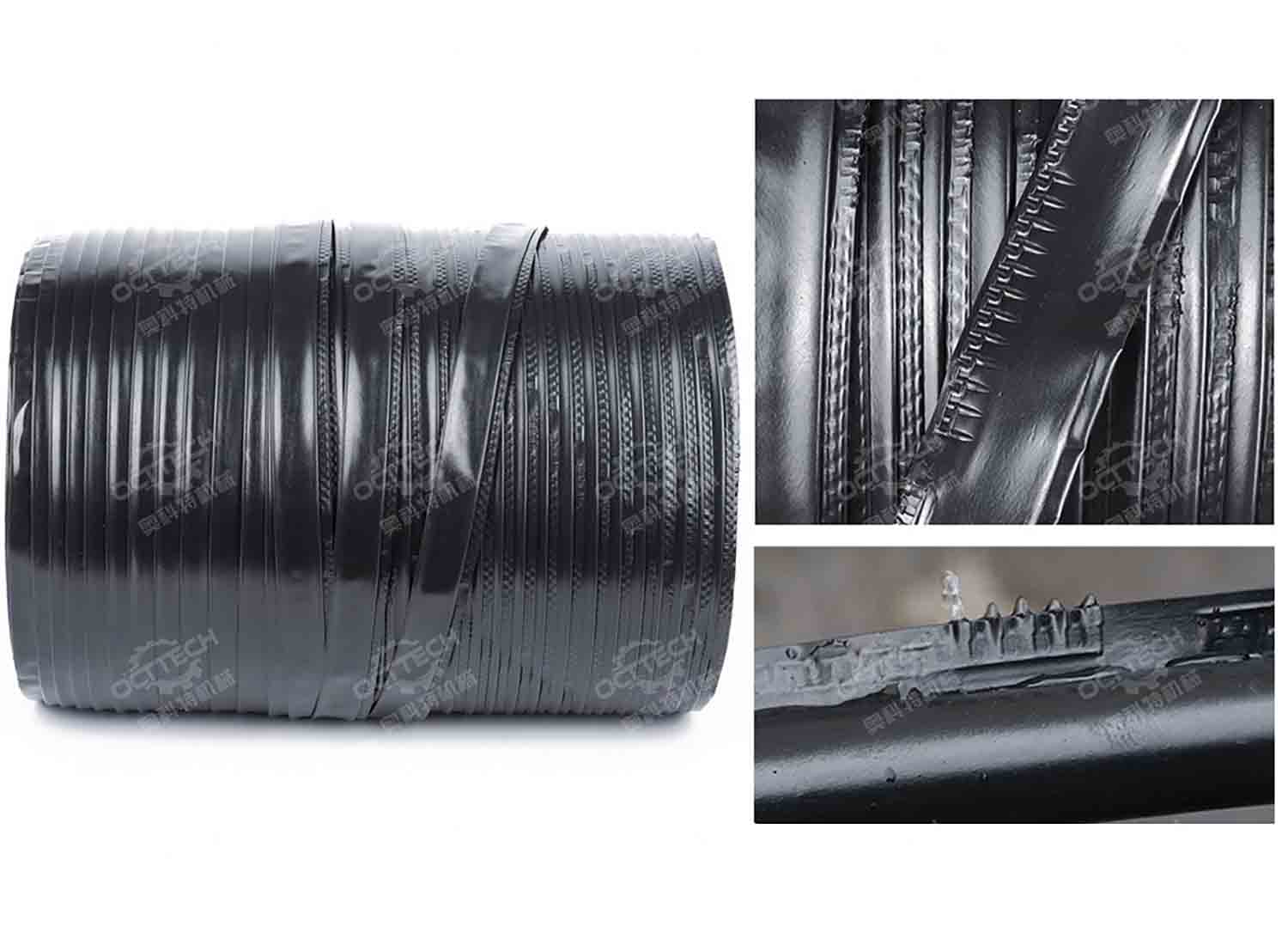

Drip irrigation tape is currently an effective water-saving irrigation method in arid and water deficient areas, and can be combined with fertilization to increase fertilizer efficiency by more than double.
It can be used for irrigation of fruit trees, vegetables, cash crop and greenhouse. It can also be used for irrigation of cotton, Chinese herbal medicine, watermelon, field vegetables and other field crops in dry places. Drip irrigation tapes can be bent and laid around ridges, making operation convenient.
Technical Parameters
| Output | Double outlet,each line speed is 30m/minute,so whole line speed is 60-70 m/minute. |
|---|---|
| Diameter of the drip irrigation tape | 16-18mm |
| Thickness of the drip irrigation tape | 0.16/0.18/0.20mm.(Normal one is 0.18) |
| Distance of the dripping noddle | 100/200/250/300/400/500/750mm(For choose) |
| Raw material | Proportion mixing HDPE, LDPE and LLDPE, our company offer formula for free |
| Drip flow rate | 1.0-4.0L/h,need customer to make sure. |
| Size of the final coiled tape | Diameter is 500 mm, height is 500 mm,total length is 2000 m. |

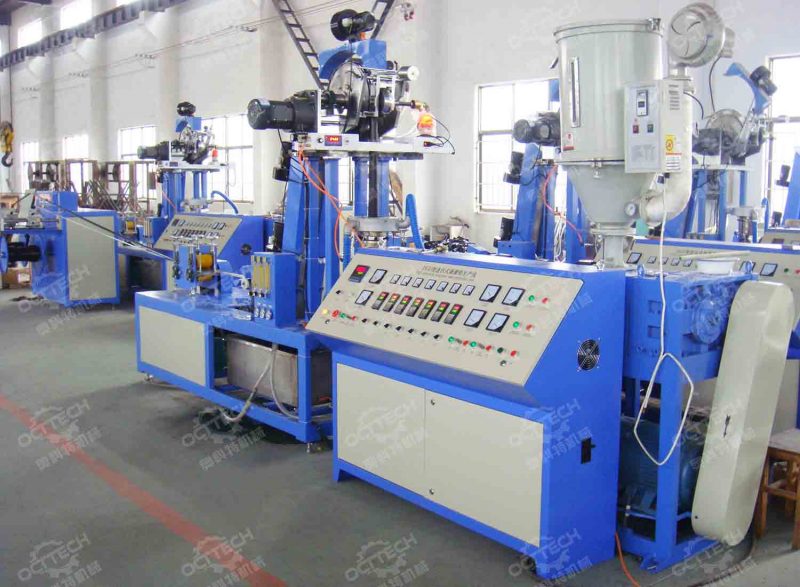

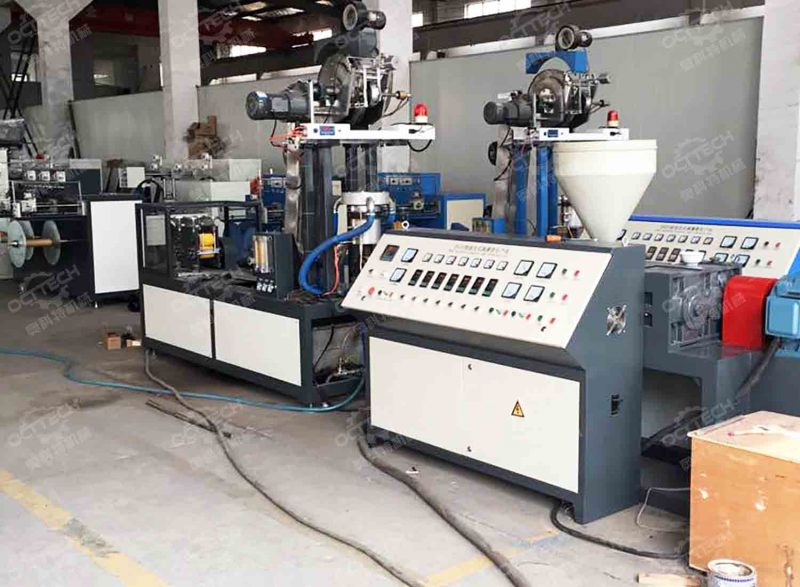

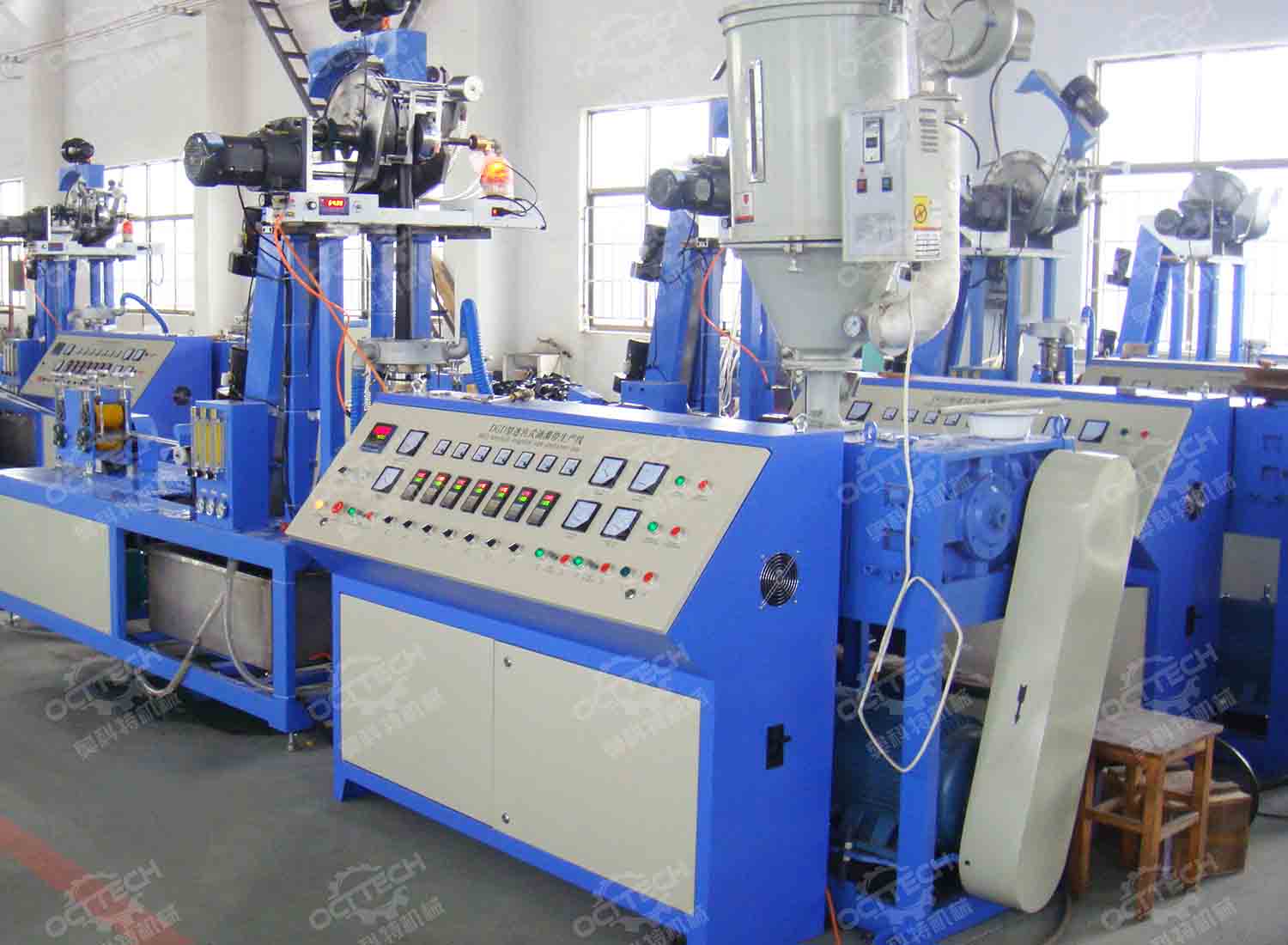

Drip irrigation tape extruder machine
Extruder machine → Mould and cooling unit → Haul off → Coiler machine → control cabinet

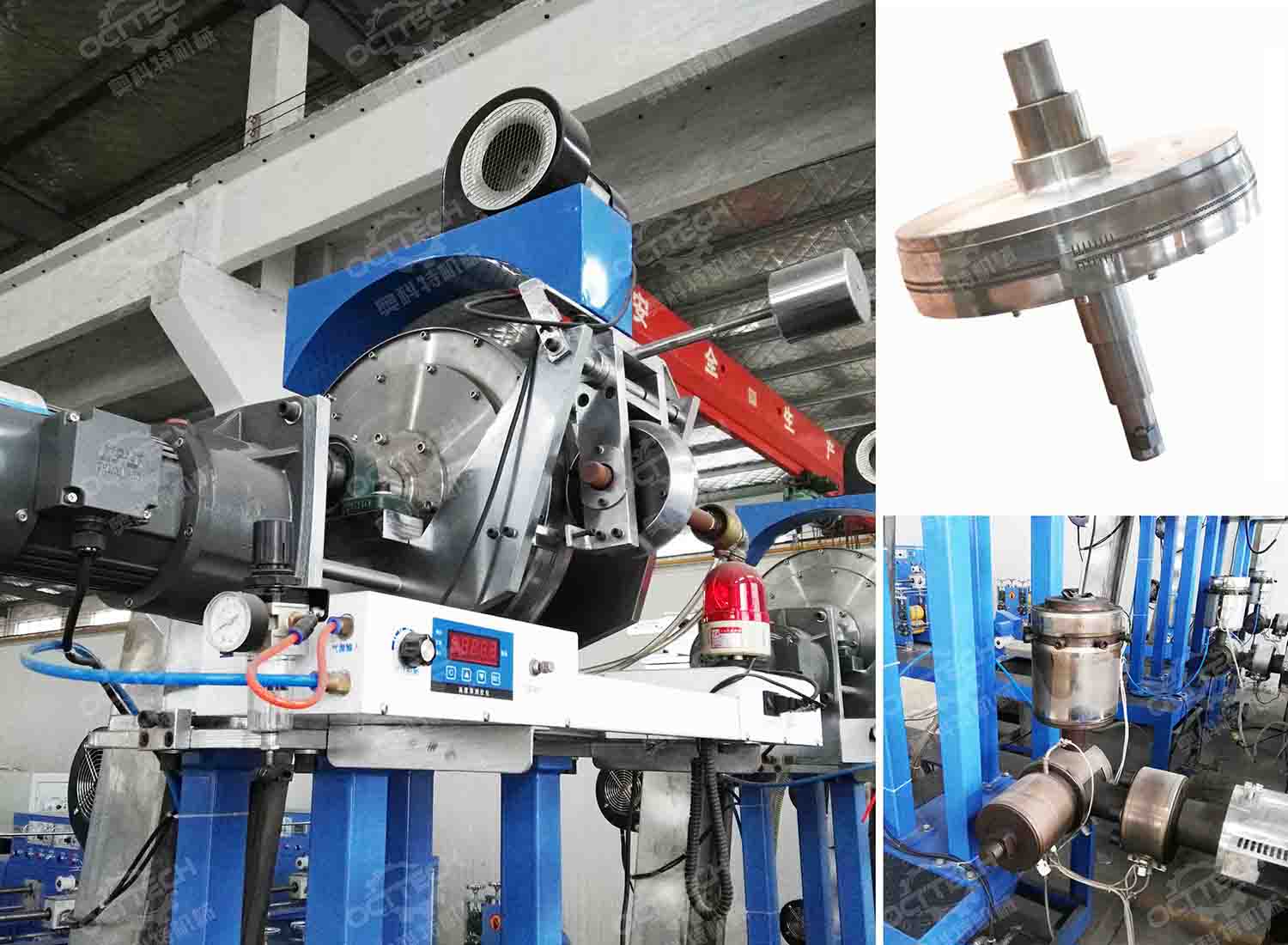

Drip irrigation tape extruder machine Detail
Heating ring material:Cast aluminum
Forming mould diameter:Ø477mm, material:2Cr13
Space between:300mm,Drip flow rate:3 L/h

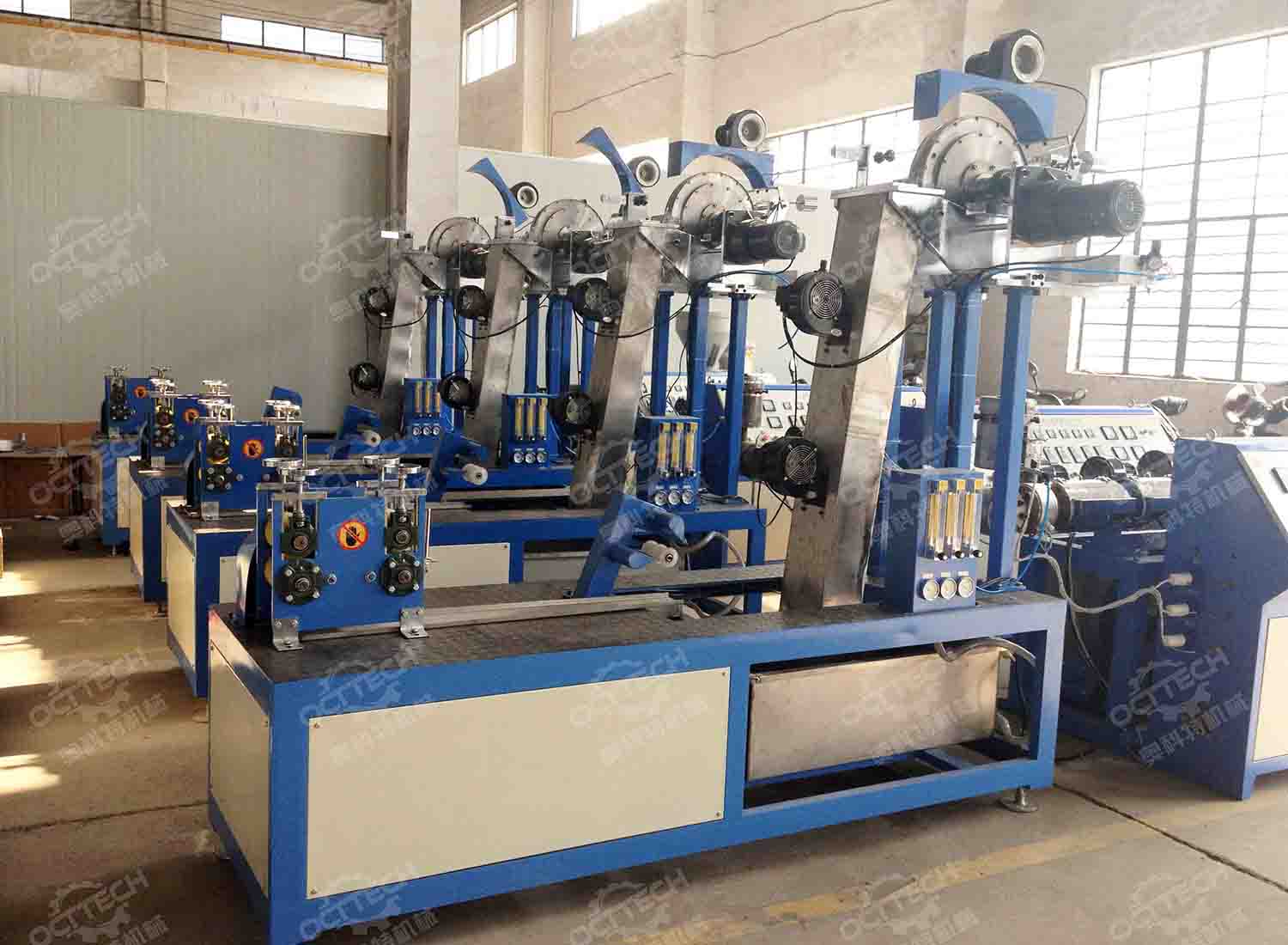

Roller haul off,haul off speed:0-40m/minute
Linear velocity:0~40M/sec
Power:3×10N.M
Length of each roll:500~2000m
service advantage
professional installation
Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.
Quick response
The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.
user training
Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
