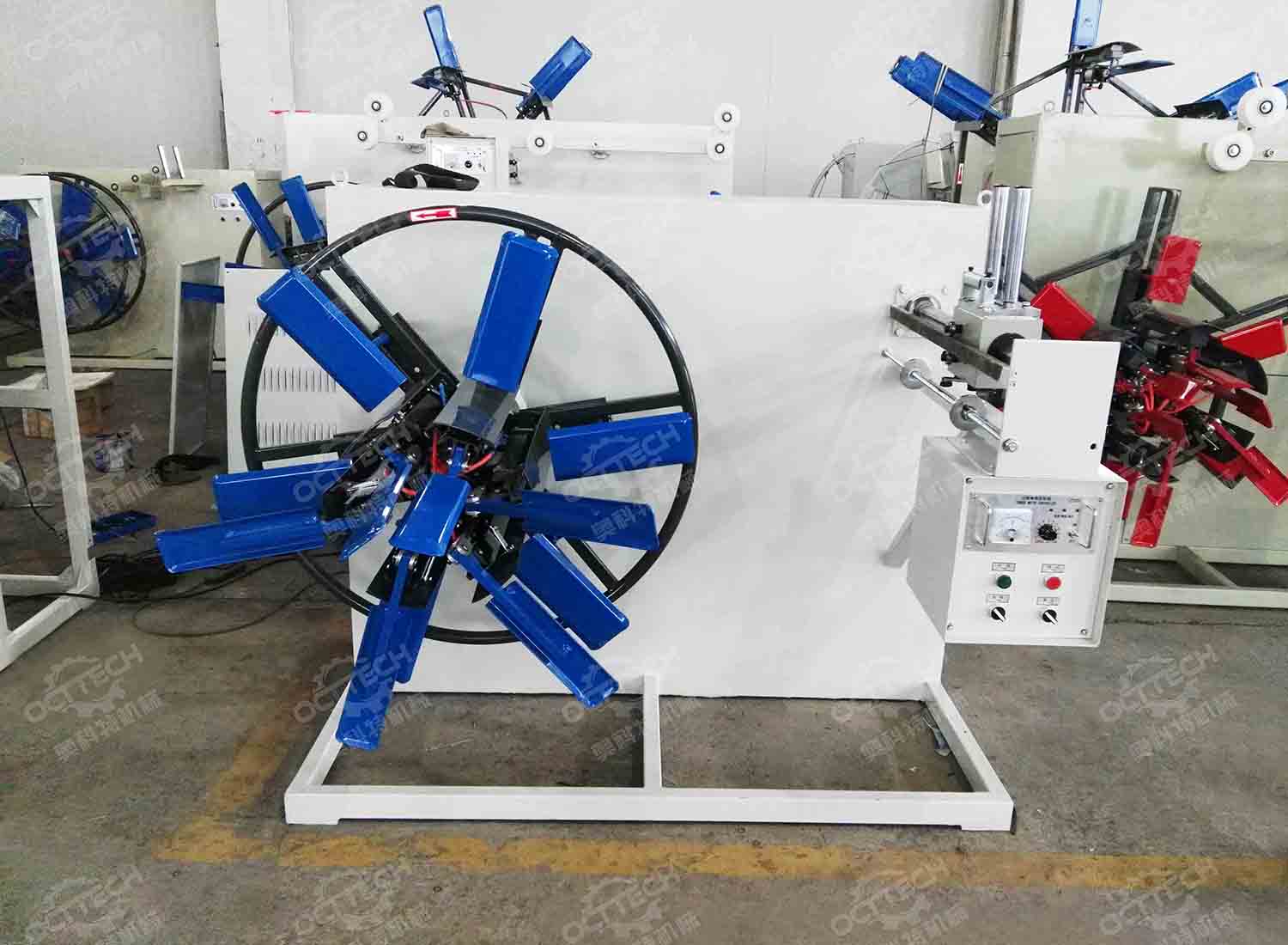

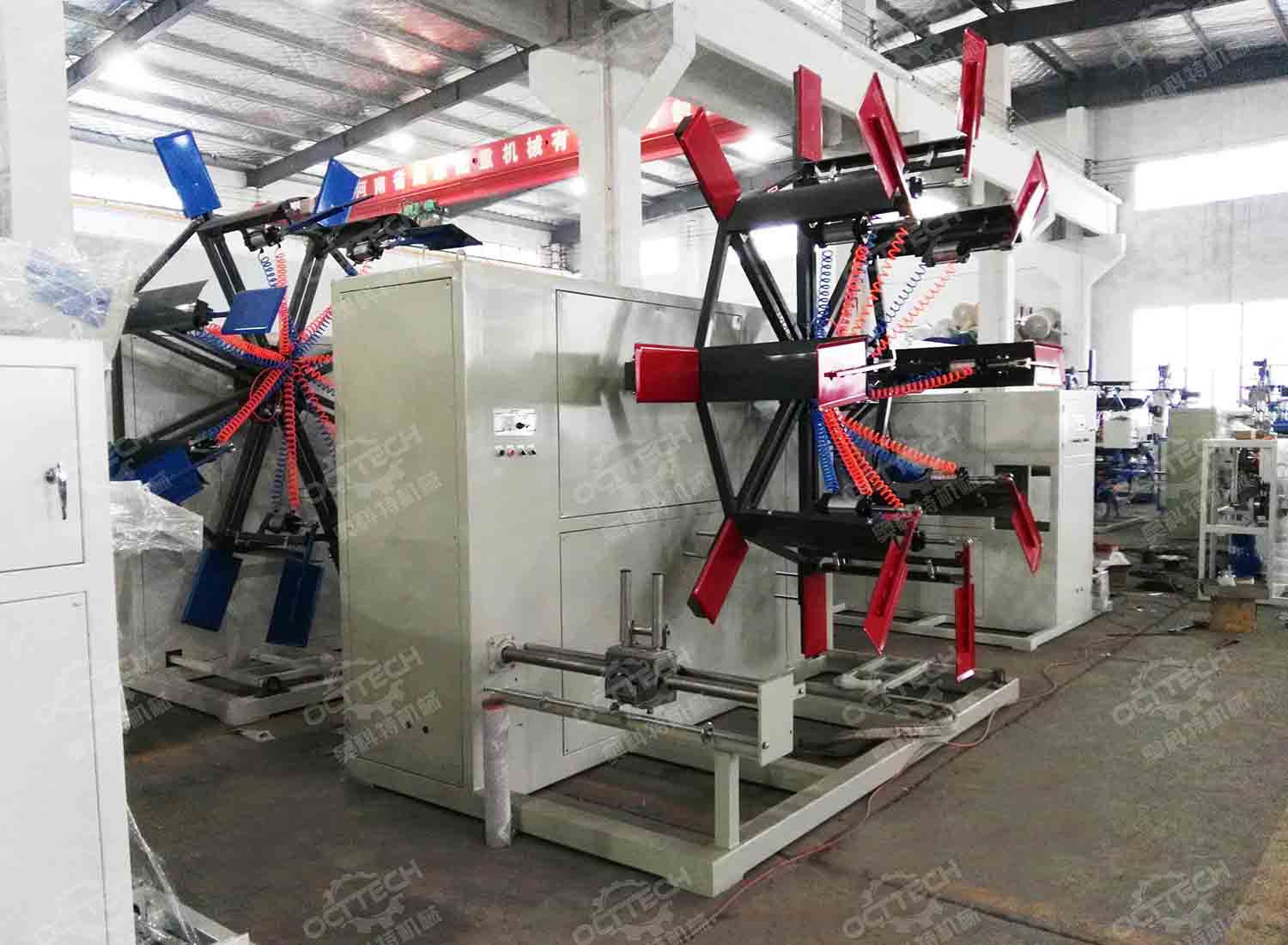

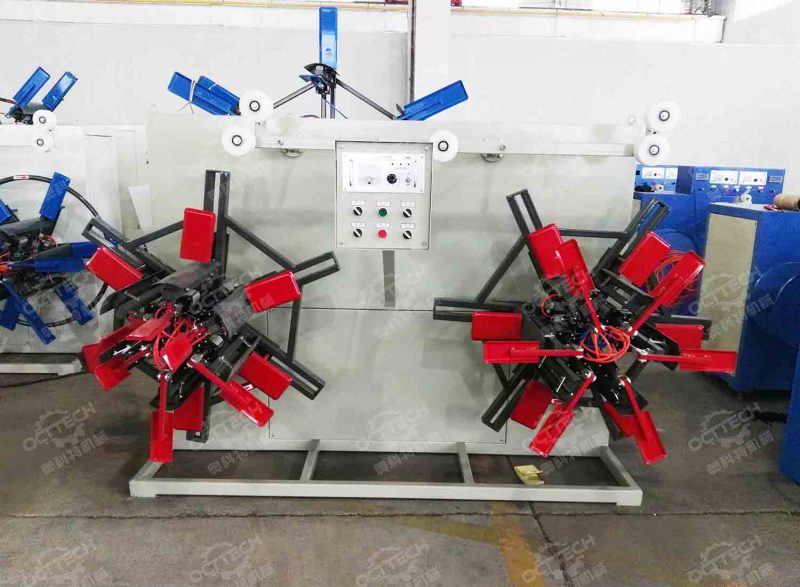

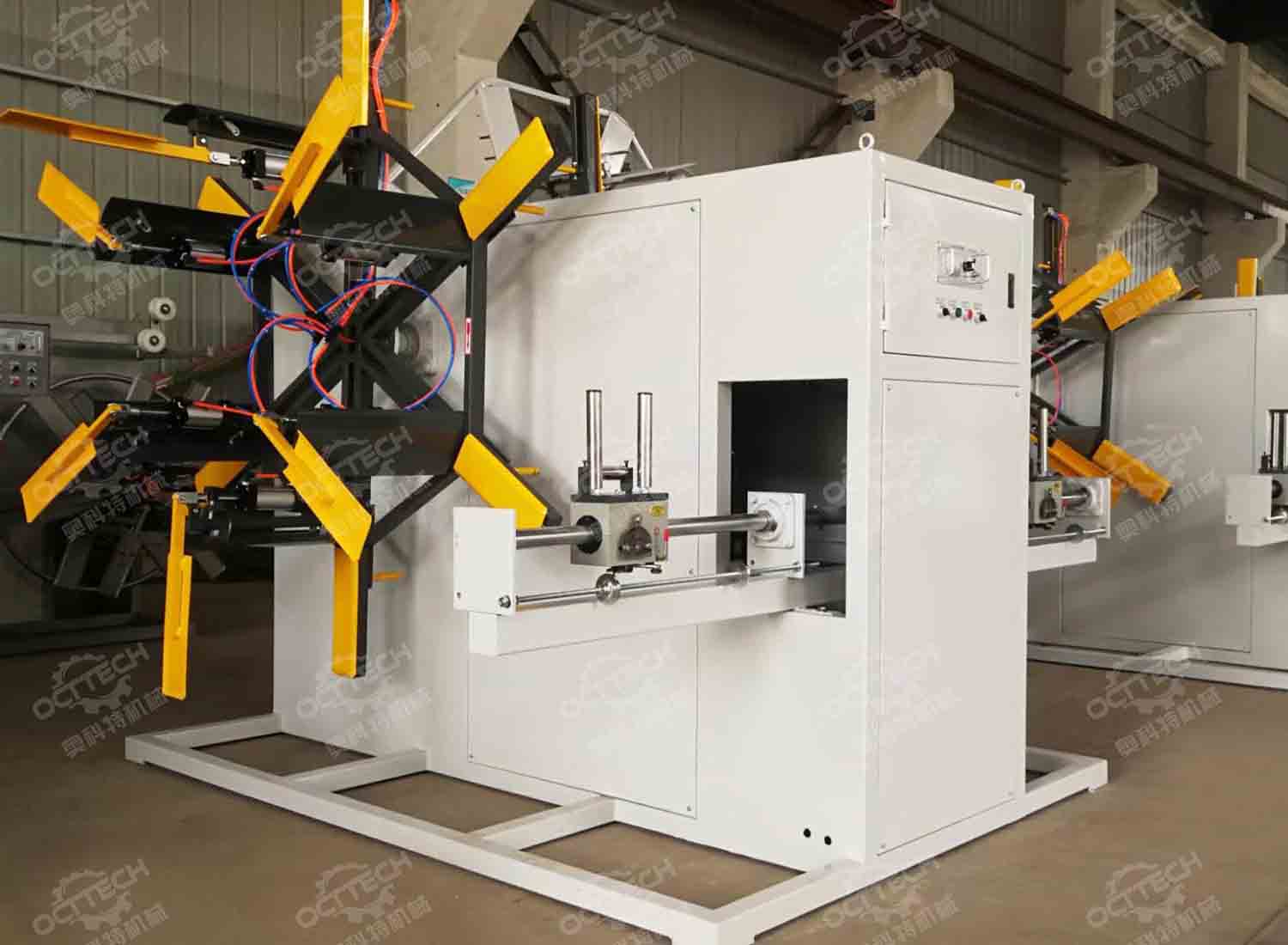

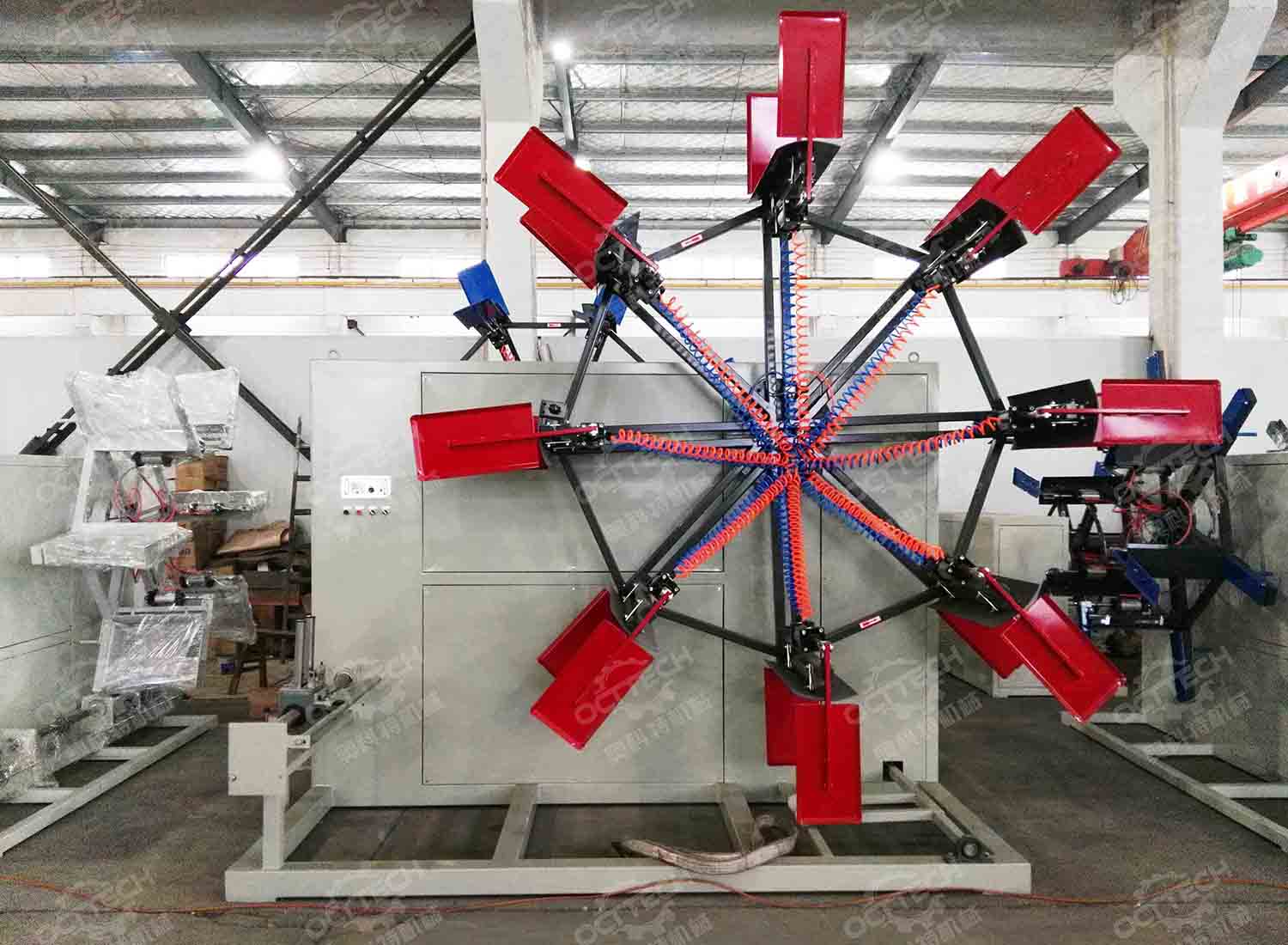

Double station winder machine

Single and double station winder machine is suitable for winding plastic wire,middle and small plastic soft pipes.It is used with extruder,calibration table and haul off machine.

Model	Inner diameter of coil(mm)	Outside diameter of coil(mm)	Coil width(mm)	Winding speed(m/min)	Pipe diameter(mm)	Torque motor(N.M)
SPS32 double	480-800	800-1280	230-370	1-20	Φ16-32	10
SPS63 double	600-1200	1400-2000	360-560	1-20	Φ32-63	25
SPS110 single	2500-3500	–	700	0.5-5	Φ63-110	40

Model

Inner diameter of coil(mm)

Outside diameter of coil(mm)

Coil width(mm)

Winding speed(m/min)

Pipe diameter(mm)

Torque motor(N.M)

SPS32 double

480-800

800-1280

230-370

1-20

Φ16-32

SPS63 double

600-1200

1400-2000

360-560

1-20

Φ32-63

SPS110 single

2500-3500

–

700

0.5-5

Φ63-110

service advantage

professional installation

Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.

Quick response

The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.

user training

Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
