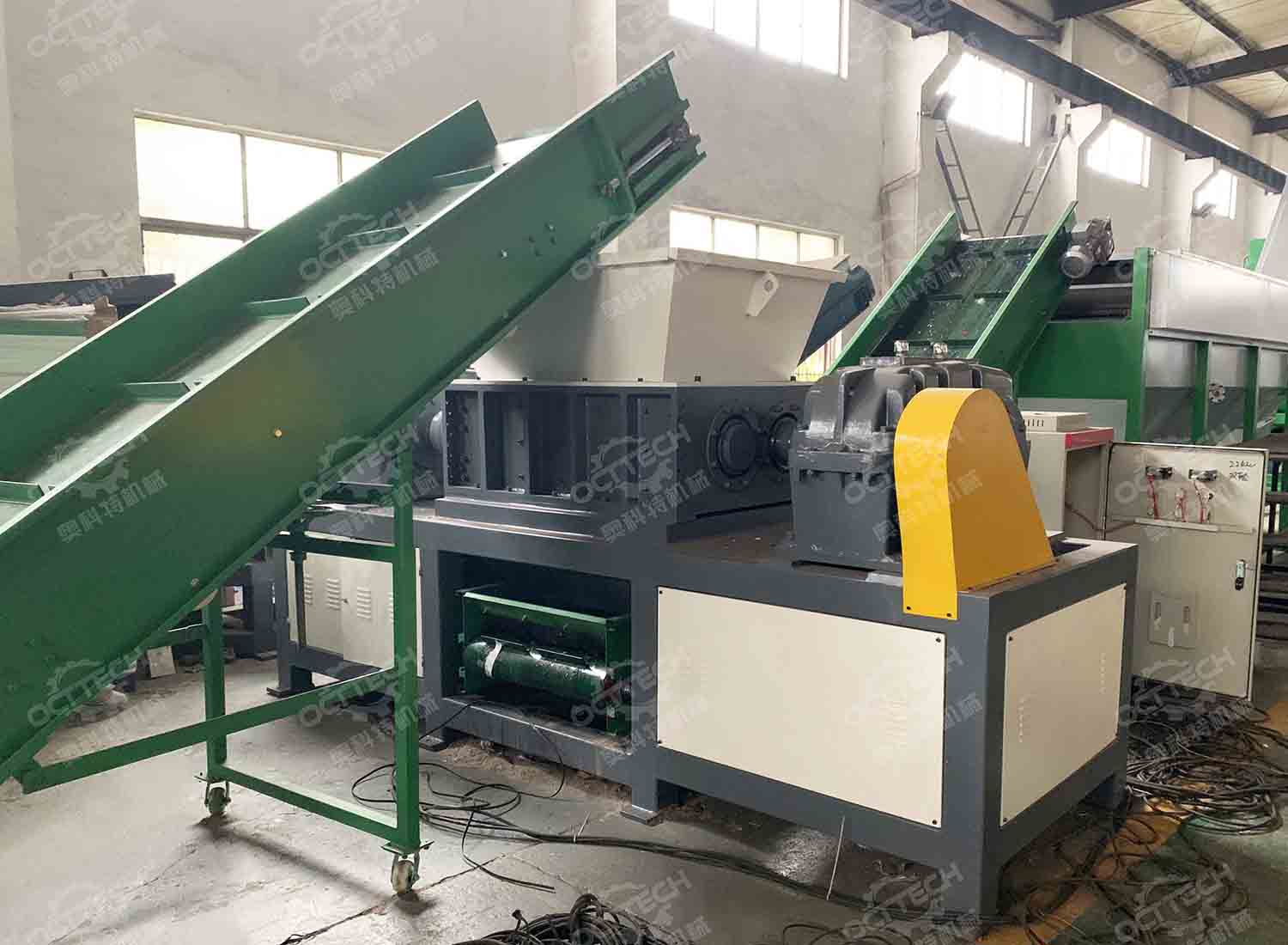

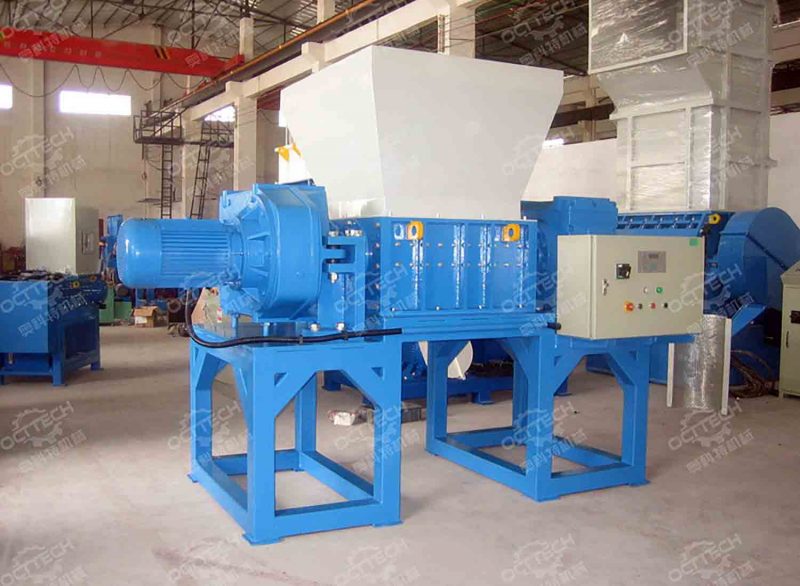

Double shaft shredder machine

The double shaft shredder adopts microcomputer (PLC) automatic control, with start, stop, reverse, and overload automatic reverse control functions. It has characteristics such as low speed, high torque, and low noise.Suitable for tearing thick and difficult to break materials such as computer hard drives, small engineering plastics,household appliances etc.

Features.
1.Motor and reducer connected by belt pulley,speed decreasing smoothly to protect motor and reducer.
2.Drive system adopts coupling units,good to adjust reverse force and total structure stability.

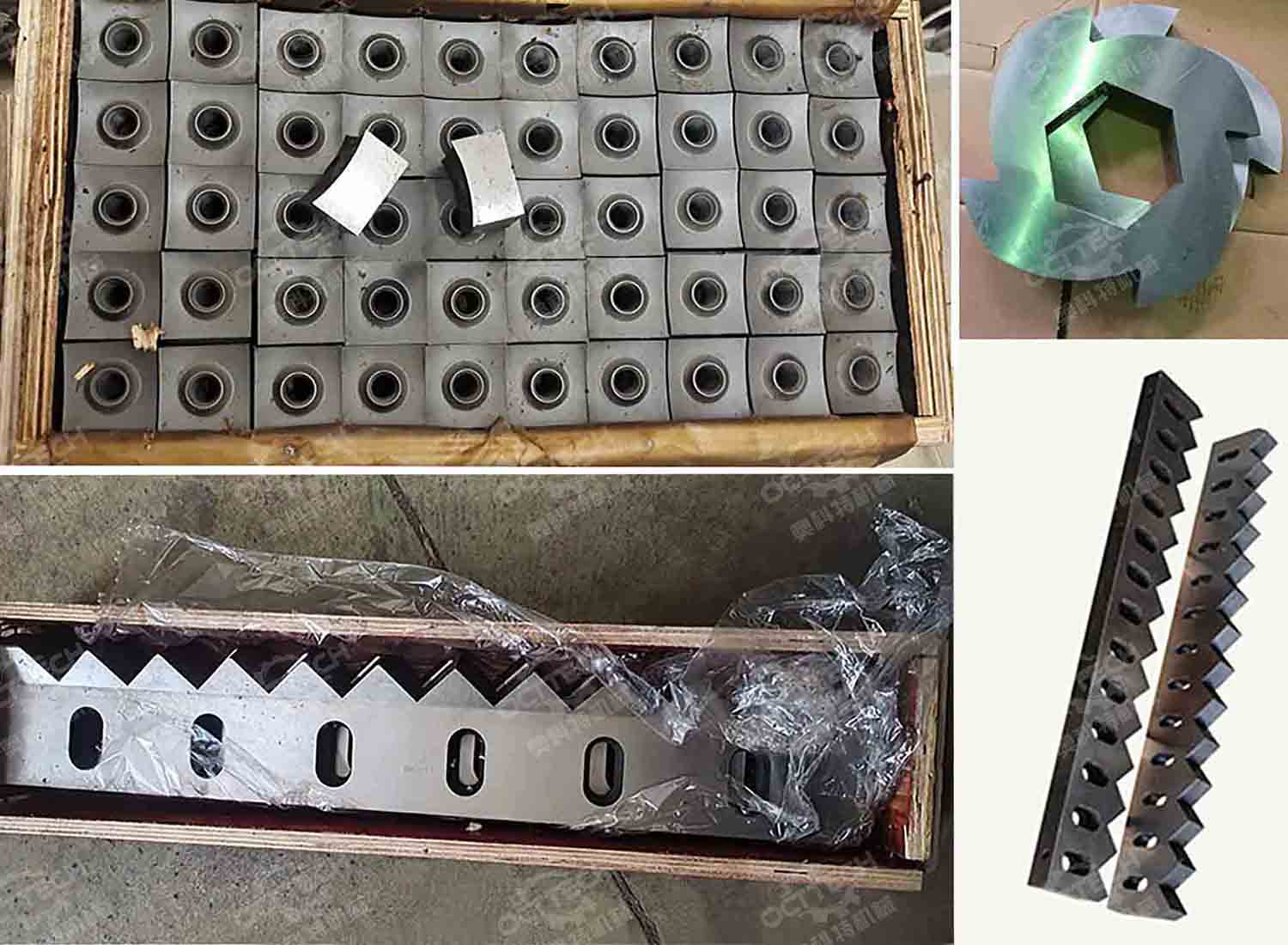

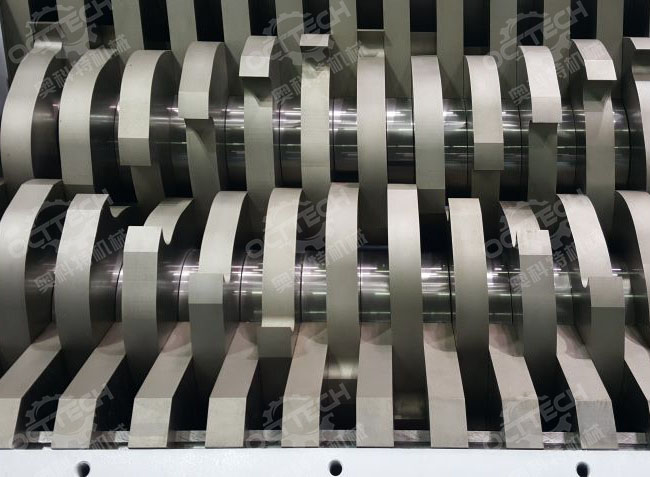

3.Knife thickness and design could be changed accordingly for different material condition.
4.Electrical system adopts Siemens PLC for easy,reliable and safe control.

Application:
1.Plastic barrel,plastic bottle
2.Metal drum,metal cans
3.Tire,bumper,roadblock,battery
4.Washer,fridge and other waste home appliances.
5.Carcass

Model	Motor power(KW)	Rotating diameter(mm)	Rotating blades Qty.(pcs)	Fixed blades Qty.(pcs)	Capacity(kg/h)
DS600	18.5*2	320*2	12	3	800
DS800	22*2	320*2	16	3	1000
DS1000	30*2	400*2	20	6	1500
DS1200	37*2	400*2	24	6	2000
DS1500	45*2	450*2	24	6	3000
DS2000	55*2	450*2	28	6	5000

Model

Motor power(KW)

Rotating diameter(mm)

Rotating blades Qty.(pcs)

Fixed blades Qty.(pcs)

Capacity(kg/h)

DS600

18.5*2

320*2

800

DS800

22*2

320*2

1000

DS1000

30*2

400*2

1500

DS1200

37*2

400*2

2000

DS1500

45*2

450*2

3000

DS2000

55*2

450*2

5000

service advantage

professional installation

Octtech has a professional equipment installation team with professional training and years of service experience. With excellent skills and tools, Octtech can provide fast and reliable lithium battery mixer installation services.

Quick response

The normal operation of the equipment is very important to your work efficiency, so we arrange local professional service technicians all over the country, arrive at the scene within 2 hours, and provide the optimal maintenance solution.

user training

Octtech will rely on its own resource advantages to provide high-quality training services. Let you firmly grasp how to operate the equipment proficiently; understand some basic equipment daily maintenance knowledge.
